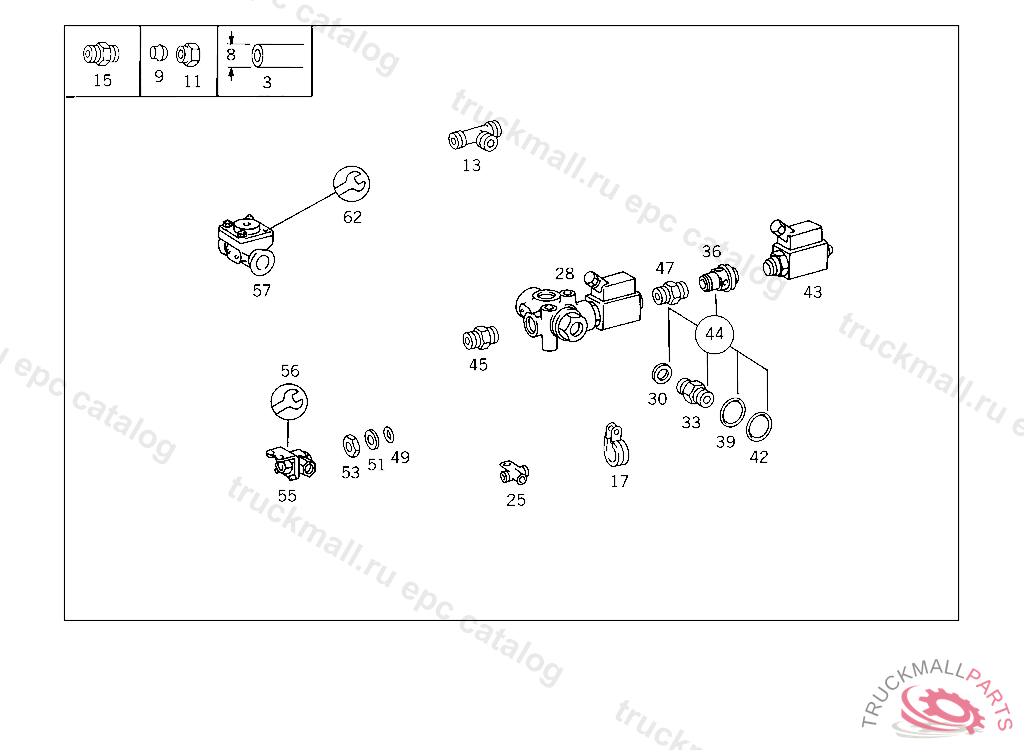

Поз.
Артикул
Описание
3
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
9
GLAND , Replaced By: A0019901967
9
SEAL CONE LINE CONNECTION
11
ADAPTER FITTING
13
T-FITTING
15
FITTING , Replaced By: A0039978972
15
FITTING , Replaced By: A0029905971
15
FITTING (PARTS KIT),LINE RUPTURE
17
CLAMP , Replaced By: N916016008201
17
CLAMP LINE MOUNTING
25
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
28
VALVE (THREE-WAY SOLENOID VALVE)
30
SEAL RING ,006779
33
VALVE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
36
VALVE
39
SEAL RING BRAKE VALVE
42
SEAL RING
43
MAGNET
44
REPAIR KIT
45
FITTING SHUTTLE VALVE,CONNECTION: "20"
47
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
49
O-RING CHECK VALVE TO AIR RESERVOIR
51
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
53
NUT CHECK VALVE TO AIR RESERVOIR
55
VALVE , Replaced By: A0004299244
55
VALVE
56
REPAIR KITTO 000 429 40 44
57
VALVE (THROTTLE CHECK VALVE)
62
REPAIR KIT
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER LINE MOUNTING
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304014008001
999
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
999
SEAL RING ,006779
999
SEAL RING LINE CONNECTION
999
NUT , Replaced By: N304032008006
999
NUT TACHOGRAPH TO BRACKET
999
SCREW , Replaced By: N304017005011
999
LOCK RING TORSION BAR
999
WASHER REDUCTION GEARING TO BRACKET
999
ADHESIVE FOIL GUIDE SIGN
999
GUIDE SIGN BUS STOP BRAKE
999
GUIDE SIGN BUS STOP BRAKE, UP TO IDENT NO. 022753 EXCEPT FOR 022489,022540,022563,022575,022584,022604,022616,022636,022641,022646,022730.
999
SEALING CORD BRAKE POWER REGULATOR
999
