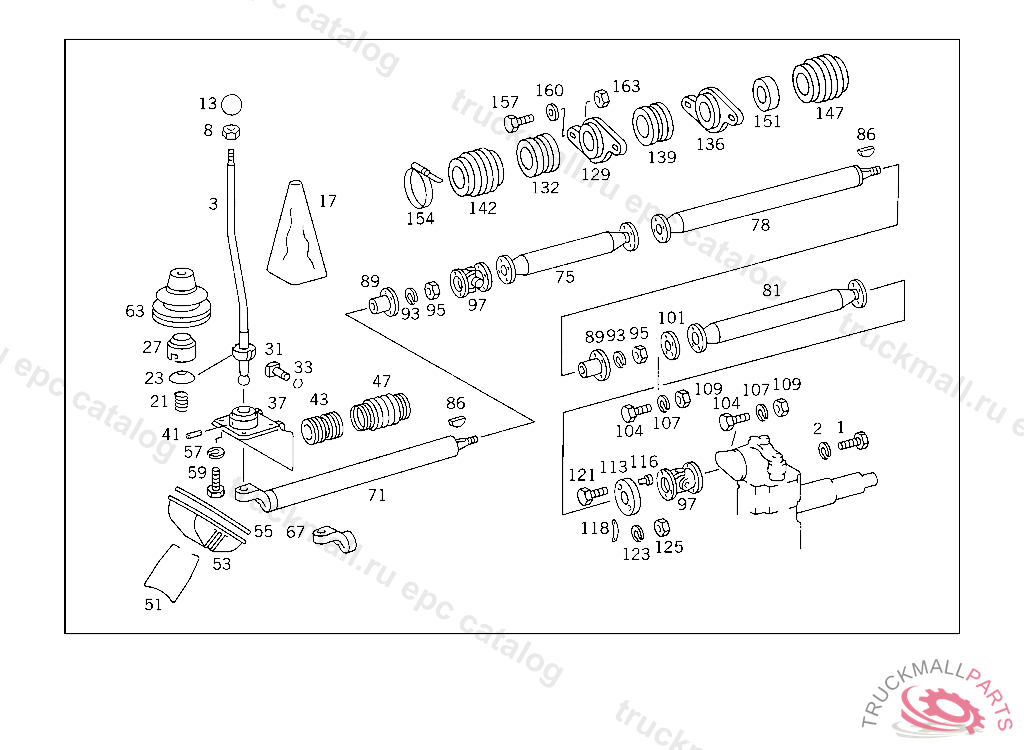

Поз.
Артикул
Описание
1
SCREW APPARATUS SUPPORT TO FRAME M 14X45
2
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
3
SHIFT LEVER ,004750
3
SHIFT LEVER
8
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
13
HANDLE (GEARSHIFT LEVER KNOB)
17
BOOT SHIFT LEVER,004184
17
BOOT SHIFT LEVER,004184
21
SPRING SHIFT LEVER TO CASE
23
SPHERICAL PIECE GEARSHIFT LEVER LOWER PART,D 203092
27
COVER
31
SLIDING BLOCK , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
33
SNAP RING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
37
BEARING BRACKET SHIFT CASE
41
GROOVED PIN SHIFTING DOME,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
43
BUSHING SHIFTING ROD TO BRACKET
43
BUSHING , Replaced By: A3572680050
47
BOOT SHIFTING TUBE
51
BRACKET BEARING BRACKET
53
COVER BEARING BRACKET
55
GASKET BEARING BRACKET
57
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
59
SCREW BRACKET TO CROSS CONNECTION STRUT
59
SCREW , Replaced By: N304017008034
63
BOOT
63
BOOT
71
SHIFTING ROD FRONT,004750
71
SHIFTING ROD FRONT,004749
71
SHIFTING ROD , Replaced By: A3072601533
81
SHIFTING ROD BEHIND REAR AXLE
81
SHIFTING ROD , Replaced By: A3072602133
97
JOINT SHIFTING ROD TO SHIFTING ROD
97
JOINT , Replaced By: A0002681989
97
JOINT SHIFTING ROD TO SHIFTING ROD
97
JOINT , Replaced By: A0002681889
101
SPACER WASHER5 MM
101
SPACER WASHER3 MM
101
SPACER WASHER2 MM
104
SCREW SHIFTING TUBE TO TRANSMISSION
107
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
109
NUT , Replaced By: N304032008006
113
CONNECTOR FRONT SHIFTING ROD TO REAR SHIFTING ROD
116
BUSHING
118
LOCK FRONT SHIFTING ROD TO REAR SHIFTING ROD
121
SCREW SHIFTING ROD TO TRANSMISSION
123
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
125
NUT , Replaced By: N304032008006
129
BRACKET SHIFTING ROD BEARING
129
BEARING , Replaced By: A3012930240, +001A3572680050
132
BUSHING SHIFTING ROD TO BRACKET
132
BUSHING , Replaced By: A3572680050
139
BUSHING
142
BOOT SHIFTING TUBE
157
SCREW BRACKET TO CROSS CONNECTION STRUT
157
SCREW , Replaced By: N304017008034
160
WASHER EXHAUST MUFFLER TO STRAP
160
WASHER , Replaced By: N000125008443
163
NUT BRACKET TO SIDE MEMBER
