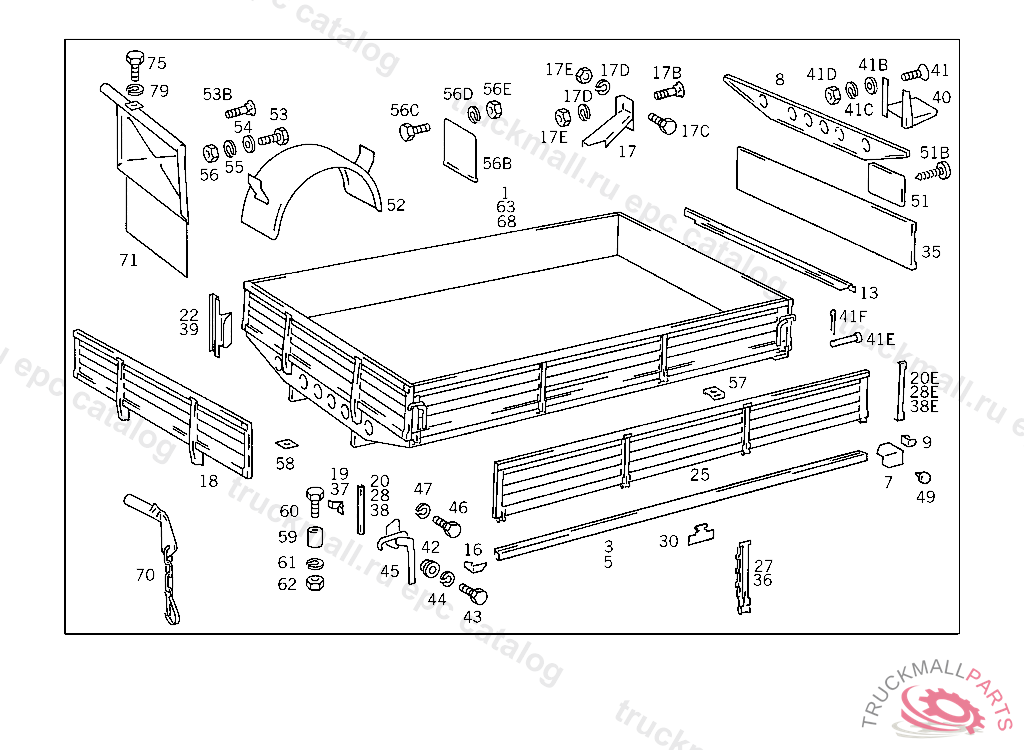

Поз.
Артикул
Описание
1
PLATFORM LESS FLOOR PANELS 3060 X 2000 MM
1
PLATFORM , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 303640 VEHICLES HAVING TARPAULIN FRAME ARE TO BE REWORKED, Replaced By: A3096009103
1
PLATFORM , Replaced By: A3096009803
3
EDGING LEFT, TO BE ADAPTED DURING ASSEMBLY
5
EDGING REAR
7
CORNER PIECE REAR
8
CROSS MEMBER2016 MM,303411 ONLY FOR 309.60,613,62
9
HINGE MOUNTING ,303411
13
EDGING REAR
13
EDGING , Replaced By: A3096160885
16
CORNER PIECE FRONT LEFT
16
CORNER PIECE FRONT RIGHT
18
FRONT PANEL2052X407 MM
19
REINFORCEMENT LATERAL,556499
19
RAIL , Replaced By: A3096270116
20
RAIL
25
SIDE PANEL REAR,303411
27
HINGE
28
RAIL
35
REAR PANEL , Replaced By: A3096403802, +001A3098500002, +001A0019874740, +004N000125008418, +004N000917008007, +004N000966008006, +004N912004008102
35
REAR PANEL2054X407 MM
36
HINGE
37
RAIL , Replaced By: A3096270116
38
RAIL
42
WASHER (ECCENTRIC PLATE) PLATFORM PANEL FASTENER
43
SCREW
44
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
45
HOOK RIGHT
45
HOOK LEFT FRONT AND RIGHT REAR
46
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
46
SCREW , Replaced By: N304017008016
47
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
49
RUBBER BUFFER
52
REAR FENDER RIGHT
52
REAR FENDER REAR LEFT
52
REAR FENDER , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 303640, Replaced By: A3098800321
53
SCREW , Replaced By: N304017008016
53
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
54
WASHER BRACKET TO LEFT SIDE MEMBER
54
WASHER , Replaced By: N009021008213
55
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
56
NUT
57
PLATE AT FRAME
58
PLATE RUBBER MOUNTING TO SUPPORT
59
BUSHING PLATFORM TO CHASSIS, 005931
60
SCREW PLATFORM MOUNTING
60
SCREW VIBRATION ABSORBER TO BRACKET
61
LOCK WASHER FITTING TO BRACKET
62
NUT PLATFORM MOUNTING
999
PLATFORM , Replaced By: A3096008803
999
RAIL LATERAL,556499
999
SPLASH GUARD , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3098801422
999
SPLASH GUARD ,303411
999
PLATE THREADED
999
SCREW MOUNTING OF INSTRUMENT PANEL
999
COTTER PIN PLATFORM SIDE AND REAR PANELS TO SUBSTRUCTURE
999
SCREW PLATFORM MOUNTING M 8X35
999
NUT TACHOGRAPH TO BRACKET
999
PIN PLATFORM SIDE AND REAR PANELS TO SUBSTRUCTURE
999
SCREW HOOK TO BRACKET
999
LOCK WASHER BRACKET TO STEERING COLUMN END
