Mercedes N000471012000 -

L 608 D 310.404

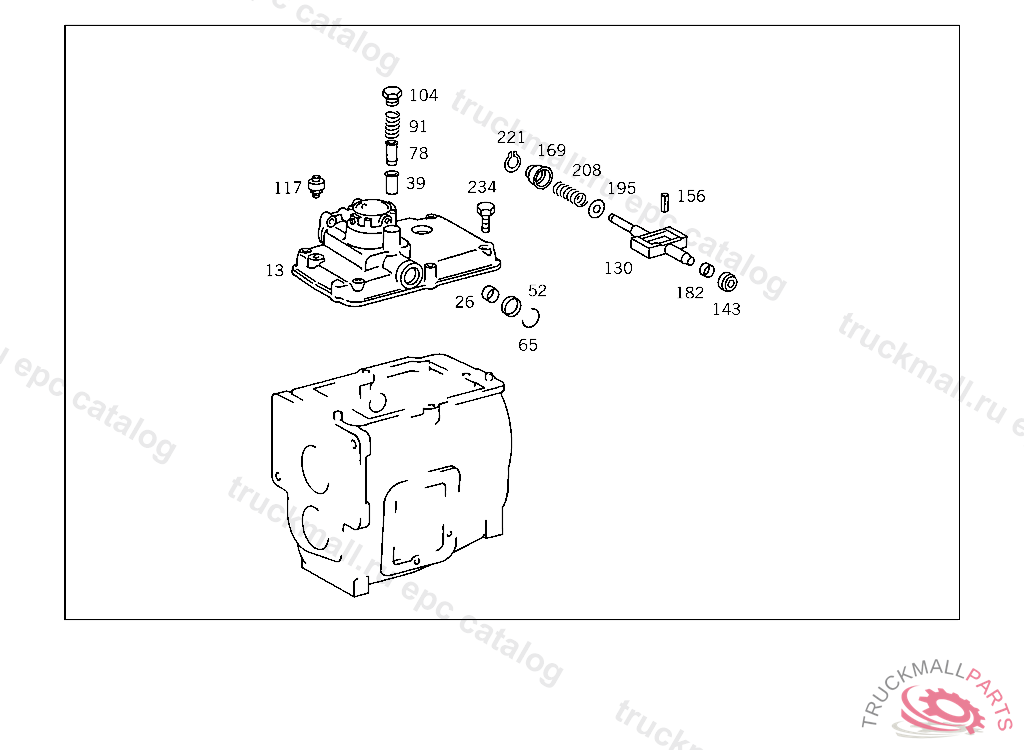

26 TRANSMISSION - 001 TRANSMISSION GEARSHIFT USED FOR G2/24

Поз.
Артикул
Описание
13
A3102601014
TRANSMISSION CASE COVER TOP
26
A6682670050
BUSHING LOCK-OUT BRACKET
26
A3102670050
BUSHING LOCK-OUT BRACKET
39
A3102650050
BUSHING LOCK-OUT BRACKET
52
N000443030000
EXPANSION PLUG
65
N009045006001
SNAP RING SHIFTING DOME, UP TO IDENT NO. 207851 FROM IDENT NO. 207852 SEE MOCROFICHE, MODEL 712.0
78
A3092670574
PIN
91
A3109930301
SPRING
104
A3109970030
SCREW PLUG
117
A1112600058
BREATHER TRANSFER CASE
130
A3102670313
PAWL
130
A3102670213
PAWL
143
A3102670141
STOP LOCK-OUT BRACKET
156
N001481003031
ROLL PIN. CLAMPING SLEEVE LOCK-OUT BRACKET
169
A3102670150
BUSHING LOCK-OUT BRACKET
182
A6682670050
BUSHING LOCK-OUT BRACKET
182
A3102670050
BUSHING LOCK-OUT BRACKET
195
A4272020052
SPACER WASHER LOCK-OUT BRACKET
195
A3102670076
WASHER , Replaced By: A4272020052
208
A3839930401
SPRING LOCK-OUT BRACKET
221
N000471012000
LOCK RING SHOCK ABSORBER TO BRACKET,1D 006005
234
N914126008082
SCREW TRANSMISSION CASE COVER TO TRANSMISSION CASE
999
A1109930401
SPRING GEARSHIFT LEVER LOWER PART,D 209705
999
A3022670008
SPHERICAL PIECE GEARSHIFT LEVER LOWER PART,D 203092
999
A3102610080
GASKET
999
A3102610133
COVER
999
A3102610180
GASKET
999
A3102610233
COVER
999
A3102650030
SELECTOR LEVER
999
A3102680229
SHIFTING ROD
999
A3102680329
SHIFTING ROD
999
A3142680005
COVER
999
A3142680533
SHIFTING FINGER
999
A3522670196
BOOT
999
A3832680150
BUSHING
999
A3832680376
WASHER
999
A3839930501
SPRING
999
A3839932001
SPRING
999
A3839940041
LOCK
999
A3852601759
SCREW
999
A3852680139
GUIDE PIVOT
999
A3852680616
PAWL
