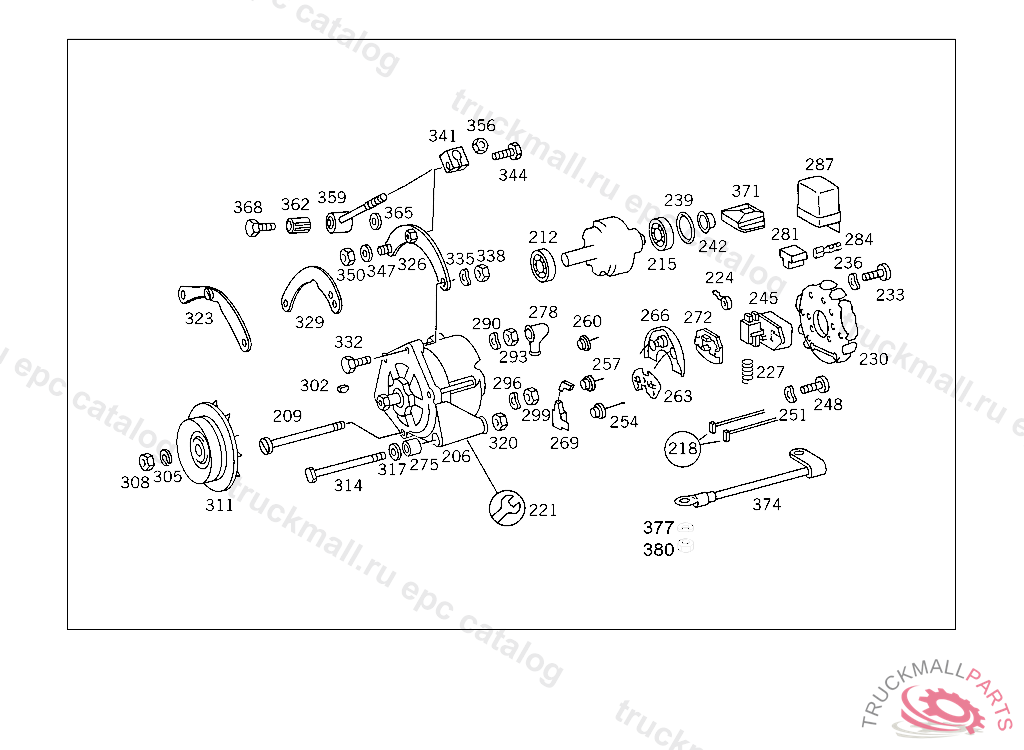

Поз.
Артикул
Описание
206
ALTERNATOR14V/65A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
206
ALTERNATOR
206
ALTERNATOR , Replaced By: A0071542302, +001A0001557118
209
SCREW , Replaced By: A0019900821
209
SCREW HOUSING
209
SCREW
212
GROOVED BALL BEARING
212
GROOVED BALL BEARING , TO 002 154 38 02 TO 003 154 67 02 TO 002 154 46 02 TO 004 154 46 02
212
GROOVED BALL BEARING , Replaced By: N000625436303
215
BALL BEARINGTO 005 154 34 02
215
GROOVED BALL BEARING
218
CARBON BRUSH SET
218
CARBON BRUSH SETTO 007 154 27 02
221
REPAIR KIT
221
REPAIR KIT ROTOR TO 005 154 52 02
224
SPRING
227
SPRING
230
RECTIFIERTO 005 154 29 02
230
RECTIFIERTO 005 154 83 02,006 154 67 02
233
SCREW T-FITTING TO BRACKET M4X25
236
SPRING WASHER ALTERNATOR CONNECTION D+
239
SEAL RINGTO 005 154 34 02
245
REGULATORTO 007 154 26 02
245
REGULATOR AND CUT-OUTTO 005 154 32 06
245
REGULATOR AND CUT-OUT , Replaced By: A0001541805
245
REGULATOR AND CUT-OUT , Replaced By: A0001541805
248
SCREW , Replaced By: N007985004130
248
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
251
SPRING WASHER ALTERNATOR CONNECTION D+
254
DIODE POS.
257
DIODE
263
DIODE CARRIER COMPLETE
263
DIODE CARRIER
266
RECTIFIER
269
CONDENSER
269
CONDENSER
272
GASKET
275
BUSHING ALTERNATOR MOUNTING FOOT TO 005 154 33 02
278
BOOT HEATER PLUGS
278
BOOTTO 003 154 39 02
281
PIN BUSHING HOUSING 3-POLE,4 483482
284
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
284
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
287
REGULATOR AND CUT-OUT ,4 477130
290
SPRING WASHER ALTERNATOR CONNECTION D+
290
SPRING WASHER HEATER PLUG CABLE HARNESS
293
NUT IN CASE OF SUBSEQUENT INSTALLATION
296
SPRING WASHER ALTERNATOR CONNECTION W
299
NUT BALL PIVOT TO LEVER
302
WOODRUFF KEY POWER STEERING PUMP
305
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
308
NUT RELEASE BEARING LUBRICATION
308
NUT , Replaced By: N308675014000
308
NUT , Replaced By: N308675014002
311
FAN ALTERNATOR
314
SCREW SUPPORT TO ALTERNATOR TO 366 150 06 73
314
SCREW BRACKET TO ALTERNATOR
314
SCREW ALTERNATOR MOUNTING
314
SCREW , Replaced By: A0049906504
317
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
317
WASHER RADIATOR TO RUBBER MOUNTING
317
WASHER ELBOW TO TURBOCHARGER
320
NUT , Replaced By: N913004008001
320
NUT AIR CLEANER ELEMENT
332
SCREW BRACKET TO APPARATUS SUPPORT
332
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
335
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
335
SPRING WASHER AIR COMPRESSOR LINE TO ENGINE,5 812731 - 5 8174215 936366 - 5 999999K 000001N 817422K 126820
335
SPRING WASHER CAB FLOOR
338
NUT STRAP TO SUPPORT
341
CLAMPING PIECE TIGHTENER PULLEY
341
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
344
HEXAGON HEAD BOLT. SCREW VIBRATION ABSORBER TO CONSOLE M 12X1.5X60
344
SCREW BRACKET TO CROSS MEMBER
344
SCREW CLAMPING BOLT TO ALTERNATOR M 12X1.5X60
347
WASHER
350
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
356
NUT
356
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
359
CLAMPING BOLT (CLAMPING BOLT)
359
CLAMPING BOLT (CLAMPING BOLT)
362
BUSHINGTO 355 150 03 72,366 150 13 72
362
BUSHING
362
BUSHING
365
SPACER WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
368
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
368
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
368
SCREW , Replaced By: N304017010035
374
GROUND CABLE , Replaced By: A3451507032
374
GROUND CABLE GENERATOR TO GENERATOR SUPPORT,529890
377
SPRING WASHER ALTERNATOR CONNECTION D+
380
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
DISCTO 002 151 80 01,002 151 84 01, NO LONGER AVAILABLE INDIVIDUALLY,ORDER INSTEAD:000 151 08 32
999
ALTERNATOR
999
ALTERNATOR , MB PART NO.003 154 39 02BOSCH PART NO. 0 120 400 700 MB PART NO.005 154 29 02BOSCH PART NO. 0 120 489 723 MB PART NO.005 154 33 02BOSCH PART NO. 0 120 489 725, Replaced By: A0051543302
999
CLAMPING BOLT ,009264, Replaced By: A3141500472, +001A3141550127, +002N000137008203, +001N000933008050, +001N000960012017
999
BUSHING
