Mercedes N304014008009 - Болт

OM 314 314.967

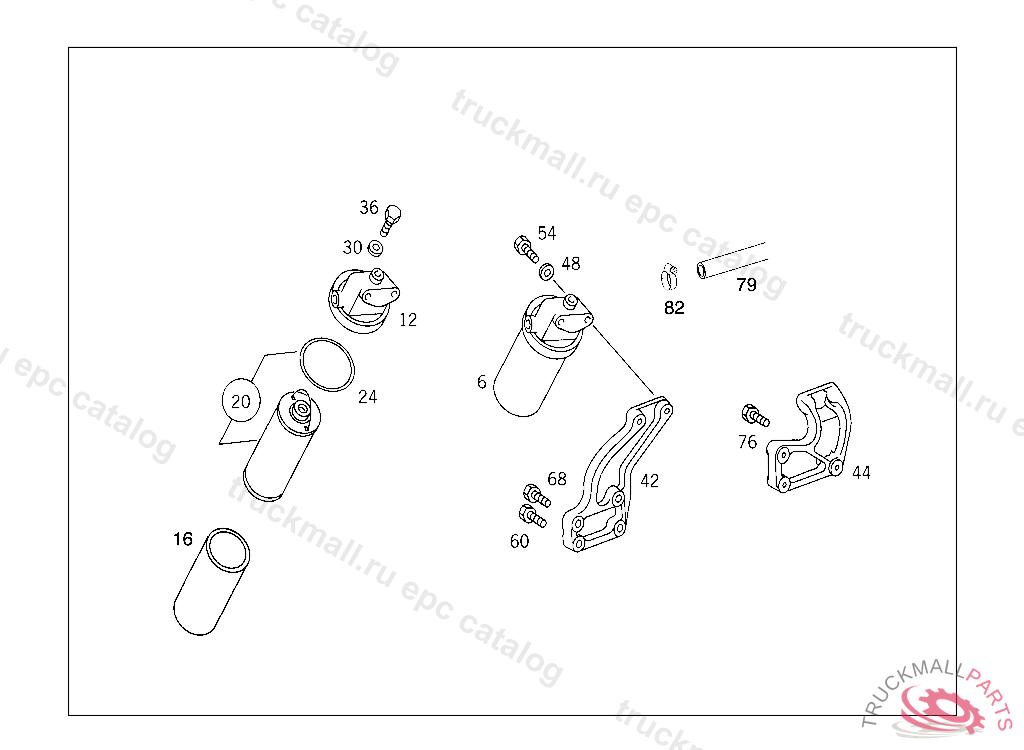

09 FUEL FILTER AND AIR CLEANER - 001 FUEL FILTER

Поз.
Артикул
Описание
6
A0010926101
FILTER FUEL
12
A0000920508
FILTER HEAD
16
A0004770605
HOUSING
20
A0000901151
FILTER ELEMENT REPAIR KIT
20
A3524700092
FILTER ELEMENT ,D 031294
24
A0004773580
SEAL RING ,D 031246
30
N007603008109
SEAL RING SCREW PLUG
36
N000931008326
SCREW , Replaced By: N304014008009
36
N304014008009
SCREW 3/2-WAY VALVE TO BRACKET
42
A3520921540
BRACKET FUEL FILTER
48
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
54
N910105010002
HEXAGON HEAD BOLT. SCREW BRACKET TO TRANSMISSION M 10X50
60
N910143010000
SCREW PLATE TO FRAME M 10X45
60
N910105010008
HEXAGON HEAD BOLT. SCREW BRACKET TO AIR INTAKE PIPE M 10X45
68
N910105010011
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
79
N900271018036
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR, ORDER BY THE METER
