Поз.
Артикул
Описание

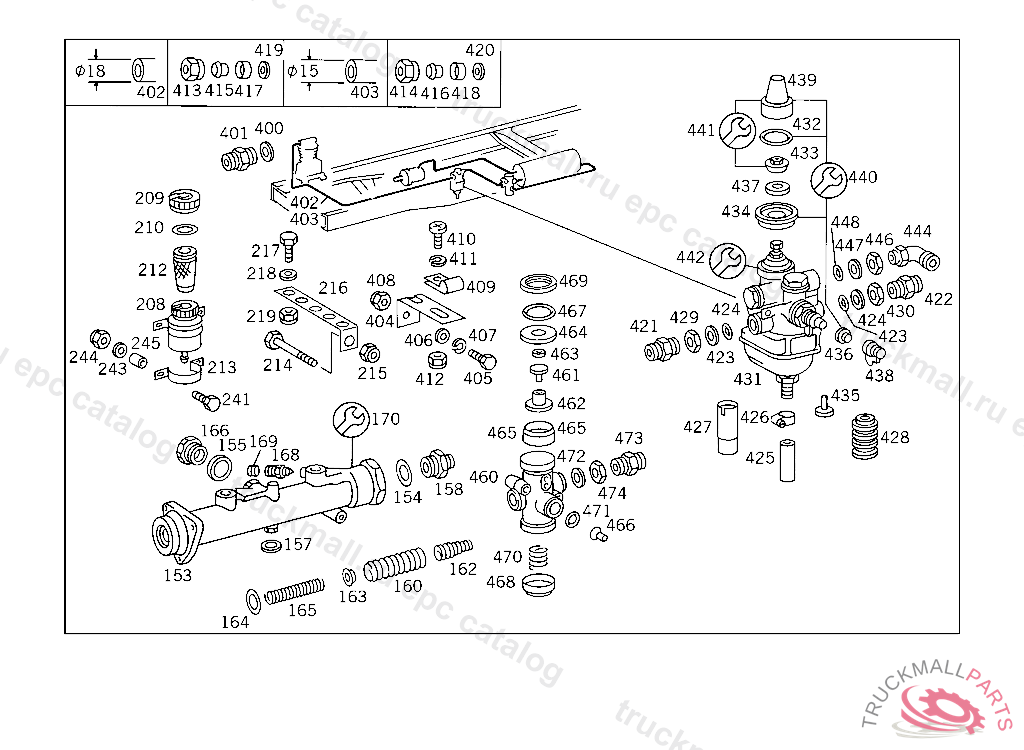

153
BRAKE MASTER CYLINDERTEVES
153
BRAKE MASTER CYLINDERSCHAEFER
154
SEAL RINGTO 002 430 72 01,SCHAEFER
154
SEAL RINGTO 003 430 81 01,TEVES,4 282708
155
SEAL RINGTO 002 430 69 01
155
SEAL RINGTO 003 430 81 01,TEVES,4 282708
157
SEAL RINGTO 002 430 69 01
158
THREADED UNIONTO 003 430 72 01,SCHAEFER
160
SPRINGTO 003 430 72 01,SCHAEFER
162
SPRINGTO 002 430 69 01
163
SPRING RETAINERTO 003 430 72 01,SCHAEFER
164
WASHERTO 003 430 72 01,SCHAEFER
165
SPRINGTO 003 430 72 01,SCHAEFER
166
THREADED UNIONTO 003 430 72 01,SCHAEFER
168
VALVE CLUTCH SLAVE CYLINDER
169
PROTECTIVE CAP , Replaced By: A0004217187
169
PROTECTIVE CAP ,5 962906
170
REPAIR KIT BRAKE MASTER CYLINDER TO 003 430 81 01,TEVES,4 282708
170
REPAIR KITTO 003 430 94 01,003 430 72 01
208
RESERVOIR WITH BRAKE SYSTEM WARNING DEVICE FAG
208
RESERVOIR WITH WARNING DEVICE,4 314610
209
FILLER CAPTO 001 431 38 02,000 431 58 02
209
FILLER CAP , Replaced By: A0004317633
209
FILLER CAP , Replaced By: A0004316533
210
SEAL RING42X21.5 MM
212
STRAINERTO 001 431 38 02
213
CLAMPTO 000 431 58 02
214
SCREW VALVE TO BRACKET
214
SCREW VALVE TO BRACKET, Replaced By: N304014008002
215
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
215
NUT , Replaced By: N913004008001
216
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
217
SCREW CONSOLE TO SIDE MEMBER
218
WASHER
219
NUT SUPPORT TO SIDE MEMBER
241
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
241
SCREW COVER PLATE TO BRACKET
241
SCREW COVER PLATE TO BRACKET
243
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
244
NUT PUMP TO BRACKET
244
NUT , Replaced By: N913004006001
245
TUBE. BUSHING CAB FLOOR COVERING
400
SEAL RING LINE CONNECTION
401
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
401
DOUBLE FITTING ,A 027954
402
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
403
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
404
BRACKET COMPRESSED AIR LINE
405
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
405
SCREW PIPE CLAMP
405
SCREW , Replaced By: N304017008021
406
WASHER EXHAUST MUFFLER TO STRAP
406
WASHER , Replaced By: N000125008443
407
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
407
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
408
NUT BRACKET TO SUPPORT AND TO END PIECE
408
NUT
409
CLAMP FEED LINE TO THERMOSTAT
409
CLAMP FEED LINE TO THERMOSTAT
409
CLAMP FEED LINE TO THERMOSTAT
410
SCREW CLAMP MOUNTING M 6X16
410
SCREW , Replaced By: N000000001146
411
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
412
NUT BALL PIVOT TO LEVER
413
UNION NUT , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
414
UNION NUT BUTT SCREW CONNECTION
415
SEAL CONE LINE MOUNTING
415
GLAND , Replaced By: A0019901167
416
GLAND LINE CONNECTION
417
THRUST RING , 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
418
THRUST RING BUTT SCREW CONNECTION
419
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
420
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
420
SEAL RING , Replaced By: N007603012121
421
FITTING SHUTTLE VALVE,CONNECTION: "20"
421
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
421
DOUBLE FITTING PRESSURE REGULATOR,CONNECTION "1",4 2827078 000001-8 001702
422
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20", Replaced By: N000000006191
423
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
423
SEAL RING LINE CONNECTION
424
O-RING CHECK VALVE TO AIR RESERVOIR
425
BREATHER PIPE PRESSURE REGULATOR,CONNECTION "3",4 281211
426
CLAMP PRESSURE REGULATOR,CONNECTION "3",4 431033
426
CLAMP ,4 431032
427
MUFFLER PRESSURE REGULATOR BREATHING
428
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
429
NUT SUCTION LINE TO OIL PUMP
430
NUT CHECK VALVE TO AIR RESERVOIR
431
PRESSURE REGULATORBOSCH,4 208907 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
431
PRESSURE REGULATORKNORR,5 7999995 800000 - 5 8127305 900000 - 5 936365
431
PRESSURE REGULATOR WITH TIRE INFLATING CONNECTION BOSCH,5 7999995 800000 - 5 8127305 900000 - 5 936365 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
431
PRESSURE REGULATORWABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
431
PRESSURE REGULATOR , Replaced By: A0024315906
431
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
432
SEAL RING
433
SLEEVE
434
STRAINER
435
VALVE DISC
436
VALVE DISC ON TAPPED
437
VALVE DISC
438
PLUG
439
PROTECTIVE CAP
440
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
440
REPAIR KIT , UP TO 625
440
REPAIR KIT , UP TO 625
441
REPAIR KIT , FROM 626
441
REPAIR KIT , FROM 626
442
REPAIR KIT PRESSURE REGULATOR WABCO
442
REPAIR KIT PRESSURE REGULATOR WABCO
442
REPAIR KITGRAU,5 148812
442
REPAIR KITTO 001 431 12 06, KNORR 3200
442
REPAIR KITTO 001 431 12 06, KNORR 3200
442
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
442
REPAIR KIT SEAL RING BOSCH,209
442
REPAIR KIT SEAL RING BOSCH,209
442
REPAIR KIT SEAL RING BOSCH,209
442
REPAIR KIT SEAL RING BOSCH,209
442
REPAIR KIT DIAPHRAGM PART BOSCH,209
442
REPAIR KIT DIAPHRAGM PART BOSCH,209
442
REPAIR KIT DIAPHRAGM PART BOSCH,209
442
REPAIR KIT DIAPHRAGM PART BOSCH,209
442
REPAIR KIT VALVE KIT WABCO,5 148812
442
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
444
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
446
NUT CHECK VALVE TO AIR RESERVOIR
447
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
448
O-RING CHECK VALVE TO AIR RESERVOIR
460
VALVE , FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
461
VALVE DISC024, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
462
VALVE DISC101
463
SEALBOSCH 024, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
464
CUP , INCLUDED IN RANGE OF DELIVERY OF 000 431 68 06
465
CUP101
465
CUP , Replaced By: A0014312386
466
CUPTO BOSCH-NR.0481 027 104
467
GASKETTO 000 429 16 30
468
PROTECTIVE CAP101
469
FILLER CAP
470
SPRING , Replaced By: A0009935205
471
SEAL RING101
472
SEAL RING LINE CONNECTION
473
FITTING SHUTTLE VALVE,CONNECTION: "20"
474
NUT CHECK VALVE TO AIR RESERVOIR
999
BRAKE CABLE BRAKE POWER REGULATOR, ONLY APPLICABLE TO BEVERAGE VEHICLES
999
BLEEDER VALVE , Replaced By: A0004310265
999
BLEEDER VALVE , Replaced By: A0004310265
999
THRUST PIN , UP TO FRONT AXLE 007091
999
PROTECTIVE CAP , Replaced By: A0004210887
999
SPRING , UP TO REAR AXLE 008007
999
PISTON , UP TO REAR AXLE 008007
999
BRAKE HOSE
999
BRACKET. LOCK , Replaced By: A6525040038
999
CONNECTOR , Replaced By: A0004292736
999
BRAKE HOSE , Replaced By: A0004280535
999
BRAKE HOSE , Replaced By: A0004289535
999
FITTING , Replaced By: N074304022201
999
LINE , Replaced By: A0005516256
999
LINE , Replaced By: A0005516456
999
LINE , Replaced By: A0004296201
999
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
999
KAPPENVENTIL. VALVETO 002 430 31 01,344 430 80 01
999
HANDLETO 001 430 17 81,KNORR
999
REPAIR KITTO 001 430 18 81/78 81
999
REPAIR KITTO 002 431 83 06, KNORR 90309
999
VALVE
999
STRAINERTO 002 430 31 01
999
SPACER RING ,4 428462
999
VALVE , Replaced By: A3075530107
999
VALVE , Replaced By: A0004310265
999
YOKE , Replaced By: A0004310667
999
SLIDETO 000 431 50 14,000 431 24 14
999
VALVE , Replaced By: A0004311316
999
FILTER BOTTOMTO 000 431 24 14
999
DICHTSCHEIBE. SEAL RING
999
SCREWTO 003 430 72 01,SCHAEFER
999
FILLER CAP , Replaced By: A0004315133
999
VALVE , Replaced By: A0004311316
999
VALVE DISC , Replaced By: A0003270032
999
BRAKE BOOSTER , Replaced By: A0004319114
999
LEVER , Replaced By: A0034302881
999
WASHER
999
LEVER TOOTHED
999
LEVER
999
FILLER CAP , Replaced By: A0004315133
999
FILLER CAPTO 000 431 16 02
999
STRAINER , Replaced By: A0004314334
999
VALVE , Replaced By: A0004319106
999
FILLER CAP , Replaced By: A0004315133
999
STRAINER , Replaced By: A0004313134
999
FILLER CAP , Replaced By: A0004313733
999
FILLER CAP , Replaced By: A0004315433
999
SPRINGTO 000 431 43 12,000 431 75 12
999
BRAKE CYLINDER. BRAKE BOOSTER , Replaced By: A0004319114
999
PISTONTO 003 430 07 01,4 2827078 000001-8 001702
999
SEAL RING , Replaced By: A0004319460
999
CUP , Replaced By: A0015864342
999
BRAKE CYLINDER , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 847617, Replaced By: A0014318514
999
BRAKE CYLINDER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 847617, Replaced By: A0014318514
999
SCREW
999
SCREW , Replaced By: A0004321107
