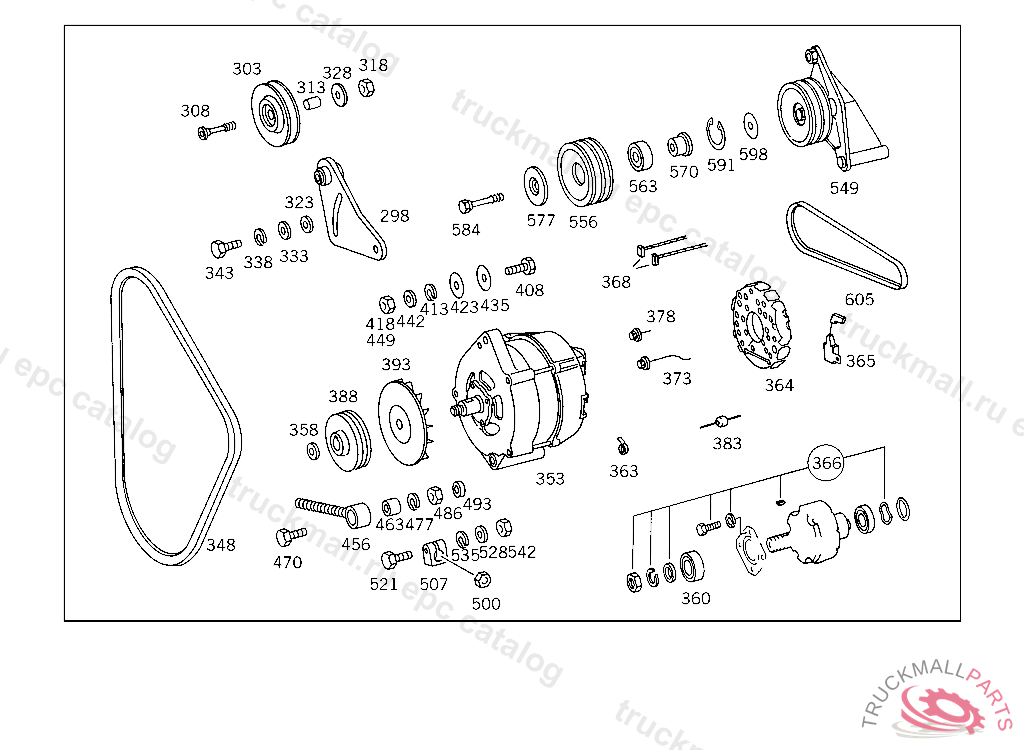

Поз.
Артикул
Описание
298
BRACKET BELT TENSION READJUSTMENT
298
PULLEY , Replaced By: A1161300460, +001A3141300240, +001A1151320053, +001A3149900419, +001N000934008020
298
PULLEY , Replaced By: A1161300460, +001A3141300240, +001A1151320053, +001A3149900419, +001N000934008020
303
PULLEY , Replaced By: A1161300460
303
PULLEY BELT TENSION READJUSTMENT
308
SCREW BELT TENSION READJUSTMENT
313
SPACER TUBE BELT TENSION READJUSTMENT
318
NUT COVER PLATE
323
SPACER TUBE BRACKET TO TRANSMISSION,5 724671
328
SPACER WASHER AS REQUIRED 2.00 MM
328
SPACER WASHER AS REQUIRED 1.00 MM
328
SPACER WASHER AS REQUIRED 3.00 MM
333
WASHER STRUT TO CROSS MEMBER
338
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
343
SCREW RADIATOR M 10X45
348
V-BELT REFRIGERANT COMPRESSOR, 309.370-391 UP TO CHASSIS 010599, 309.400-426 UP TO CHASSIS 076955, 310.300-326 UP TO CHASSIS 012888
348
V-BELT REFRIGERANT COMPRESSOR 12.5X1125 MM, 309.370-391 FROM CHASSIS 010600, 309.400-426 FROM CHASSIS 076956, 310.300-326 FROM CHASSIS 012889, 310.400-426 FROM CHASSIS 00 0001
348
V-BELT , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0049976992
348
V-BELT , Replaced By: A0049976992
353
ALTERNATOR , Replaced By: A0041547502
353
ALTERNATOR12 V/120 A
353
ALTERNATOR12 V 65 A
358
WASHER
360
GROOVED BALL BEARING
363
SPRING
363
SPRING , Replaced By: A0001541393
364
RECTIFIER
365
CONDENSER
366
REPAIR KIT , Replaced By: A0001500472
366
REPAIR KIT
368
CARBON BRUSH SET
373
DIODE POS.
378
DIODE NEG.
383
DIODE
383
DIODE , Replaced By: A0015481518
388
PULLEY ALTERNATOR
388
PULLEY ALTERNATOR
388
PULLEY ALTERNATOR, SEE SA 19494/2/3
393
FAN , Replaced By: A0001557818
393
FAN ALTERNATOR
393
FAN ALTERNATOR
408
SCREW DUMPER SHAFT,5 515436
408
SCREW , Replaced By: N304014010015
413
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
418
NUT
423
FITTED WASHER AS REQUIRED 1.40 MM
423
FITTED WASHER AS REQUIRED 1.80 MM
423
FITTED WASHER AS REQUIRED 1.0 MM
435
SPACER WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
435
SPACER WASHER AS REQUIRED 0.50 MM
442
WASHER BRACKET TO RIGHT FENDER, 415 5 014668 416 5 000515 417 4 972023
449
NUT , Replaced By: N304032010002
449
NUT
456
CLAMPING BOLT COMPLETE
456
CLAMPING BOLT , Replaced By: A4031500572
456
SCREW , Replaced By: A3761500072
456
CLAMPING BOLT COMPLETE
456
CLAMPING BOLT COMPLETE
456
CLAMPING BOLT FOR V-BELT TENSIONING
463
BUSHING
463
BUSHING
470
SCREW BRACKET TO BELL HOUSING
470
SCREW RADIATOR M 10X45
470
SCREW
470
SCREW STRAP TO BRACKET
477
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
486
NUT BRACKET TO SUPPORT AND TO END PIECE
493
SPACER TUBE BRACKET TO TRANSMISSION,5 724671
500
NUT TIGHTENER PULLEY TO LEVER
500
NUT ALTERNATOR
507
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
507
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
507
CLAMPING PIECE TIGHTENER PULLEY
521
SCREW ALTERNATOR TO SUPPORT
521
SCREW ,5 903514, Replaced By: N000960012353
521
SCREW TORSION BAR TO SHACKLE,5 903514
521
SCREW MOUNTING AND RAIL TO LEAF SPRING
528
WASHER , Replaced By: N000125010532
528
WASHER RADIATOR TO RUBBER MOUNTING
528
WASHER
535
LOCK WASHER FITTING TO BRACKET
535
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
542
NUT STRAP TO SUPPORT,5 149419
542
NUT STRAP TO SUPPORT
549
BRACKET BELT TIGHTENER
556
PULLEY BELT TIGHTENER
563
BALL BEARING BELT TIGHTENER
570
HUB BELT TIGHTENER
577
WASHER BELT TIGHTENER
584
SCREW BELT TIGHTENER
591
LOCK RING52X2 MM
598
SPACER WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
598
SPACER WASHER AS REQUIRED 0.50 MM
605
V-BELT ALTERNATOR
605
V-BELT REFRIGERANT COMPRESSOR 12.5X1125 MM, 309.370-391 FROM CHASSIS 010600, 309.400-426 FROM CHASSIS 076956, 310.300-326 FROM CHASSIS 012889, 310.400-426 FROM CHASSIS 00 0001
605
V-BELT , Replaced By: A0039970192
605
V-BELT , Replaced By: A0049979992
605
V-BELT , Replaced By: A0099976892
605
V-BELT , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0049976992
605
V-BELT , Replaced By: A0049976992
605
V-BELT SET2 PIECES 12.5X1025
605
V-BELT ALTERNATOR
999
SCREENING PULLEY TO 003 131 25 01
999
WASHER , Replaced By: A0029908051
999
FAN
999
ANGULAR CONTACT BEARING COUPLING TO PULLEY TO 003 131 25 01
999
ALTERNATOR , Replaced By: A0031547502
999
ALTERNATOR
999
ALTERNATOR , Replaced By: A0041547502
999
SCREW BRACKET TO TRANSMISSION, TO BE ADAPTED DURING ASSEMBLY
999
SCREW , FROM IDENT NO. 556500 ALSO INSTALLED ON 543411,543418,551148,551588,551771,552021,552392,552551,552654,552687,552694,552840,552846,553000, 553005,553105,553112,553185,553210,553226,553264,553332,553602,553651,553660,553795,554081,554103, 554107,554213,554266,554270,554333,554993,555186,555885,555902,555992,556045,556120,556138,556143, 556146,556169,556181,556184,556187,556189,556194-556197,556215.
999
ALTERNATOR
999
CONSOLE ENGINE FRONT LEFT MOUNTING,156152
999
CONSOLE ENGINE FRONT RIGHT MOUNTING,156152
999
FRAME ,020033
999
FRAME ,020033
999
CROSS MEMBER RADIATOR, FROM IDENT NO. 611358 EXCEPT FOR 611519,611537 ALSO INSTALLED ON 610763,610832,610834,610848,610863
999
FRAME
999
ENGINE CROSS MEMBER , Replaced By: A3093100126
999
BRACKET RADIATOR BRACING,TOP,182908
999
HOSE , Replaced By: A3095011682
999
HOSE FROM THERMOSTAT TO RADIATOR, UP TO CHASSIS 611357 ALSO INSTALLED ON 611519,611537 EXCEPT FOR 610763,610832,610834,610848,610863
999
BRACKET AT CROSS MEMBER,D 030553
999
SHIM , Replaced By: A4075460143
999
RUBBER MOUNTING FRONT, 156153
999
FRAME ,156152
999
FRAME ,156152
999
FRAME ,156152
999
FRAME ,156152
999
OIL DRIP PAN
999
OIL FILLER NECK
999
SHIM REFRIGERANT COMPRESSOR MOUNTING PARTS, TRUCKS UP TO CHASSIS 156152,BUS UP TO CHASSIS 017660
999
SPACER WASHER AS REQUIRED 2.00 MM
999
SPACER TUBE ALTERNATOR TO SUPPORT
999
SPACER TUBE ALTERNATOR TO SUPPORT
