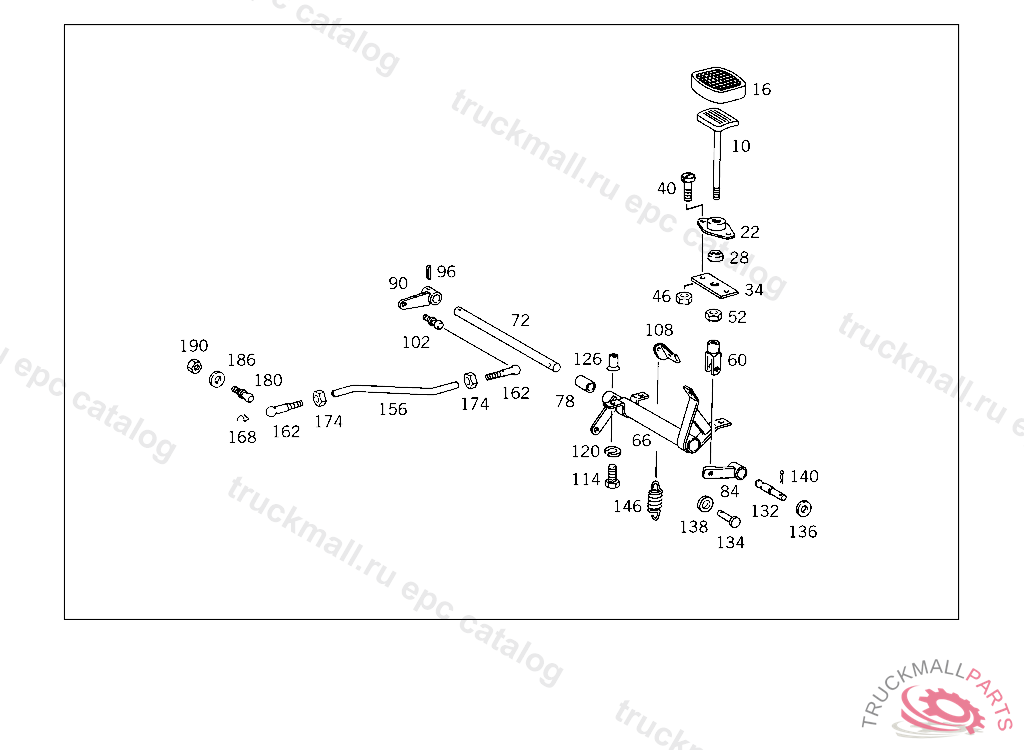

Поз.
Артикул
Описание
10
BRAKE PEDAL
16
PAD , 016,017,018 UP TO IDENT NO. 739255 EXCEPT FOR 500001-599999 UP TO IDENT NO. 4 667210,FROM IDENT NO.SEE SA 25011
22
BRACKET , UP TO IDENT NO. 693528 EXCEPT FOR 500001-599999
28
GUIDE BRAKE PEDAL THRU CAB FLOOR, USED WITH HYDRAULIC BRAKE,UP TO CHASSIS 589554
34
SHIM BRACKET TO CAB FLOOR, 309.300-320,400-420 FROM CHASSIS 043827, 309.370-380 FROM CHASSIS 004063,310.300-399 FROM CHASSIS 003709
40
SCREW BRACKET TO COVERING
40
SCREW , Replaced By: N000000001145
46
NUT , Replaced By: N913004006001
46
NUT PUMP TO BRACKET
52
NUT
60
YOKE OPERATING ROD
66
INTERMEDIATE SHAFT
72
INTERMEDIATE SHAFT
78
BUSHING
84
LEVER
90
LEVER
96
CLAMPING SLEEVE INTERMEDIATE SHAFT, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
102
BALL STUD. BALL PIVOT
102
BALL PIVOT
108
BRACKET SHAFT TO CAB,350433
114
SCREW LICENSE PLATE TO BRACKET
114
SCREW , Replaced By: N304017006020
120
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
126
RIVETED NUT
132
PIN LEVER TO EXHAUST BRAKE PEDAL,350433
134
PIN
136
WASHER EXHAUST MUFFLER TO STRAP
136
WASHER , Replaced By: N000125008443
138
SPRING WASHER , Replaced By: N000137008212
138
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
140
COTTER PIN LEVER TO ROD
140
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
146
SPRING ,350433
156
ROD EXHAUST BRAKE
162
BALL SOCKET ROD TO LEVER,281716
168
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
174
NUT BALL PIVOT TO LEVER
180
SCREW CONTROL LEVER TO INJECTION PUMP LEVER
180
BALL PIVOT CONTROL LEVER TO INJECTION PUMP LEVER, Replaced By: N000000004467
186
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
186
WASHER COMPRESSED AIR LINE TO BRACKET
190
NUT PUMP TO BRACKET
190
NUT , Replaced By: N913004006001
