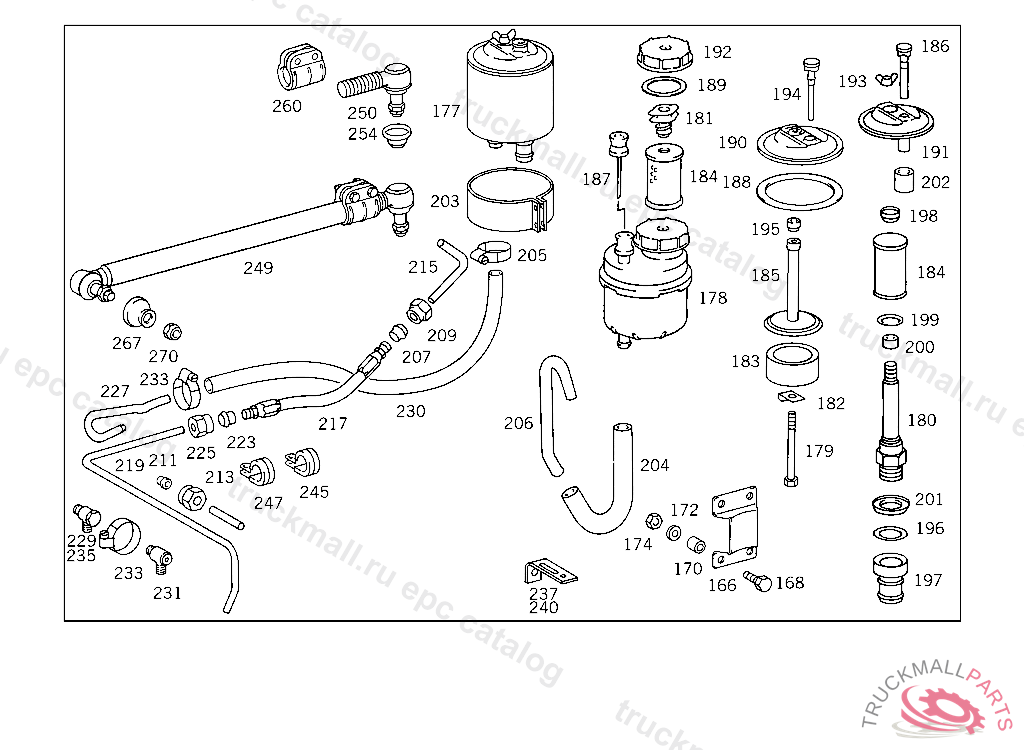

Поз.
Артикул
Описание
166
BRACKET OIL TANK
166
BRACKET , Replaced By: A3184600135
168
SCREW VALVE TO BRACKET M 8X55
168
SCREW , Replaced By: N304017008043
168
SCREW SUPPORT TO FENDER
168
SCREW , Replaced By: N304017008018
170
SPACER TUBE COVER PLATE TO BRACKET
170
SPACER TUBE , Replaced By: A6729910440
170
SPACER TUBE , Replaced By: A6729910440
172
WASHER BRACKET TO LEFT SIDE MEMBER
172
WASHER , Replaced By: N009021008213
174
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
174
NUT , Replaced By: N913004008001
177
TANK , Replaced By: A0004664502
178
TANK OIL
179
SCREW OIL TANK TO 309 460 00 83, ON TRUCKS UP TO CHASSIS 145736 ALSO INSTALLED ON:SEE FOOTNOTE 022,WITH THE EXCEPTION OF:SEE FOOTNOTE 023,CONTINUED ON FOOTNOTE024
180
FILTER CARRIERTO 000 466 38 02
181
BRACKET
182
LOCK ,4 142844
183
FILTER OIL TANK TO 309 460 00 83, ON TRUCKS UP TO CHASSIS 145736 ALSO INSTALLED ON:SEE FOOTNOTE 022,WITH THE EXCEPTION OF:SEE FOOTNOTE 023,CONTINUED ON FOOTNOTE024
184
FILTER
184
FILTER
184
FILTER , Replaced By: A0004660604
185
PIPE OIL TANK TO 309 460 00 83, ON TRUCKS UP TO CHASSIS 145736 ALSO INSTALLED ON:SEE FOOTNOTE 022,WITH THE EXCEPTION OF:SEE FOOTNOTE 023,CONTINUED ON FOOTNOTE024
186
PIPETO 000 466 38 02
187
OIL DIPSTICK
187
OIL DIPSTICK , Replaced By: A0004660867
188
SEAL RINGTO 000 466 38 02
189
SEAL RING
190
COVER OIL TANK
191
COVERTO 000 466 38 02
192
FILLER CAP
193
NUT , 993035
194
SCREW OIL TANK TO 309 460 00 83, ON TRUCKS UP TO CHASSIS 145736 ALSO INSTALLED ON:SEE FOOTNOTE 022,WITH THE EXCEPTION OF:SEE FOOTNOTE 023,CONTINUED ON FOOTNOTE024
195
SEAL RING OIL TANK TO 309 460 00 83, ON TRUCKS UP TO CHASSIS 145736 ALSO INSTALLED ON:SEE FOOTNOTE 022,WITH THE EXCEPTION OF:SEE FOOTNOTE 023,CONTINUED ON FOOTNOTE024
196
SEAL RINGTO 000 466 38 02
196
SEAL RING , Replaced By: A0059970848
197
CONNECTORTO 000 466 38 02
198
CENTERING RINGTO 000 466 38 02
199
SPACER WASHERTO 000 466 38 02
199
WASHER , Replaced By: A9402680552
200
SPACER TUBETO 000 466 38 02
201
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
201
COVER PLATETO 000 466 38 02
202
RUBBER SLEEVETO 000 466 38 02
203
CLAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 713817 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3184600135
203
CLAMP , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 708545 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A6204660077
204
HOSE FROM OIL TANK TO HYDRAULIC PUMP
204
HOSE , Replaced By: A3859971582
204
HOSE ,K 055044
204
HOSE FROM OIL TANK TO HYDRAULIC PUMP, FROM IDENT NO. 4 142845,FROM IDENT NO. 8 000001- 8 001702
205
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
205
CLAMP25-40X13 MM
206
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
207
GLAND , Replaced By: A0019901167
207
SEAL CONE LINE MOUNTING
209
UNION NUT LINE MOUNTING
211
GLAND , Replaced By: A0019901967
211
SEAL CONE LINE CONNECTION
211
SEAL CONE LINE CONNECTION
213
UNION NUT LINE CONNECTION
215
LINE , Replaced By: A3164601388
215
LINE FROM PUMP TO STEERING
217
HOSE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
219
LINE , Replaced By: A0002610283
219
LINE , Replaced By: A0002610283
219
LINE , Replaced By: A0002610283
219
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
223
CUTTING RING. GLAND LINE CONNECTION
225
NUT. UNION NUT LINE CONNECTION
227
LINE , Replaced By: A0005516456
229
FITTING FROM STEERING TO OIL TANK
230
HOSE FROM STEERING TO OIL TANK, FROM IDENT NO. 4 142845,FROM IDENT NO. 8 000001- 8 001702
231
SCREW CONNECTION COMPRESSED AIR LINE TO WHEEL HUB, Replaced By: N000000006458
231
THREADED CONNECTION COMPRESSED AIR LINE TO WHEEL HUB
233
CLAMP , Replaced By: N000000000667
233
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
235
FITTING FROM STEERING TO OIL TANK
237
BRACKET POS. CABLE,XB209706
237
BRACKET LINE MOUNTING
237
BRACKET LINE MOUNTING
240
BRACKET , Replaced By: A3184280240
240
BRACKET LINE MOUNTING
245
CLAMP LINE MOUNTING
247
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
249
DRAG LINK
250
JOINT , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0013300335
250
JOINT TO BE SCREWED INTO DRAG LINK LEMFOERDER
254
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003301185
254
BOOT
260
CLAMP CLAMP, ONE-HOLE
267
BOOT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0003300885
267
BOOT FIXED PART OF JOINT
270
NUT DRAG LINK TO LEVER,4 215305
999
LINE , Replaced By: A3872571166
999
LINE , Replaced By: A3184601888
999
LINE FROM OIL TANK TO HYDRAULIC PUMP
999
STEERING SHAFT
999
STEERING SHAFT
999
STEERING BOX ASSEMBLY , Replaced By: A3444601101
999
HOSE , Replaced By: A3859971582
999
ANGLE WIRE CABLE TO ENGINE
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP , Replaced By: N916016018202
999
STEERING WHEEL , NO.8316INO.7C52INO.7B90INO.9051I II I
999
PIPE , Replaced By: A3952571066
999
TUBE. BUSHING CAB FLOOR COVERING
999
PIPE SUCTION LINE 1360 MM
999
UNIVERSAL JOINT , Replaced By: A3444607057
999
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
999
UNION NUT LINE CONNECTION
999
NUT LINE CONNECTION
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN6.3X63 MM
999
SCREW , Replaced By: N304017010030
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006020
999
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008034
999
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW CLAMP TO DRAG LINK
999
GLAND , Replaced By: A0019901267
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SCREW OIL TANK TO BRACKET
999
SCREW LICENSE PLATE TO BRACKET
999
SCREW PIPE CLAMP
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW , Replaced By: N304017010053
999
SCREW PIPE ELBOW TO BRACKET M 10X50
999
LOCK RING UNIVERSAL JOINT COVERING
999
NUT STRAP TO BRACKET
999
NUT REINFORCEMENT TO BRACKET
999
NUT , Replaced By: N913002006009
999
NUT OIL TANK TO BRACKET
999
NUT AIR CLEANER ELEMENT
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT LONGITUDINAL DIFFERENTIAL LOCK BRACKET,5 963747
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N910113010003
999
UNION NUT LINE CONNECTION, Replaced By: N000000006239
999
UNION NUT LINE CONNECTION, Replaced By: N000000006243
999
SCREW CONNECTION OIL DISTRIBUTION
999
SCREW CONNECTION DELIVERY LINE TO STEERING
999
SCREW CONNECTION DELIVERY LINE TO PUMP
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP HOSE TO FITTING AND TO OIL TANK
999
NEEDLE BEARING , Replaced By: A0009801410
999
NEEDLE BEARING , Replaced By: A0009801510
999
NEEDLE BEARING , Replaced By: A0009801210
999
FITTING DELIVERY LINE TO PUMP
999
SEAL RING PITMAN ARM
999
NEEDLE BEARING , Replaced By: A0049814510
999
PROTECTIVE CAP
999
OIL TANK , Replaced By: A0004663802, +001A3169970482, +001A3189970582
999
HOSE , Replaced By: A0009974752
999
HOSE HOSE TO OIL LINE, ON TRUCKS UP TO CHASSIS 145736 ALSO INSTALLED ON:SEE FOOTNOTE 022,WITH THE EXCEPTION OF:SEE FOOTNOTE 023,CONTINUED ON FOOTNOTE024
999
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
999
LINE FROM STEERING TO OIL TANK
999
LINE , Replaced By: A3872571166
999
LINE FROM STEERING TO OIL TANK
999
LINE FROM PUMP TO STEERING
999
LINE , Replaced By: A0004291001
999
LINE , Replaced By: A3144660765
999
LINE , Replaced By: A3144600788
999
BRACKET FLEXIBLE SHAFT
999
SCREW STEERING TO STEERING BRACKET,4 2827078 000001-8 001702
999
BRACKET OIL LINE MOUNTING
999
STEERING BRACKET
999
DRAG LINK , EXHAUST STOCK OF OLD PARTS FROM CHASSIS 695199 - 4 282707, Replaced By: A3164600805
999
LINE , Replaced By: A0004291601
999
STEERING SHAFT , Replaced By: A3164620801
999
PITMAN ARM , 10/20 695199 50/60 695577 8 0000014 2827078 000001-8 001702
999
LINE , Replaced By: A0005516456
999
LINE , Replaced By: A3164601288
999
HOSE , Replaced By: A3099971182
999
LINE FROM OIL TANK TO HYDRAULIC PUMP
999
LINE FROM STEERING TO OIL TANK
999
LINE FROM OIL TANK TO HYDRAULIC PUMP
999
NEEDLE BEARING , Replaced By: A0009800910
999
NUT PITMAN ARM TO STEERING BOX ASSEMBLY
999
SEAL CONE LINE CONNECTION
999
INNER RING , Replaced By: A0009801310
999
INNER RING , Replaced By: A0009800910
999
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
999
SEAL RING FROM STEERING TO OIL TANK
999
SEAL RING FROM STEERING TO OIL TANK
999
SEALING CORD , Replaced By: A0059970848
999
NEEDLE BEARING DIA., 28.015X18.017, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
999
NEEDLE BEARING DIA., 28.015X18.014, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
999
NEEDLE BEARING DIA., 28.015X18.011, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
999
NEEDLE BEARING DIA., 28.015X18.008, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
999
NEEDLE BEARING DIA., 28X18.017, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
999
NEEDLE BEARING DIA., 28X18.014, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
999
NEEDLE BEARING DIA., 28X18.011, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
999
NEEDLE BEARING DIA., 28X18.008, ON BUSES UP TO CHASSIS 053510,ON TRUCKS UP TO CHASSIS 209647,FROM CHASSIS SEE 766.3
