Поз.
Артикул
Описание

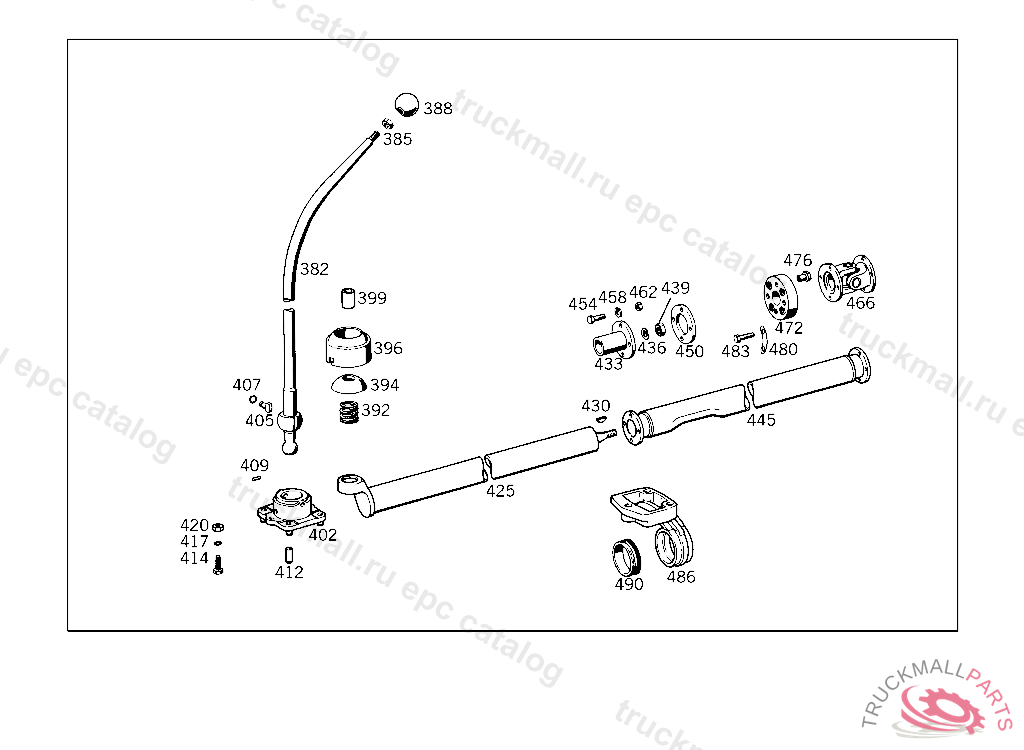

382
SHIFT LEVER
385
NUT SHIFT LEVER
388
HANDLE (GEARSHIFT LEVER KNOB)
388
HANDLE
388
HANDLE
430
WOODRUFF KEY FLANGE TO SHIFTING TUBE
433
CONNECTOR FLANGE TO SHIFTING TUBE
436
LOCK WASHER PROPELLER SHAFT TO REAR AXLES I AND II
439
HEX. NUT. NUT FUEL TANK TO CONSOLE,167609
450
SPACER WASHER5 MM
450
SPACER WASHER3 MM
450
SPACER WASHER2 MM
454
SCREW SHIFTING TUBE TO TRANSMISSION
458
LOCK WASHER , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817
462
NUT LEVER TO SHIFTING SHAFT
466
JOINT REAR SHIFTING ROD
466
JOINT REAR SHIFTING ROD
466
JOINT FRONT SHIFTING ROD TO SHIFTING ROD ABOVE FRONR AXLE
466
JOINT , Replaced By: A0002681889
466
JOINT
466
JOINT , Replaced By: A0002681989
472
CONNECTOR
472
CONNECTOR FRONT SHIFTING ROD TO REAR SHIFTING ROD
472
CONNECTOR , Replaced By: A3442600075
476
BUSHING
480
LOCK FRONT SHIFTING ROD TO REAR SHIFTING ROD
483
SCREW SHIFTING ROD TO TRANSMISSION
486
SHIFT CASE REMOTE GEARSHIFT MECHANISM
999
999
LOOM TIE
999
GREASE NIPPLE
999
LOCK PLATE , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
999
SCREW 3/2-WAY VALVE TO BRACKET M8X55
999
SCREW RADIATOR M 10X45
999
STUD EXHAUST MANIFOLD M 8X25
999
STUD , Replaced By: N000835008077
999
999
LOCK WASHER , Replaced By: N912004010102
999
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
999
COTTER PIN RIGHT BEARING BRACKET TO CROSS MEMBER
999
COTTER PIN , 344.030,032,033,040,041,057,058 UP TO IDENT NO. 415524, FROM IDENT NO. SEE SPARE PARTS LIST 732.7
999
COTTER PIN PULL ROD TO SHIFTING SHAFT
999
999
ROLLER ASSEMBLY 2ND SPEED GEAR, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
ROLLER ASSEMBLY 2ND SPEED GEAR, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
999
999
999
ROLLER ASSEMBLY , Replaced By: A3529810012
999
ROLLER ASSEMBLY , Replaced By: A3529810112
999
ROLLER ASSEMBLY , Replaced By: A3529810012
999
ROLLER ASSEMBLY , Replaced By: A3529810112
999
GEAR , Replaced By: A3222630614, +001A3222631744
999
SYNCHRONIZER BODY 4TH AND 5TH SPEED, UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
GEAR ,349152, Replaced By: A3222602044, +001A3222630614
999
999
999
BUSHING , Replaced By: A3572680150
999
BUSHING SHIFT LEVER TO FRONT SHIFTING TUBE
999
999
PIN SHIFT LEVER TO FRONT SHIFTING TUBE
999
999
BUSHING , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
999
THRUST WASHER , Replaced By: A3212624862
999
THRUST WASHER , Replaced By: A3212624762
999
THRUST WASHER , Replaced By: A3212624662
999
THRUST WASHER , Replaced By: A3212624562
999
THRUST WASHER , Replaced By: A3212624462
999
THRUST WASHER , Replaced By: A3212624362
999
THRUST WASHER , Replaced By: A3212623862
999
THRUST WASHER , Replaced By: A3212623762
999
THRUST WASHER , Replaced By: A3212623662
999
THRUST WASHER , Replaced By: A3212623562
999
THRUST WASHER , Replaced By: A3212623462
999
THRUST WASHER , Replaced By: A3212624262
999
THRUST WASHER , Replaced By: A3212624162
999
THRUST WASHER , Replaced By: A3212624062
999
THRUST WASHER , Replaced By: A3212623962
999
BUSHING20X30 MM,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
999
SPRING , DISCONTINUED,PART IS NO LONGER REQUIRED
999
BALL SOCKET , DISCONTINUED,PART IS NO LONGER REQUIRED
999
PIN INTERMEDIATE LEVER TO TRANSMISSION CASE
999
999
999
999
999
ROLLER ASSEMBLY , Replaced By: A3459817312
999
ROLLER ASSEMBLY , Replaced By: A3459817212
