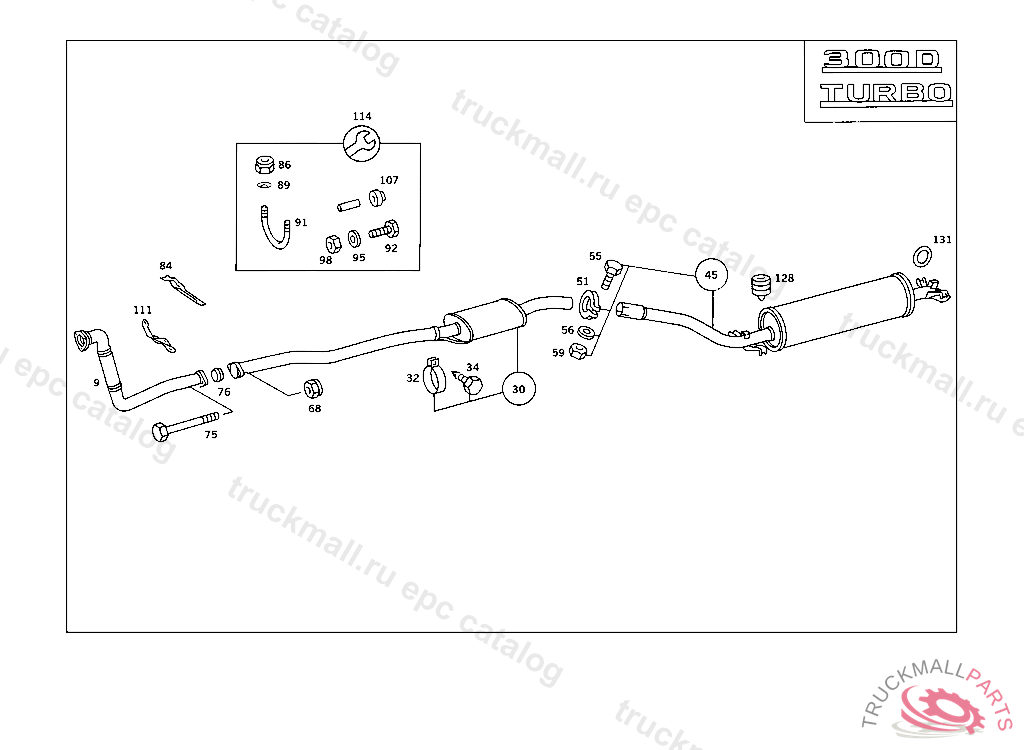

Поз.
Артикул
Описание
9
EXHAUST PIPE , CALIFORNIA UP TO END OF MODEL YEAR'84
9
EXHAUST PIPE , Replaced By: A1234901720
30
EXHAUST MUFFLER WITH PIPE , Replaced By: A1234908315
30
EXHAUST MUFFLER WITH PIPE CENTRAL
32
CLAMP HEAT SHIELD MOUNTING
34
SHEET METAL SCREW BRACKET TO WINDOW SILL
45
EXHAUST MUFFLER WITH PIPE REAR
45
EXHAUST MUFFLER WITH PIPE , Replaced By: A1234908415
51
CLAMP
55
SCREW REAR AXLE REGULATING SOLENOID VALVE
56
WASHER BRACKET TO CROSS MEMBER
59
NUT
68
NUT POWER CYLINDER TO BRACKET
75
SCREW VALVE TO BRACKET M 8X55
76
SEAL RING FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE E36 AMG
84
BRACKET EXHAUST PIPE TO TRANSMISSION
86
NUT POWER CYLINDER TO BRACKET
89
DISC SPRING EXHAUST PIPE TO BRACKET
91
CLAMPING BRACKET FRONT EXHAUST PIPE TO BRACKET
92
SCREWM 8X40
92
SCREW PIPE CLAMP
95
WASHER HIGH PRESSURE HOSE TO BRACKET
98
NUT
107
RUBBER RING BRACKET TO MOUNTING PLATE OR TO TRANSMISSION
111
PLATE
114
REPAIR KIT FRONT EXHAUST PIPE SUSPENSION,A 363212 ONLY APPLICABLE TO VEHICLES EQUIPPED WITH CATALYST
128
RUBBER BUFFER IN FRONT OF,AND BEHIND,POSTERIOR MUFFLER
131
DAMPING PAD EXHAUST PIPE SUSPENSION
