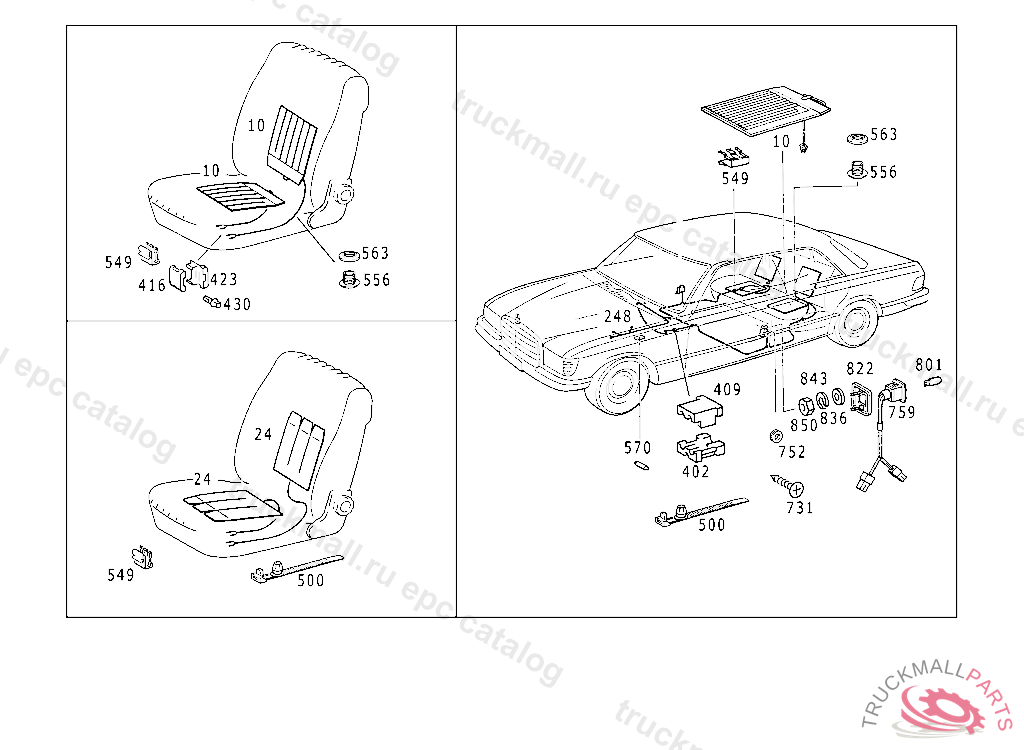

Поз.
Артикул
Описание
10
HEATING PAD BACKREST AND SEAT CUSHION
24
HEATING PAD BACKREST AND SEAT CUSHION
24
HEATING PAD BACKREST AND SEAT CUSHION
248
ELECTRIC CABLE REAR SEAT
402
PLUG HOUSING
409
COVER
416
PIN BUSHING HOUSING , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
423
COVER , 10/20 UP TO CHASSIS 4 411810,50/60 UP TO CHASSIS 4 414810
430
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
500
LOOM TIE TO MOUNT PLASTIC PIPING
500
LOOM TIE
500
LOOM TIE , UP TO CHASSIS: 108.012 UNTIL PRODUCTION STOP 108.016 042417 108.018,019 043374 109.016 002452
500
LOOM TIE
549
CLIP PLUG TO REAR PILLAR
556
EYE
556
EYE
563
EYE
570
FUSEA16
570
FUSE , Replaced By: N072581008101
570
FUSEA8
731
SHEET METAL SCREW
731
SHEET METAL SCREW
752
GROMMET
759
SWITCH SEAT HEATING
801
BULB
822
COVERING SWITCH TO INSTRUMENT PANEL, UP TO IDENT NO.: 5 220080+ FROM IDENT-NO.: 6 900001-6 900052
836
WASHER BRACKET MOUNTING
843
LOCK WASHER BRACKET TO COVERING
850
NUT PLUG SOCKET TO BRACKET,5 906887
