Поз.
Артикул
Описание

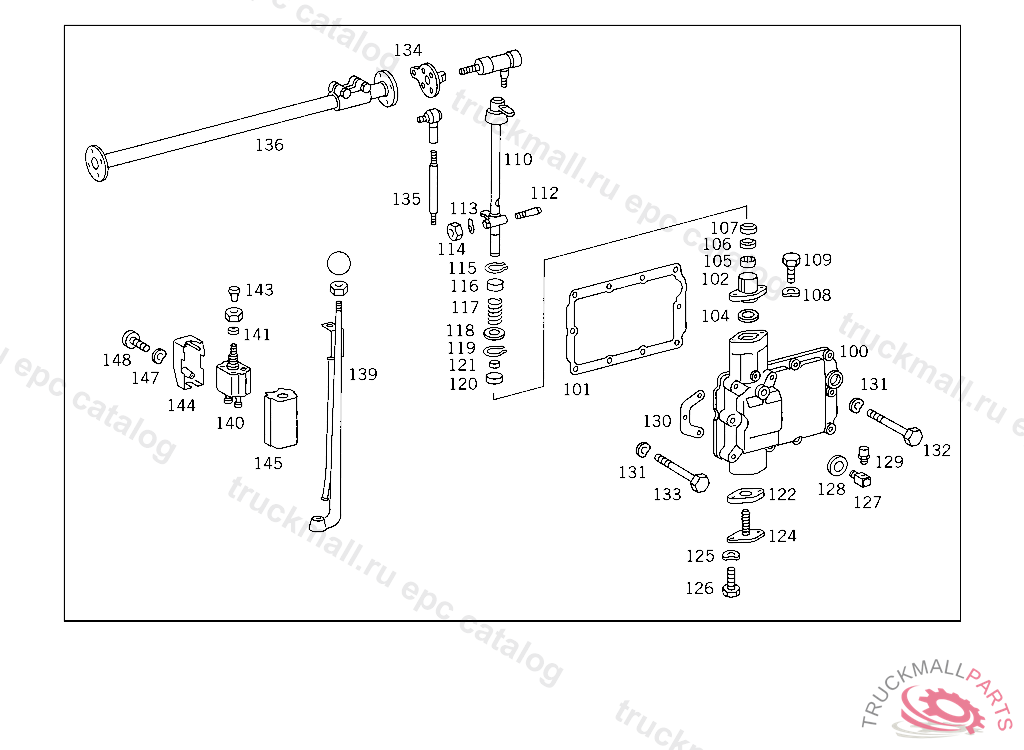

100
COVER
101
GASKET CASE COVER
102
BEARING COVER AT TRANSMISSION CASE REAR COVER
104
SEAL RING BEARING COVER TO TRANSMISSION CASE, TO 336 268 00 34
105
BUSHING , 10/50 UP TO TRANSMISSION 279825,20/60 FROM TRANSMISSION 000001
105
BUSHING , Replaced By: A0002685950
105
BUSHING , Replaced By: A0002685650
106
SEAL RING , TO 336 268 00 34,336 268 02 34
107
BOOT
108
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
108
SPRING WASHER , Replaced By: N000137008212
109
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
109
SCREW , Replaced By: N304017008027
110
SHIFTING ROD
112
PIN
113
LOCK PLATE
114
NUT
115
LOCK RING
116
BUSHING SHIFTING ROD
117
SPRING SHIFTING ROD
118
SPACER WASHER SHIFTING SHAFT
119
LOCK RING
120
BUSHING SHIFTING ROD
121
BUSHING SHIFTING ROD
122
FLANGE SHIFTING ROD
124
COVER
125
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
125
SPRING WASHER , Replaced By: N000137008212
126
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
126
SCREW , Replaced By: N304017008027
127
FITTING BREATHER
128
SEAL RING CONNECTOR
129
VALVE BREATHER, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
130
BRACKET
131
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
131
SPRING WASHER , Replaced By: N000137008212
132
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
132
SCREW , Replaced By: N304017008027
133
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL
133
SCREW , Replaced By: N304017008053
134
CONNECTOR
134
CONNECTOR , Replaced By: A0002682328
135
SHIFTING ROD
136
SHAFT
139
SHIFT LEVER ,946632
140
SWITCH TWO-SPEED REAR AXLE CONTROL,4 188089
140
SWITCH , Replaced By: A3445457111
141
NUT ,928519
141
NUT SWITCH TO APPARATUS PLATE
143
BUTTON SWITCH,928519
144
BOOT ,928519
145
BOOT SWITCH,928519
147
SPRING WASHER ALTERNATOR CONNECTION D+
148
SCREW
999
BREATHER , Replaced By: A3432640089
999
COVER SHIFTING ROD, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
999
TRANSMISSION CASE COVER COUNTERSHAFT,FRONT,279826
999
TRANSMISSION CASE
999
GASKET , ONLY FOR TRANSMISSION HAVING SWIVEL-MOUNTED CYLINDER
999
GEAR 45 TEETH
999
OIL BAFFLE
999
HOUSING
999
RING HALF AS REQUIRED 6.50 MM,047093
999
BOOT SHIFTING SHAFT
999
CONNECTOR ANGLE DRIVE
999
COUPLER ANGLE DRIVE
999
FLEXIBLE SHAFT , Replaced By: A0035420807
999
MAGNET
999
SHELL TWO-SPEED REAR AXLE CONTROL,4 188089
999
SHELL TWO-SPEED REAR AXLE CONTROL,4 188089
999
NUT , NOT USED
999
NUT , Replaced By: A0029906251
999
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
999
BUTTON , Replaced By: A0005451837
999
PIN BUSHING , Replaced By: A0075458226
999
BUTTON TWO-SPEED REAR AXLE CONTROL,4 188089
999
SWITCH , Replaced By: A3445457111
999
CLAMP CABLE HARNESS MOUNTING,4 494992
999
BOOT *** 2.5 MM2
999
SPRING 1ST AND 2ND SPEED
999
PLUG , Replaced By: A0009973435
999
PLUG , Replaced By: A0009977535
999
PLUG , Replaced By: A3529970032
999
SCREW PLUG OIL FILLING, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
999
PIN BUSHING HOUSING 4-POLE
999
CYLINDR. ROLLER BEARING , Replaced By: N005412770009
999
WASHER BRACKET TO COVERING
999
WASHER
999
LOCK AS REQUIRED 2,55 MM
999
LOCK , Replaced By: A0099947141
999
LOCK AS REQUIRED 2.65 MM
999
FITTING , Replaced By: A0039979072
999
FLEXIBLE SHAFT , Replaced By: A0025424707
999
FLEXIBLE SHAFT3750 MM
999
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
999
PIN BUSHING HOUSING UNIPOLAR
999
PIN BUSHING HOUSING UNIPOLAR
999
NEEDLE BEARING , Replaced By: A0002683050
999
NEEDLE BEARING , Replaced By: A0059818010
999
NEEDLE BEARING , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002682150
999
NEEDLE BEARING SHIFTING FORK,10/20879180, 50/60880936
999
SCREW
999
TS DOUBLE FITTING SOLENOID VALVE
999
NUT POTENTIOMETER TO INSTRUMENT PANEL
999
SPRING SHIFTING SHAFT,BOTTOM
999
SPRING SHIFTING SHAFT
999
SPRING SHIFT CASE
999
FLEXIBLE SHAFT4600 MM,5 223296
999
SEAL RING SHIFTING SHAFT,TOP, 10/50 UP TO TRANSMISSION 279825,50/60 FROM TRANSMISSION 000001
999
FITTING , Replaced By: A0029906071
999
NEEDLE BEARING , Replaced By: A0059818010
999
NEEDLE BEARING , Replaced By: A0119811210
999
SEAL RING SHIFTING SHAFT
999
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
999
LOCK AS REQUIRED 65X2.6 MM
999
NEEDLE BEARING
999
CLAMP
999
CLAMP WIRE CABLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
999
CLAMP FLEXIBLE SHAFT
999
CLAMP , Replaced By: N072571001035
999
HANDLE
999
LOCK DRIVE SHAFT,047092
999
CLAMP
999
CLAMP ELECTRIC CABLE TO FRAME SIDE MEMBER
999
SCREW SHIFTING TUBE TO TRANSMISSION
999
CLAMP FUEL LINE TO CAB CONSOLE,5 092216
999
CLAMP , Replaced By: A0005460875
999
BOOT SHIFT LEVER BEARING COVERING
999
BRACKET AIR HORN
999
TRANSMISSION , Replaced By: A3662601801, +001A6202600705, +001A3432640024, +001N000137008202, +001N000933008080, +001N000934008010
999
CONNECTOR SHIFT LEVER TO LEVER
999
BEARING BRACKET
999
SHIFTING ROD
999
TRANSMISSION , FROM CHASSIS 654647,TRANSMISSION S 6-80 INAPPLICABLE TO TYPES 370.051,052,061,062
999
TRANSMISSION
999
TRANSMISSION
999
TRANSMISSION
999
TRANSMISSION , Replaced By: A3662601801, +001A3462606005, +001A3432640024, +001N000137008202, +001N000933008080, +001N000934008010
999
LEVER
999
ELECTRIC CABLE FROM CONNECTION POINT TO ADDITIONAL GEARBOX VALVE
999
ELECTRIC CABLE
999
COVER SHIFT LEVER BEARING COVERING
999
PAD
999
BUSHING
999
BUSHING PAWL TO ROD END,5 443047
999
SPRING (RELEASE SPRING), ON L FROM IDENT NO. 008464 ALSO INSTALLED ON 008448-008455
999
SHIFTING FORK , Replaced By: A0002601130
999
COVERING
999
SHIFTING FORK , Replaced By: A0002601330
999
SHIFTING FORK , Replaced By: A0002601030
999
PULL ROD 1ST AND 2ND SPEED,10/20879179, 50/60880935
999
SHAFT GEARSHIFT MECHANISM
999
PULL ROD , Replaced By: A0002683825
999
SHAFT
999
SHAFT , Replaced By: A0002604338, +001A0039940141
999
SHIFT LEVER ,946631, Replaced By: A3362602039, +001A0015452411, +001A0005450730, +001A0005450830, +001A0005453837, +001A0029906251
999
SHIFT LEVER ,946632
999
TRANSMISSION AK 6-80 HILL GEAR WITH GV 80,FIRST SPEED RATIO 1:9,0,SIXTH SPEED RATIO 1:1,0, UP TO CHASSIS 654646 FOR USE WITH TRANSMISSION AK 6-80
999
TRANSMISSION
999
TRANSMISSION , Replaced By: A3362603601, +001A3462606005, +001A3432640024, +001N000137008202, +001N000933008080, +001N000934008010
999
TRANSMISSION CASE ,059727, Replaced By: A0002611401, +001A0002611619, +001A0002613880, +004N000933010105
999
TRANSMISSION CASE , Replaced By: A0002612301, +001A0002611619, +004N000933010129
999
SLIDING COLLAR 1ST AND 2ND SPEED
999
FOLLOWER , Replaced By: A0002620240
999
SPACER WASHER , Replaced By: A0002621351
999
SPACER WASHER4.90 MM
999
SLIDING COLLAR , Replaced By: A0002621923
999
SYNCHRONIZER BODY , Replaced By: A0002622935
999
FOLLOWER 5TH AND 6TH SPEED
999
SPACER WASHER , Replaced By: A0002621051
999
SYNCHRONIZER BODY , Replaced By: A0002623035
999
FOLLOWER , Replaced By: A0002620640
999
SPACER WASHER4.30 MM
999
SYNCHRONIZER BODY , Replaced By: A0002622235
999
FOLLOWER , Replaced By: A0002620340
999
SPACER WASHER , Replaced By: A0002620251
999
SPACER WASHER , Replaced By: A0002620351
999
SYNCHRONIZER RING 1ST AND 2ND SPEED TO 336 262 02 35,10/20879180, 50/60880936
999
SPACER WASHER COUNTERSHAFT,AS REQUIRED 3.40 MM
999
SYNCHRONIZER RING 3RD THRU 6TH SPEED TO 336 262 04 35,10/20879180, 50/60880936
999
SPACER WASHER COUNTERSHAFT,AS REQUIRED 3.10 MM
999
SPACER WASHER2.8 MM
999
RING HALF ,047092, Replaced By: A0002643629, +001A0002620373
999
SPACER WASHER AS REQUIRED 1.60 MM
999
VALVE BREATHER
999
RING HALF ,047092, Replaced By: A0002643729, +001A0002620373
999
SPACER WASHER AS REQUIRED 1.40 MM
999
COVER , Replaced By: A0009977535
999
RING HALF ,047092, Replaced By: A0002643829, +001A0002620373
999
END PIECE SPLITTER BOX
999
SPACER WASHER , Replaced By: A3362641052
999
HOUSING , Replaced By: A0002642802
999
COVER SHIFT CASE,SIDE, FROM CHASSIS 654647 TRANSMISSION S 6-80
999
RING HALF ,047092, Replaced By: A0002644529, +001A0002620373
999
SPACER WASHER AS REQUIRED 1.00 MM
999
OIL BAFFLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO TRANSMISSION 047092, Replaced By: A0002640164
999
RING HALF ,047092, Replaced By: A0002644629, +001A0002620373
999
FOLLOWER , Replaced By: A0002640746
999
SPACER WASHER AS REQUIRED 0.80 MM
999
RING HALF ,047092, Replaced By: A0002644729, +001A0002620373
