Поз.
Артикул
Описание

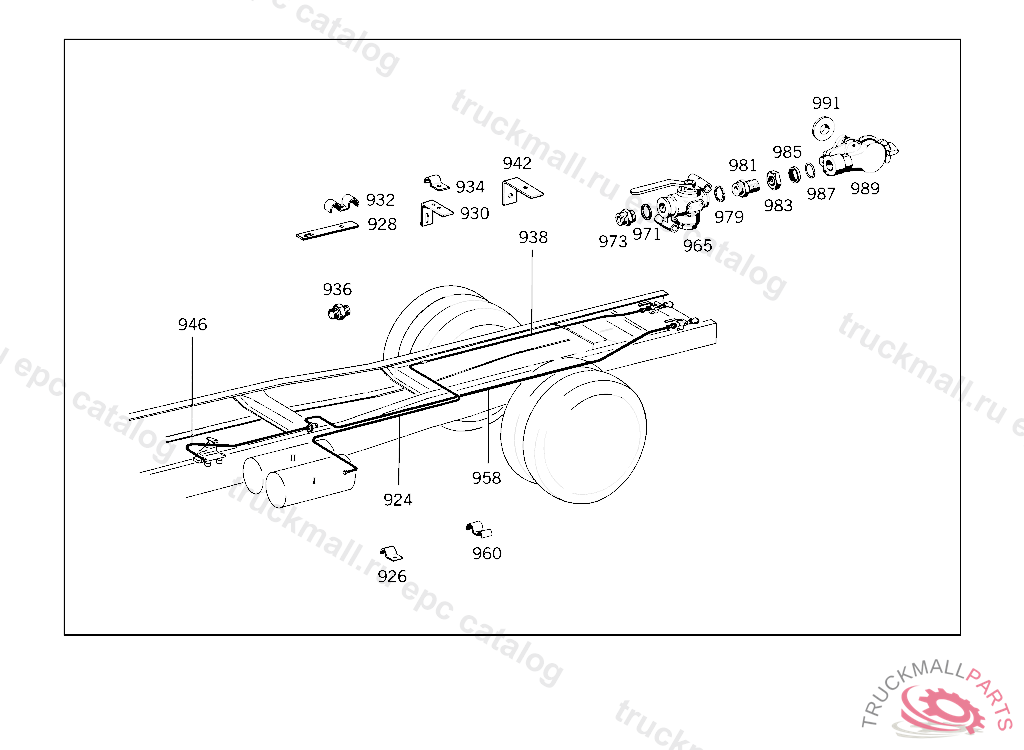

946
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
958
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
965
SHUT-OFF COCK
971
SEAL RING LINE CONNECTION
973
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
999
DIAPHRAGMTO 344 429 73 44
999
LINE , Replaced By: A0005516256
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
LINE , Replaced By: A0005516456
999
DIAPHRAGM
999
SHUT-OFF COCK , Replaced By: A0004291431
999
SHUT-OFF COCK
999
ELBOW FITTING AT AIR COMPRESSOR, 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
999
SEAL RING
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SEAL RINGTO 000 429 16 31,4 940458
999
BRAKE HOSE , Replaced By: A0004297335
999
VALVE , Replaced By: A0004299244
999
BRAKE HOSE , Replaced By: A0004297335
999
VALVE
999
VALVE
999
REPAIR KITTO 003 429 02 44
999
STRAINER PRESSURE REGULATOR
999
BRAKE VALVE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
VALVE , Replaced By: A0014295244
999
PRESSURE REGULATOR , Replaced By: A0004317906
999
CUP
999
VALVE , Replaced By: A0004320807
999
REPAIR KITTO 000 429 63 44,000 429 59 44
999
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
999
REPAIR KITTO 000 429 14 31,5 116581
999
REPAIR KIT , Replaced By: A0015860843
999
REPAIR KIT ,4 208907
999
REPAIR KIT
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
SCREW , UP TO CHASSIS 969301 ALSO INSTALLED ON 500001-535613,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535614-599999 SEE SA 20 143
999
CLAMP LINE CONNECTION
999
SEAL RING , Replaced By: A0029974545
999
HANDLETO 000 429 16 31,4 940458
999
PLUGTO 009 420 22 18,008 420 20 18
999
VALVE (OVERFLOW VALVE)
999
REPAIR KIT
999
REPAIR KITTO 001 429 52 44
999
REPAIR KITBOSCH
999
REPAIR KIT
999
REPAIR KITTO 000 429 40 44
999
VALVE
999
REPAIR KITKNORR
999
REPAIR KITTO 000 431 79 06,WABCO,475 304 201 0,
999
LOOM TIE , Replaced By: N916017020000
999
REPAIR KIT BRAKE BOOSTER
999
SEAL RING BRAKE SHOE ROLLER
999
SEAL RINGTO 000 429 16 31,4 940458
999
CLAMP FUEL LINE TO BRACKET
999
TOOTHED SEGMENT , Replaced By: A3124271024
999
CLAMP
999
BRACKET LINE TO CROSS MEMBER
999
BASE , Replaced By: A3142030084
999
CLAMP , Replaced By: A3129952420
999
PLUG , FROM REAR AXLE 060666 UP TO CHASSIS 969301 ALSO INSTALLED ON 500001-535613,FROM CHASSIS 4 311019 ALSO INSTALLED ON 535614-599999 SEE SA 20 143
999
CLAMP , Replaced By: A1109950401
999
SHIM BRACKET TO LEFT SIDE MEMBER
999
ROLLER , Replaced By: A3014200039, +002A0039971548
999
THRUST PIECE BRAKE SHOE TO BRAKE ANCHOR
999
BUSHING , Replaced By: A3464210550
999
SPACER WASHER , Replaced By: A3174210352
999
SPACER WASHER
999
BUSHING , UP TO CHASSIS 674067 EXCEPT FOR 500001-599999,673550,673631,673890,673916-673918,673922,673927
999
SPACER TUBE TRAILER BRAKE VALVE TO FRAME
999
BRAKE LINING , Replaced By: A3434230610
999
BRAKE LINING , Replaced By: A3434230710
999
BRAKE LINING , Replaced By: A3434230810
999
BRAKE SHOE ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
999
REPAIR KIT BRAKE SHOE ROLLER, UP TO CHASSIS 4 387020, FROM CHASSIS SEE SPARE PARTS LIST 739.0
999
BRAKE SHOE ,4 337020 FROM IDENT NO. 4 337021, SEE SEPARATE SPARE LIST 739.001
999
BEARING BRACKET RIGHT, UP TO CHASSIS 4 387020, FROM CHASSIS SEE SPARE PARTS LIST 739.0
999
BRAKE SHOE , Replaced By: A3354200119, +008A3354210610, +064A3079900297
999
BRAKE SHOE , Replaced By: A3354200119, +008A3354210610, +064A3079900297
999
BRAKE SHOE , Replaced By: A3354200119, +008A3354210710, +064A3079900297
999
BEARING BRACKET RIGHT
999
BRAKE SHOE , Replaced By: A3354200119, +002A3354210610, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200119, +002A3354210710, +016A3079900297
999
ROD
999
BRAKE SHOE WITH LINING 16.00 MM
999
BRAKE SHOE WITH LINING 17.00 MM
999
BRAKE SHOE , Replaced By: A3354200019, +002A3354230210, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200019, +002A3354230310, +016A3079900297
999
BRAKE SHOE , Replaced By: A3354200019, +002A3354230410, +016A3079900297
999
PIVOT PIN ,036408, Replaced By: A3354210218, +001A3354230144, +002N074361022203, +002N074361022351
999
THRUST SHACKLE ,036408, Replaced By: A3354230144, +002A3354210218, +002N074361022204, +002N074361022351
999
BUSHING , Replaced By: A3634230150
999
BRAKE LINING , Replaced By: A3434230610
999
BRAKE LINING , Replaced By: A3434230710
999
BRAKE LINING , Replaced By: A3434230810
999
STRAP
999
SHIM
999
PLATE CONSOLE TO SIDE MEMBER
999
PARKING BRAKE
999
BRAKE INTERMEDIATE SHAFT
999
BEARING BRACKET , Replaced By: A3364203478
999
ROD
999
BRACKET
999
ROLLER , Replaced By: A3014200039, +002A0039971548
999
REPAIR KIT ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3 NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIER KIT
999
BUSHING , Replaced By: A3464210550
999
BRAKE LINING , Replaced By: A3494210710
999
BUSHING , 036466825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
999
BUSHING , Replaced By: A3634230150
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
SCREW
999
SCREWM 5X20
999
SCREW , Replaced By: N007985005175
999
SCREW SHIFT CASE TO SLOTTED GATE
999
SCREW
999
COTTER PIN HAND BRAKE ROD TO HAND BRAKE LEVER
999
COTTER PIN ROD TO LEVER
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN HYDRAULIC CYLINDER TO SWIVEL ARM, FOR USE WITH MERCEDES-BENZ PLATFORM
999
WASHER , Replaced By: N000433005304
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
CLAMP , Replaced By: N000000000667
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO STEERING COLUMN END
999
SCREW FOR SPRING CLAMPS,5 484789
999
SCREW , Replaced By: N308676012011
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
999
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
999
NUT BRACKET TO SIDE MEMBER,K 035196
999
NUT
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT , Replaced By: N304032005005
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW PIPE CLAMP
999
SCREW VALVE TO BRACKET
999
NUT SUCTION LINE TO OIL PUMP
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING , Replaced By: A0029971872
999
T-FITTING , Replaced By: A0009902370
999
DOUBLE FITTING , Replaced By: A0019972872
999
SCREW HOOK TO BRACKET
999
SEAL RING LINE CONNECTION
999
CLAMP LINE TO BRACKET, 10/20 UP TO CHASSIS 4 191895,50/60 UP TO CHASSIS 4 189545
999
CAP NUTTO 353 420 00 88
999
SCREW BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT, 10/20 UP TO CHASSIS 4 347 646,50/60 UP TO CHASSIS 4 345 731
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BEARING BRACKET TO SIDE MEMBER M 14X1.5X28
999
SCREW , Replaced By: A0029909704
999
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
999
SCREW BRACKET TO SIDE MEMBER M 12X38
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW BEARING BRACKET TO FRAME
999
SCREW , Replaced By: N308676012012
999
SCREW PISTON TO AIR-SPRING-BELLOWS SUPPORT,K 103333
999
SCREW RUBBER MOUNTING TO SUPPORTING ARM M 16X1.5X60
999
SCREW TORSION BAR TO SHACKLE,5 903514
999
SCREW ,5 903514, Replaced By: N000960012353
999
SCREW , Replaced By: N308765012007
999
SCREW , Replaced By: N000960012384
999
SCREW , Replaced By: N308676012031
999
SCREW
999
SCREW CONSOLE TO SIDE MEMBER M 12X1.5X48, 10/20 UP TO CHASSIS 4 829901, 50/60 UP TO CHASSIS 4 899847
999
SCREW CONSOLE TO SIDE MEMBER M 12X1.5X35, UP TO IDENT NO. 734559 EXCEPT FOR 500001-599999
999
NUT
999
NUT STEERING SHAFT TO BOX, 738938
999
NUT , Replaced By: N308673016001
999
NUT BRACKET TO SIDE MEMBER
999
NUT , Replaced By: N308673014001
999
NUT STRAP TO SUPPORT
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT BALL PIVOT TO LEVER
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW COVER PLATE TO BRACKET
999
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
999
WASHER BOOT TO CAB FLOOR
999
SPRING WASHER LICENSE PLATE TO BRACKET
999
WASHER
