Поз.
Артикул
Описание

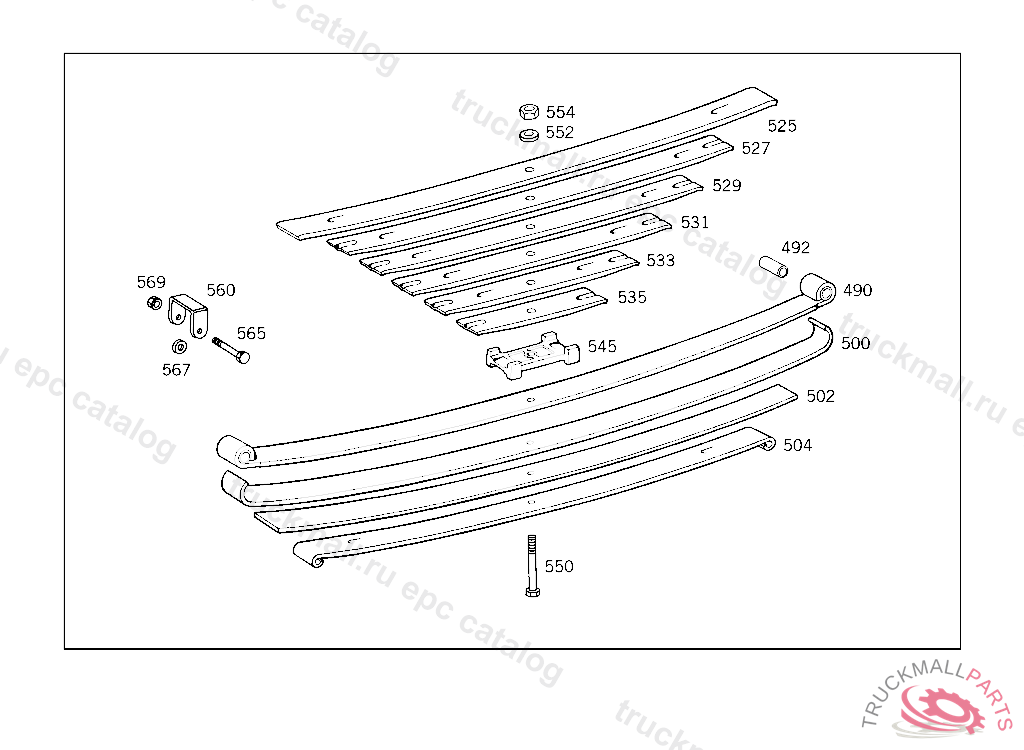

490
SPRING LEAFNO.1
490
SPRING LEAFNO.1, 869581
490
SPRING LEAF , 336.351,361 UP TO IDENT NO. 706814, 336.352,362 UP TO IDENT NO. 693530, 336.355,365 UP TO IDENT NO. 690917, Replaced By: A3463205393, +NBA3523230976
492
BUSHING
492
BUSHING
500
SPRING LEAF
500
SPRING LEAFNO.2, 869581
502
SPRING LEAFNO.3
504
SPRING LEAFNO.4
525
SPRING LEAFNO.1
527
SPRING LEAF NO.2
529
SPRING LEAFNO.3
531
SPRING LEAFNO.4
533
SPRING LEAFNO.5
533
SPRING LEAF , Replaced By: A3893240144
535
SPRING LEAFNO.6
535
SPRING LEAF , Replaced By: A3893240145, +001A3893240144
545
SPACER REAR SPRING
545
SPACER
550
SPRING BOLT
552
WASHER BRACKET TO SPARE WHEEL CARRIER
554
NUT CONTROL ARM TO REAR AXLE
560
SPRING CLAMP ,4 7434945 193394, Replaced By: A6203240433, +001N000963012011
560
SPRING CLAMP , Replaced By: A0003244233
560
SPRING CLAMP , Replaced By: A0023219833
560
SPRING CLAMP , Replaced By: A0023218933
565
SCREW PLATFORM MOUNTING
567
WASHER FOR SPRING CLAMPS
569
NUT STRAP TO SUPPORT
999
SPRING CLAMP , Replaced By: A0023219233
999
SPRING CLAMP ,5 193394, Replaced By: A6203240733, +001N000963012011
999
THREADED UNION , 336.351,361 UP TO IDENT NO. 706814, 336.352,362 UP TO IDENT NO. 693530, 336.355,365 UP TO IDENT NO. 690917
999
BUSHING FRONT
999
SHACKLE PIN , Replaced By: A3295860132
999
SHACKLE PIN , Replaced By: A3295860232
999
THRUST WASHER REAR SPRING REAR PIN TO SHACKLE, 336.351,361 UP TO IDENT NO. 706814, 336.352,362 UP TO IDENT NO. 693530, 336.355,365 UP TO IDENT NO. 690917
999
REPAIR KIT , Replaced By: A3295860132
999
REPAIR KIT , Replaced By: A3295860232
999
RUBBER BUFFER FRONT SPRING
999
REPAIR KIT , Replaced By: A3293200265
999
SCREW , Replaced By: A3873210071
999
BEARING BRACKET REAR STABILIZER
999
SHACKLE PIN PARTS KIT, 336.351,361 UP TO IDENT NO. 706814, 336.352,362 UP TO IDENT NO. 693530, 336.355,365 UP TO IDENT NO. 690917
999
SHACKLE , 336.351,361 UP TO IDENT NO. 706814, 336.352,362 UP TO IDENT NO. 693530, 336.355,365 UP TO IDENT NO. 690917, Replaced By: A3463205063, +001A3353250030, +001A3529900337, +002N000125010504, +001N913002010000
999
SHACKLE PIN , Replaced By: A3355860132
999
SHACKLE PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3895860132
999
PLATE
999
REPAIR KIT , Replaced By: A3355860132
999
REPAIR KIT , Replaced By: A3353200065
999
SPRING LEAFNO.5
999
SPRING LEAFNO.6
999
SPRING LEAFNO.7
999
SPRING LEAFNO.8
999
SPRING LEAFNO.9
999
SPRING LEAFNO.10
999
SPRING LEAF , Replaced By: A3893240121
999
SPRING LEAF , Replaced By: A3893240122, +002A3893240121
999
BEARING BRACKET , 758897, Replaced By: A3463265163, +003N000137016200, +003N000961016026
999
SCREW (SPRING BOLT)
999
SCREW (SPRING BOLT)
999
SPRING LEAFNO.11
999
SPRING LEAFNO.12
999
REPAIR KIT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3895860132
999
CONSOLE , Replaced By: A3933200678
999
CONSOLE , Replaced By: A3933261163, +001N000961016081
999
SPACER WASHER , Replaced By: A3873230252
999
BEARING BRACKET , Replaced By: A3933200678, +001A3933260152, +001N913004016004
999
BEARING BRACKET SHACKLE TO FRAME,5 904660
999
BUSHING FRONT
999
SPRING CLAMP SPRING EYE,FRONT AND REAR,5 1933955 533057
999
SPRING CLAMP , Replaced By: A6203240433
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
999
SPRING WASHER BRACKET TO TIMING CASE
999
LOCK RING SHACKLE TO CONSOLE TO 393 326 00 63,965965
999
NUT , Replaced By: N308673014001
999
NUT BRACKET TO SIDE MEMBER
999
NUT , 336.351,361 UP TO IDENT NO. 706814, 336.352,362 UP TO IDENT NO. 693530, 336.355,365 UP TO IDENT NO. 690917
999
STUD BOLT
999
SCREW BRACKET TO SHACKLE,4 114583
999
SCREW , Replaced By: N308765012007
999
SCREW BRACKET TO FRAME M 12X35
999
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
999
SCREW CONSOLE TO SIDE MEMBER
999
SCREW , Replaced By: N308676014020
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO SUPPORT
999
SCREW FOR SPRING CLAMPS
999
WASHER , Replaced By: N007349013005
999
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
999
GREASE NIPPLE , Replaced By: N071412008102
999
GREASE NIPPLE
999
GREASE NIPPLE
999
NUT BRACKET TO SIDE MEMBER,K 035196
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
SCREW FOR SPRING CLAMPS,5 484789
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
