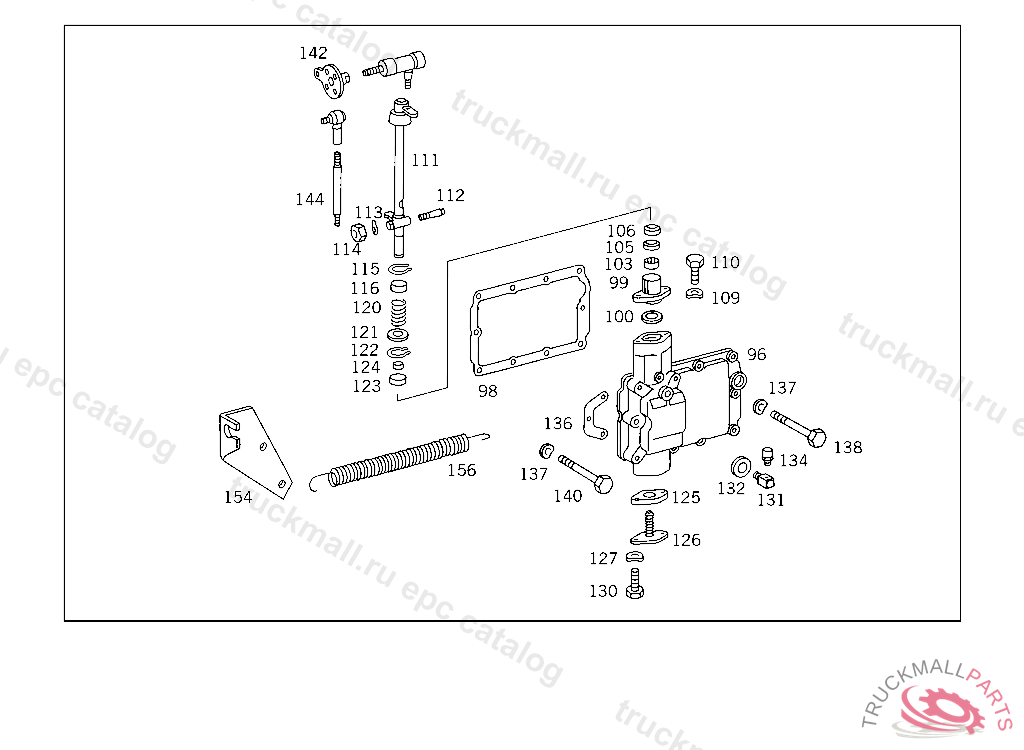

Поз.
Артикул
Описание
96
COVER
98
GASKET CASE COVER
99
BEARING COVER AT TRANSMISSION CASE REAR COVER
100
SEAL RING BEARING COVER TO TRANSMISSION CASE, TO 336 268 00 34
103
BUSHING , 10/50 UP TO TRANSMISSION 279825,20/60 FROM TRANSMISSION 000001
103
BUSHING , Replaced By: A0002685950
103
BUSHING , Replaced By: A0002685650
105
SEAL RING , TO 336 268 00 34,336 268 02 34
106
BOOT
109
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
109
SPRING WASHER , Replaced By: N000137008212
110
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
110
SCREW , Replaced By: N304017008027
111
SHIFTING ROD
112
PIN
113
LOCK PLATE
114
NUT
115
LOCK RING
116
BUSHING SHIFTING ROD
120
SPRING SHIFTING ROD
121
SPACER WASHER SHIFTING SHAFT
122
LOCK RING
123
BUSHING SHIFTING ROD
124
BUSHING SHIFTING ROD
125
FLANGE SHIFTING ROD
126
COVER
127
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
127
SPRING WASHER , Replaced By: N000137008212
130
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
130
SCREW , Replaced By: N304017008027
131
FITTING BREATHER
132
SEAL RING CONNECTOR
134
VALVE BREATHER, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
136
BRACKET
137
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
137
SPRING WASHER , Replaced By: N000137008212
138
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
138
SCREW , Replaced By: N304017008027
140
SCREW , Replaced By: N304017008053
142
CONNECTOR
142
CONNECTOR , Replaced By: A0002682328
144
PULL ROD SHIFTING TRANSFER, TO BE ADAPTED DURING ASSEMBLYK 142858
144
PULL ROD , Replaced By: N900331012338
154
BRACKET PULL ROD
156
SPRING
999
BREATHER , Replaced By: A3432640089
999
TRANSMISSION CASE COVER COUNTERSHAFT,FRONT,279826
999
BOOT SHIFTING SHAFT
999
SPRING 1ST AND 2ND SPEED
999
PLUG , Replaced By: A0009973435
999
PLUG , Replaced By: A0009977535
999
PLUG , Replaced By: A3529970032
999
SCREW PLUG OIL FILLING, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
999
SEAL RING P.T.O. SHIFT LEVER
999
NEEDLE BEARING , Replaced By: A0002683050
999
NEEDLE BEARING , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002682150
999
NEEDLE BEARING SHIFTING FORK,10/20879180, 50/60880936
999
SPRING SHIFTING SHAFT,BOTTOM
999
SPRING SHIFTING SHAFT
999
SPRING SHIFT CASE
999
SEAL RING SHIFTING SHAFT
999
HANDLE
999
SCREW SHIFTING TUBE TO TRANSMISSION
999
BOOT SHIFT LEVER BEARING COVERING
999
CONNECTOR SHIFT LEVER TO LEVER
999
BEARING BRACKET
999
SHIFTING ROD
999
TRANSMISSION , FROM CHASSIS 654647,TRANSMISSION S 6-80 INAPPLICABLE TO TYPES 370.051,052,061,062
999
TRANSMISSION
999
TRANSMISSION
999
TRANSMISSION , Replaced By: A3662602401, +001A6202600705, +001A3432640024, +001N000137008202, +001N000933008080, +001N000934008010
999
TRANSMISSION , Replaced By: A3662602401, +001A3462606005, +001A3432640024, +001N000137008202, +001N000933008080, +001N000934008010
999
LEVER
999
COVER SHIFT LEVER BEARING COVERING
999
PAD
999
BUSHING
999
BUSHING PAWL TO ROD END,5 443047
999
SPRING (RELEASE SPRING), ON L FROM IDENT NO. 008464 ALSO INSTALLED ON 008448-008455
999
SHIFTING FORK , Replaced By: A0002601130
999
SHIFTING FORK , Replaced By: A0002601330
999
SHIFTING FORK , Replaced By: A0002601030
999
PULL ROD 1ST AND 2ND SPEED,10/20879179, 50/60880935
999
PULL ROD , Replaced By: A0002683825
999
SHAFT , Replaced By: A0002604338, +001A0039940141
999
TRANSMISSION
999
TRANSMISSION
999
TRANSMISSION , Replaced By: A3662603001, +001A3462606005, +001A3432640024, +001N000137008202, +001N000933008080, +001N000934008010
999
TRANSMISSION CASE ,059727, Replaced By: A0002611401, +001A0002611619, +001A0002613880, +004N000933010105
999
SLIDING COLLAR 1ST AND 2ND SPEED
999
FOLLOWER , Replaced By: A0002620240
999
SPACER WASHER , Replaced By: A0002621351
999
SPACER WASHER4.90 MM
999
SLIDING COLLAR , Replaced By: A0002621923
999
SYNCHRONIZER BODY , Replaced By: A0002622935
999
FOLLOWER 5TH AND 6TH SPEED
999
SPACER WASHER , Replaced By: A0002621051
999
SYNCHRONIZER BODY , Replaced By: A0002623035
999
FOLLOWER , Replaced By: A0002620640
999
SPACER WASHER4.30 MM
999
SYNCHRONIZER BODY , Replaced By: A0002622235
999
FOLLOWER , Replaced By: A0002620340
999
SPACER WASHER , Replaced By: A0002620251
999
SPACER WASHER , Replaced By: A0002620351
999
SYNCHRONIZER RING 1ST AND 2ND SPEED TO 336 262 02 35,10/20879180, 50/60880936
999
SPACER WASHER COUNTERSHAFT,AS REQUIRED 3.40 MM
999
SYNCHRONIZER RING 3RD THRU 6TH SPEED TO 336 262 04 35,10/20879180, 50/60880936
999
SPACER WASHER COUNTERSHAFT,AS REQUIRED 3.10 MM
999
SPACER WASHER2.8 MM
999
VALVE BREATHER
999
END PIECE SPLITTER BOX
999
COVER SHIFT CASE,SIDE, FROM CHASSIS 654647 TRANSMISSION S 6-80
999
SPRING SPLITTER BOX
999
SPRING SPLITTER BOX
999
SPRING 3RD THRU 6TH SPEED TO 336 262 07 34
999
SHIFTING FORK , Replaced By: A0002652402
999
SHIFTING FORK , Replaced By: A0002650903
999
CONNECTOR , Replaced By: A0002601475
999
BEARING COVER , Replaced By: A3362680234, +001A0049977046
999
BRACKET BRACING
999
ROLLER SHIFTING SHAFT
999
SLIDE , Replaced By: A0002680149
999
SPACER RING SHIFTING SHAFT,BOTTOM
999
SPACER WASHER SHIFTING SHAFT,BOTTOM 35,50 MM
999
SCREW , Replaced By: A0002650971
999
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002683974
999
SHAFT SHIFT CASE
999
BEARING COVER , Replaced By: A0002680034
999
FOLLOWER TOP
999
SPACER WASHER , Replaced By: A0002681552
999
COVER SHIFT CASE,BOTTOM
999
FOLLOWER SHIFTING SHAFT
999
SHIFTING SEGMENT , Replaced By: A0002680246
999
SPACER WASHER SHIFT CASE
999
GASKET , Replaced By: A3362680179
999
SHIFTING ROD , Replaced By: A0002685225
999
COVER
999
COVER , Replaced By: A0002681205
999
COVER , Replaced By: A0002610619, +001A3362640210, +001A3362640310, +001A3432640379, +001A0009972035, +004N000137008204, +004N000137010201, +002N000443008000, +004N000443008001, +004N000933008123, +004N000933010105
999
COVER , Replaced By: A0002611019, +004N000933010105
999
BUSHING
999
SPACER RING BRACKET TO REAR AXLE HOUSING,5 244591
999
LEVER
999
P.T.O.N 70-1 C
999
BEARING BRACKET , Replaced By: A3432601994
999
SHIFT LEVER
999
STUD SHIFT CASE TO TRANSMISSION
999
SYNCHRONIZER HUB , Replaced By: A0002621527
999
SLIDING COLLAR , 098046, Replaced By: A3432620423, +001A3432620527, +003A3432640993, +003N005401306000
999
SYNCHRONIZER HUB , ON 10/50 UP TO IDENT NO. 792024 EXCEPT FOR 500001-599999, ON 20/60 UP TO IDENT NO. 766368 EXCEPT FOR 500001-599999, Replaced By: A3432620527, +001A3432620423, +003A3432640993, +003N005401306000
999
SHIFT LEVER
999
SPRING
999
HOUSING , Replaced By: A0002641328
999
SLIDING COLLAR
999
BEARING BRACKET
999
GASKET ,290281, Replaced By: A0002642980, +001A0002642111
999
SHIFTING ROD 1ST AND 2ND SPEED, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
999
SHIFTING ROD 3RD AND 4TH SPEED, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
999
SHIFTING FORK 1ST AND 2ND SPEED, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
999
SLIDE P.T.O. SHIFT LEVER
999
SHIFTING ROD REVERSE SPEED, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
999
GASKET , Replaced By: A0002650280
999
LOCK WASHER , Replaced By: N912006012000
999
NUT
999
SPRING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3609930210
999
SCREW PLUG BELL HOUSING
999
CONNECTOR CLUTCH PEDAL RESET
999
TRANSMISSION , UP TO CHASSIS 654646 FOR USE WITH TRANSMISSION AK 6-80
999
TRANSMISSION AK 6-80 HILL GEAR,1ST SPEED RATIO 1:9.0,6TH SPEED RATIO 1:1.0, UP TO CHASSIS 654646 FOR USE WITH AK 6-80 TRANSMISSION
999
SHIFTING FORK REVERSE SPEED,10/50 792024, 20/60 766368
999
SHIFTING ROD , Replaced By: N900331012271
999
PIN
999
CONNECTOR
999
SHIFT LEVER
999
SCREW VALVE TO BRACKET, Replaced By: N304014008002
999
SCREW , Replaced By: N304017010002
999
FITTED WASHER AS REQUIRED 1.5 MM
999
FITTED WASHER AS REQUIRED 2 MM
999
SCREW VALVE TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER
