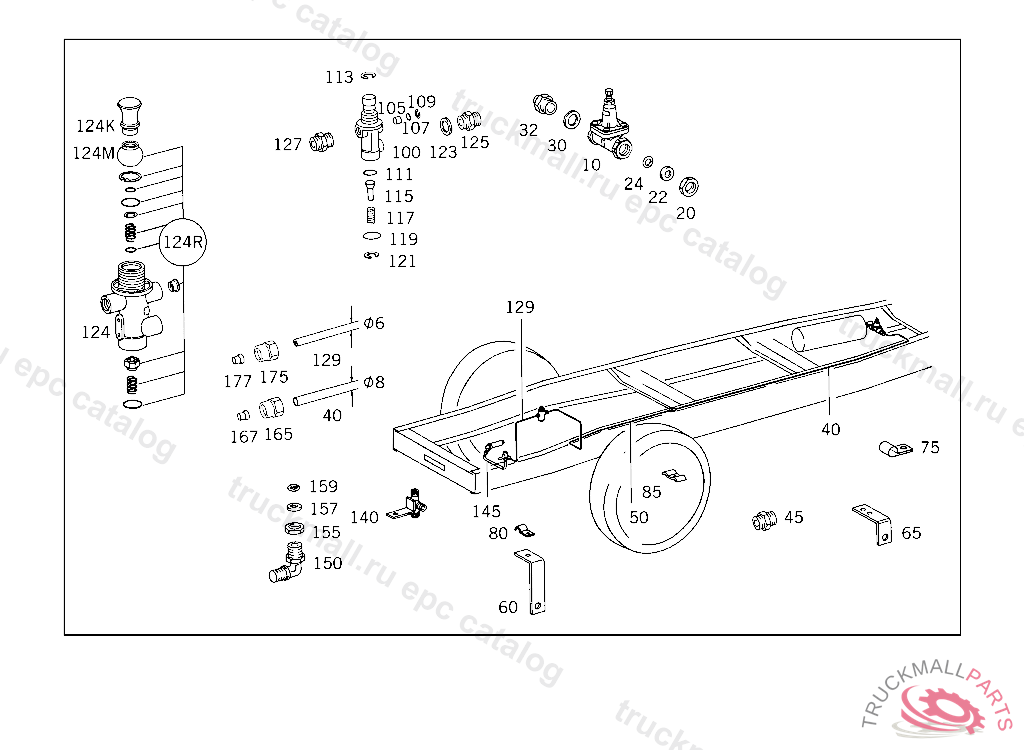

Поз.
Артикул
Описание
10
VALVE (OVERFLOW VALVE),REAR CARRIAGE SECONDARY CONSUMING UNITS "WABCO"
20
NUT CHECK VALVE TO AIR RESERVOIR
22
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
24
O-RING CHECK VALVE TO AIR RESERVOIR
30
SEAL RING LINE CONNECTION
32
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
32
FITTING , Replaced By: A0009970171
40
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
45
FITTING (PARTS KIT),LINE RUPTURE
45
CONNECTOR
45
FITTING , Replaced By: A0029905971
45
CONNECTION FITTING ,880809
50
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
60
BRACKET BRACKET TO REAR AXLE II,4 195521
65
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
65
BRACKET , Replaced By: A6205244040
75
CLAMP LINE MOUNTING
80
CLAMP TO CONNECT THE FUEL LINES
85
CLAMP
100
VALVE , NOT USED
105
STRAINER , 765123
107
STRAINER , 765123
109
SNAP RING , 765123
111
SEAL RING , 765123
113
LOCK RING 14X1 DIN 472. RETAINING RING
115
VALVE , 765123
117
SPRING , 765123
119
SEAL RING , 765123
121
LOCK RINGWABCO,5 433388
123
SEAL RING LINE CONNECTION
124
VALVE EXHAUST BRAKE OPERATING MECHANISM WESTINGHOUSE
124
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342301
124
VALVE , Replaced By: A0004342301
125
FITTING , Replaced By: A0019972572
125
FITTING LINE CONNECTION, Replaced By: N000000006446
127
TS DOUBLE FITTING SOLENOID VALVE
127
FITTING , Replaced By: A0039979072
127
FITTING , Replaced By: A0029906071
129
LINE , Replaced By: A0004296201
129
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
140
BRACKET AT CROSS MEMBER
145
HOSE
150
ELBOW FITTING TEST CONNECTION TO BRACKET
155
NUT
157
SEAL LOCKING VALVE TO SOLENOID VALVE, NOT USED
159
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
165
UNION NUT LINE CONNECTION
165
UNION NUT , Replaced By: N915017008100
167
GLAND LINE CONNECTION
175
UNION NUT
177
SEAL CONE
177
GLAND , Replaced By: A0019901667
999
DIAPHRAGM
999
DIAPHRAGM , Replaced By: A0004290745
999
DIAPHRAGM
999
DIAPHRAGMTO 001 429 48 44
999
VALVE (OVERFLOW VALVE)
999
STRAINERTO 000 434 21 01
999
CUP , Replaced By: A0004340486
999
CUPTO 000 434 10 01
999
CUP 3/2-WAY VALVE WABCO
999
BUSHINGTO 000 434 10 01
999
VALVE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 422115, Replaced By: A0004342101
999
VALVE EXHAUST BRAKE OPERATING MECHANISM BOSCH
999
REPAIR KITTO 000 429 63 44,000 429 59 44
999
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
999
REPAIR KIT , NOT USED
999
REPAIR KIT ADDITIONAL CLUSTER GEAR VALVE TO 000 434 06 01
999
HANDLETO 000 434 23 01
999
VALVE OVERFLOW VALVE
999
SPRINGTO 000 434 21 01
999
REPAIR KITTO 000 434 10 01, FOR VALVE HAVING THE BOSCH CHARACTERISTIC NUMBER 427
999
REPAIR KITTO 000 434 10 01, FOR VALVE HAVING THE BOSCH CHARACTERISTIC NUMBER 428
999
VALVE
999
REPAIR KIT 3/2-WAY VALVE BOSCH
999
REPAIR KIT 3/2-WAY VALVE WABCO
999
VALVE OVERFLOW VALVE
999
SEAL RINGTO 000 434 21 01
999
SEAL RINGTO 000 434 23 01
999
SEAL RINGTO 000 434 23 01
999
BRACKET
999
BASE , Replaced By: A3142030084
999
BRACKET AT CYLINDER BLOCK, REAR
999
CLAMP COMPRESSED AIR LINE TO BRACKET
999
SHIM BRACKET TO LEFT SIDE MEMBER
999
BRACKET
999
SCREW CLAMP MOUNTING M 6X16
999
SCREWM 5X20
999
WASHER , Replaced By: N000433005304
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
LOCK WASHER
999
LOCK WASHER SHIFT LEVER UPPER PART TO SHIFT LEVER LOWER PART
999
WASHER BOOT TO CAB FLOOR
999
SCREW , Replaced By: N304017008021
999
NUT STRAP TO SUPPORT
999
SCREW FUEL TANK TO SUPPORT
999
SCREW BEARING BRACKET TO FRAME
999
SCREW , Replaced By: N000961012051
999
SCREW , Replaced By: N000000001146
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
DOUBLE FITTING , Replaced By: A0019972872
999
SCREW PIPE CLAMP
999
NUT , Replaced By: N304032005005
999
NUT IN CASE OF SUBSEQUENT INSTALLATION
999
NUT
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
LOCK WASHER FITTING TO BRACKET
