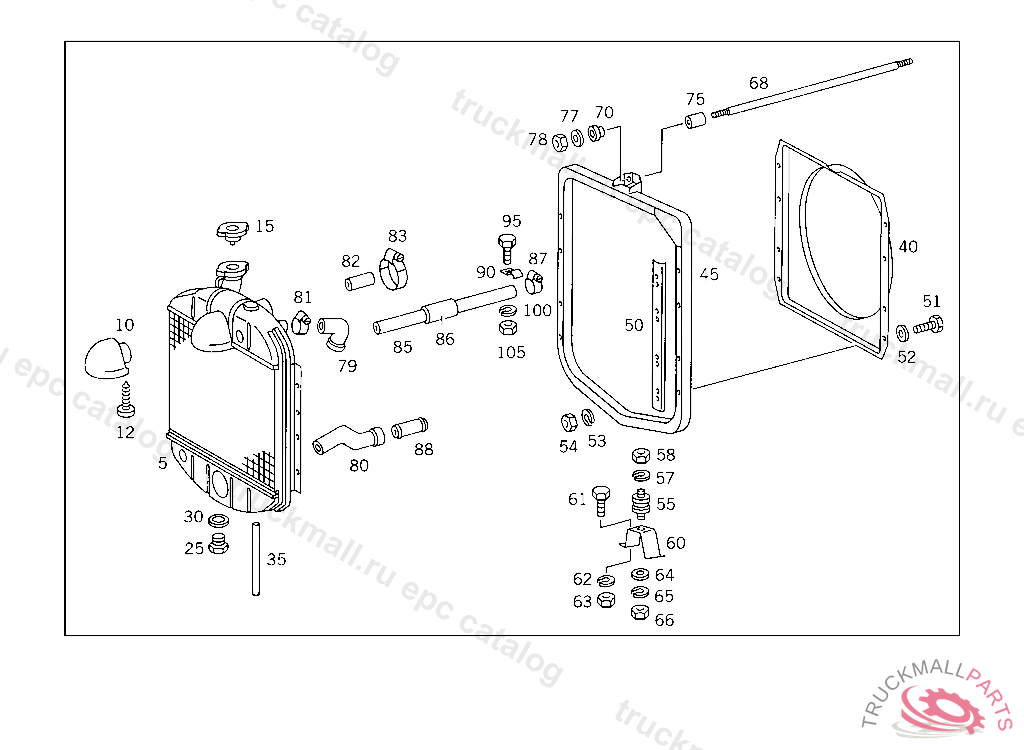

Поз.
Артикул
Описание
5
RADIATOR
5
RADIATOR
5
RADIATOR
10
PIPE ELBOW
12
SHEET METAL SCREW SHIFT LEVER BEARING TO CAB FLOOR
15
RADIATOR FILLER CAP. RADIATOR CAP
15
RADIATOR CAP
25
SCREW PLUG
30
SEAL RING
35
HOSE
40
FAN SHROUD
45
SUPPORT
50
COVER PLATE RETURN, FROM HOSE CONNECTION I TO HOSE CONNECTION II
51
SCREW COMPRESSED AIR ELBOW
52
WASHER , Replaced By: N000125008443
53
LOCK WASHER
54
NUT LEVER TO SHIFTING SHAFT
55
RUBBER MOUNTING TRANSMISSION TO INTERMEDIATE RING
57
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
58
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
60
CLAMP. ANGLE
61
SCREW OIL TANK TO BRACKET
62
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
63
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
64
WASHER , Replaced By: N000125010532
65
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
66
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
68
RADIATOR STRUT , Replaced By: A3455007345
68
RADIATOR STRUT , UP TO CAB 1500000
70
RUBBER RING SHOCK ABSORBER MOUNTING
75
SPACER TUBE RADIATOR STRUT TO SUPPORT AND TO CAB
77
WASHER RADIATOR STRUT TO SUPPORT AND TO CAB
78
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
79
HOSE FROM THERMOSTAT TO RADIATOR
80
HOSE FROM RADIATOR TO WATER PUMP
81
LOOM TIE
81
CLAMP
81
CLAMP , Replaced By: N000000000671
82
HOSE , Replaced By: N900271015037
82
HOSE FROM UPPER LINE TO HEATING SHUT-OFF COCK 15X24X380, ORDER BY THE METER
83
CLAMP
83
CLAMP HOSE TO FITTING AND TO OIL TANK
83
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
83
LOOM TIE
85
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
86
HOSE
87
CLAMP
87
LOOM TIE
87
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
87
CLAMP HOSE TO FITTING AND TO OIL TANK
90
CLAMP , Replaced By: A1109950401
95
SCREW FUEL LINE TO BRACKET
100
LOCK WASHER CLAMP TO BRACKET
105
NUT , Replaced By: N304032006004
999
HOSE HEATING WATER CONNECTION 24 X 33 MM
999
LOOM TIE , Replaced By: N916017016000
999
HOSE , Replaced By: A3415017282
999
HOSE FROM RADIATOR TO WATER PUMP
999
HOSE , Replaced By: N900271015037
999
RUBBER MOUNTING , Replaced By: A3605040012
999
SUPPORT , 032-041 UP TO CHASSIS 248005, 132-141 UP TO CHASSIS 249671
999
FAN SHROUD , EXCEPT FOR MODEL 033 UP TO CHASSIS 020757 USED WITH OM 312 OR OM 321 ENGINE,ON SPECIAL REQUEST ON TROPICAL VEHICLES HAVING OM 352 ENGINE,CONTINUED,SEE FOOTNOTE 026
999
LOOM TIE , Replaced By: H990009970290
999
RADIATOR , Replaced By: A3415010001
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
SPRING ,4 263013
