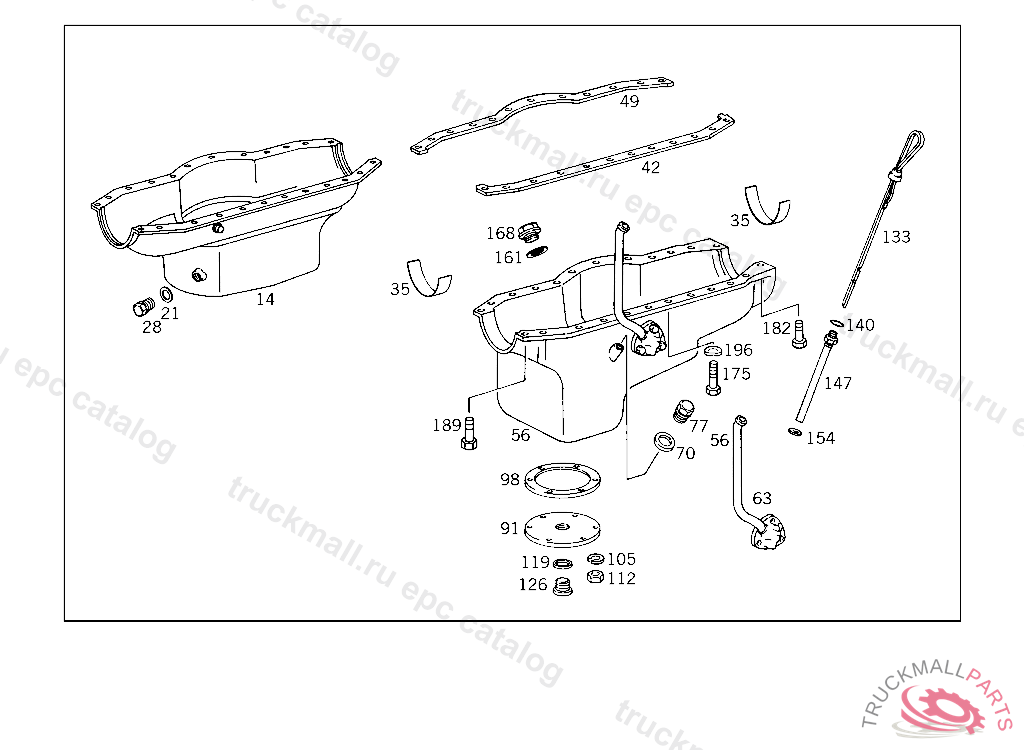

Поз.
Артикул
Описание
14
OIL PAN
21
SEAL RING OIL DRAIN
28
SCREW PLUG OIL DRAIN
28
SCREW PLUGTO 314 010 28 13
35
GASKET
35
GASKET , Replaced By: A3140142322
42
GASKET , Replaced By: A3520142922
42
GASKET OIL PAN TO CYLINDER CRANKCASE
49
GASKET OIL PAN TO CYLINDER CRANKCASE
49
GASKET , Replaced By: A3520143022
56
OIL PAN
63
FLANGE
70
SEALING RING. SEAL RING DELIVERY LINE TO PUMP
77
SCREW PLUG
91
COVER
98
GASKET COVER TO OIL PAN
105
LOCK WASHER
112
NUT LEVER TO SHIFTING SHAFT
119
SEAL RING PREHEATER TO OIL PAN
126
SCREW PLUG
126
SCREW PLUG
133
OIL DIPSTICK
133
OIL DIPSTICK
133
OIL DIPSTICK
140
SEAL RING
147
GUIDE TUBE OIL DIPSTICK
147
GUIDE TUBE OIL DIPSTICK
154
SEALING RING. SEAL RING DELIVERY LINE TO PUMP
161
SEAL RING SWITCH TO CASE COVER
168
SCREW PLUG SHIFTING SHAFT DETENT
168
SCREW PLUG , Replaced By: A4429970030
175
SCREW
182
SCREW
189
SCREW OIL PAN TO CYLINDER CRANKCASE
196
SPRING WASHER LICENSE PLATE TO BRACKET
999
SCREW
999
SCREW TRAILER CONTROL VALVE TO BRACKET,4 940459
999
OIL PAN
999
GUIDE TUBE
999
OIL DIPSTICK , Replaced By: A3520100074
999
GUIDE TUBE , Replaced By: A3520184216
999
EXPANSION PLUG OIL DIPSTICK BORE
