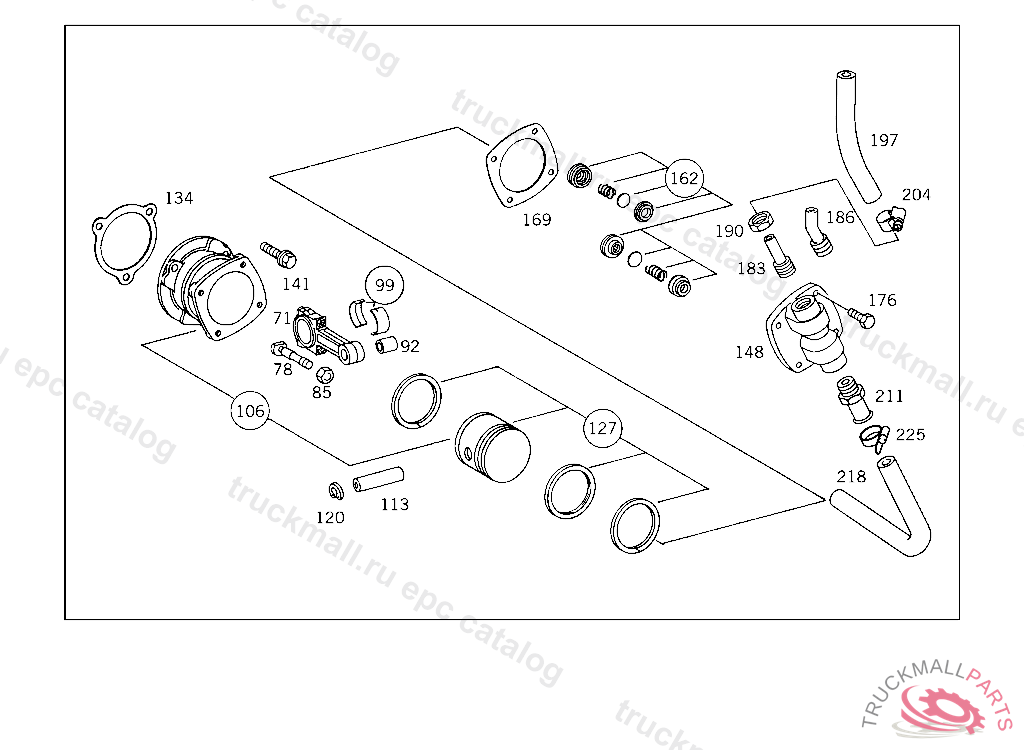

Поз.
Артикул
Описание
71
CONNECTING ROD LIFTING PIN WIDTH,28 MM,LENGTH,92 MM, UP TO ENGINE 283201 YEAR OF MANUFACTURE 1978
71
CONNECTING ROD
78
SCREW CONNECTING ROD COVER TO CONNECTING ROD, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
85
NUT
92
BUSHING ,082679
92
BUSHING ,082678
99
BEARING SHELL STANDARD SIZE I 31.90 MM
99
BEARING SHELL CONNECTING ROD BEARING SHELLS,32.00 MM STANDARD SIZE,082679
99
BEARING SHELL PARTS KIT,REPAIR SIZE I 31.75 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
99
BEARING SHELL REPAIR SIZE III 31.25 MM
99
BEARING SHELL CONNECTING ROD BEARING SHELLS,31.90 MM STANDARD SIZE I,082679
99
BEARING SHELL PARTS KIT,REPAIR SIZE II 31.50 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
99
BEARING SHELL REPAIR SIZE I 31.75 MM
99
BEARING SHELL REPAIR SIZE II 31.50 MM
99
BEARING SHELL STANDARD,082678
99
BEARING SHELL PARTS KIT,REPAIR SIZE III 31.25 MM, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
106
CYLINDER LINER WITH PISTON 77.0 MM, NOT USED
106
CYLINDER LINER WITH PISTON
113
PISTON PIN
120
LOCK RING
127
REPAIR KIT (PARTS KIT) 77.00 MM, 343 UP TO ENGINE 128148, 344 UP TO ENGINE 729030
127
PISTON RING STANDARD 77.000 MM, TO 344 130 14 17
127
PISTON RING , Replaced By: A3401310011
134
GASKET , Replaced By: A3211310080
134
GASKET , Replaced By: A3211310180
134
GASKET AS REQUIRED 0.30 MM,085523
134
GASKET AS REQUIRED 0.50 MM,085523
141
SCREW , Replaced By: N910105008005
148
CYLINDER HEAD
148
CYLINDER HEAD
162
REPAIR KIT CYLINDER HEAD
169
GASKET CYLINDER HEAD
169
GASKET CYLINDER HEAD
169
GASKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 082678, Replaced By: A3521310480
176
SCREW LINES TO BRACKET
183
INTAKE PIPE FROM AIR COMPRESSOR TO CYLINDER HEAD COVER
186
INTAKE PIPE
190
NUT INTERMEDIATE SPEED STOP
197
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
204
LOOM TIE HOSE TO HEATING PIPE
211
CONNECTOR AT ENGINE,591819
218
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
225
LOOM TIE HOSE TO HEATING PIPE
999
SEAL RING , Replaced By: A0149976148
999
SEAL RING , Replaced By: A0019972645
999
SEAL RINGTO 388 476 71 69
999
DRIVE GEAR
999
CAP TO CRANIKCASE
999
REPAIR KIT , Replaced By: A3521312533
999
REPAIR KIT , Replaced By: A3521312633
