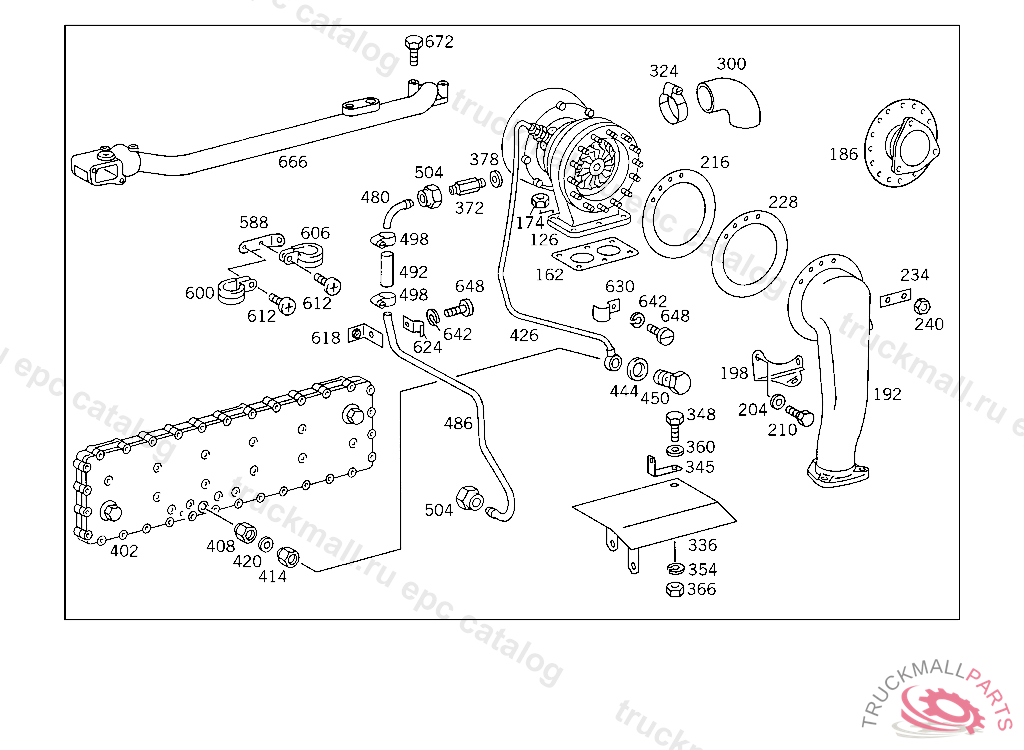

Поз.
Артикул
Описание
126
TURBOCHARGER
162
GASKET
174
NUT CONNECTING PIPE TO EXHAUST MANIFOLD
174
NUT CONNECTING PIPE TO EXHAUST MANIFOLD
186
FLANGE EXHAUST
192
ELBOW EXHAUST
198
BRACKET
204
WASHER CONSOLE TO REAR CROSS MEMBER,5 751724
210
SCREW CONSOLE TO CAB M 10X60
216
GASKET
216
GASKET
228
REINFORCEMENT RING
234
LOCK
240
NUT CONNECTING PIPE TO EXHAUST MANIFOLD
240
NUT CONNECTING PIPE TO EXHAUST MANIFOLD
300
HOSE TURBINE/CYLINDER-HEAD-COVER CONNECTION
300
HOSE
324
LOOM TIE HOSE TO FILLER NECK
324
CLAMP HOSE FASTENING 50-70X13 MM
324
CLAMP , Replaced By: N000000000672
336
SCREENING PLATE EXHAUST MANIFOLD
345
BRACKET
348
SCREW 3/2-WAY VALVE TO BRACKET
354
LOCK WASHER PLUG SOCKET
360
WASHER FUSE TO FUSE BOX
366
NUT TACHOGRAPH TO BRACKET
372
FITTING OIL RETURN LINE TO EXHAUST GAS TURBOCHARGER
378
SEAL RING SWITCH TO CASE COVER
402
OIL COOLER , FOR THE NEW PART NO.,SEE STANDARD VERSION
402
OIL COOLER , FOR THE NEW PART NO.,SEE STANDARD VERSION
408
SCREW PLUG (REDUCTION FITTING),OIL DELIVERY LINE CONNECTION M 22X1.5, M 14X15
408
INTERMEDIATE PIECE EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
414
SEAL RING INJECTION PUMP
420
FITTING
426
OIL LINE ON DELIVERY SIDE
444
SEAL RING RELAY VALVE,CONNECTION: "41"
450
HOLLOW SCREW
480
OIL LINE RETURN
486
OIL LINE RETURN
492
HOSE
498
LOOM TIE. CLAMP HOSE TO HEATING PIPE
498
CLAMP HOSE TO OIL TANK AND TO SUCTION LINE
504
UNION NUT OIL LINE TO RADIATOR,5 106401
588
BRACKET OIL RETURN LINE
600
CLAMP SENSOR CABLE TO FRONT AXLE
606
CLAMP LINE MOUNTING
612
SCREW CABLE TO FUSE BOX M 6X12
618
BRACKET OIL-DELIVERY/OIL-RETURN LINES
624
CLAMP FLEXIBLE SHAFT
630
CLAMP WIRE CABLE TO CAB, FOR USE WITH SHORT VERSION OF MERCEDES-BENZ CAB
642
LOCK WASHER PLUG SOCKET
648
SCREW COMPRESSED AIR LINE BELOW BATTERY BRACKET
666
LINE UPPER COOLING WATER LINE TO CYLINDER HEAD
672
SCREW CLUTCH TO FLYWHEEL,760271
672
SCREW PROPELLER SHAFT TO COUPLING FLANGE
999
PISTON RING , Replaced By: A3660371619
999
PISTON RING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 016839, Replaced By: A3660371719
999
REPAIR KIT TURBOCHARGER,MAKE KKK TO 352 096 57 99
999
REPAIR KIT , Replaced By: A0000900080
999
REPAIR KIT TURBOCHARGER MOVING PARTS,MAKE KKK TO 352 096 57 99
999
CLAMP , Replaced By: N916016006201
999
CLAMP , Replaced By: N916016015202
999
LOOM TIE , Replaced By: N916017050000
999
LOOM TIE , Replaced By: N916017025000
999
PISTON RING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 016839, Replaced By: A3660371819
999
PISTON RING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 016839, Replaced By: A3660371919
999
NUT
999
NUT
999
PISTON RING STANDARD SIZES I AND II NO.1, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
PISTON RING REPAIR SIZE I NO.1, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
PISTON RING REPAIR SIZE II NO.1, NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
999
FITTING SENDER UNIT,A 069205
999
SCREW PLUG , Replaced By: N000908016000
999
PISTON , FIVE-RING PISTON, Replaced By: A3520305719
999
PISTON , FIVE-RING PISTON, Replaced By: A3520305819
999
PISTON , FIVE-RING PISTON, Replaced By: A3520305919
999
PISTON , FIVE-RING PISTON, Replaced By: A3520306019
999
PISTON REPAIR SIZE III 98.50 MM
999
WASHER
999
CYLINDER HEAD GASKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 792376, Replaced By: A3520161520
999
PISTON RING , THREE-RING PISTON EXHAUST STOCK OF OLD PARTS UP TO ENGINE 760049729031, Replaced By: A3440301524
999
CRANKSHAFT , Replaced By: A3440306701
999
PISTON RING , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 143294, Replaced By: A3440301624
999
CRANKSHAFT , Replaced By: A3440301802
999
CRANKSHAFT , Replaced By: A3440301902
999
CRANKSHAFT , Replaced By: A3440302002
999
PISTON RING PARTS KIT,REPAIR SIZE II, THREE-RING PISTON729031 EXHAUST STOCK OF OLD PARTS UP TO ENGINE 760049
999
PISTON RING PARTS KIT,STANDARD SIZES I AND II 97.100 MM
999
PISTON RING PARTS KIT,REPAIR SIZE I 97.500 MM
999
PISTON REPAIR SIZE II 98.000 MM,"METAL LEVE", THREE-RING PISTON729031
999
CRANKSHAFT PARTS KIT,STANDARD
999
CRANKSHAFT , Replaced By: A3440300114
999
CRANKSHAFT , Replaced By: A3440300314
999
CRANKSHAFT , Replaced By: A3440300414
999
CRANKSHAFT , Replaced By: A3440300514
999
SCREENING PLATE , Replaced By: A3440907534
999
TURBOCHARGER , Replaced By: A3520964799
999
GASKET , NOT USED
999
TURBOCHARGER , Replaced By: A3520964699
999
OIL LINE , Replaced By: A3441807222
999
OIL LINE , Replaced By: A3441807420
999
BRACKET OIL RETURN LINE
999
REPAIR KIT STANDARD SIZES I AND II 97.075 MM,97.125 MM, FIVE-RING PISTON729030
999
REPAIR KIT REPAIR SIZE I 97.500 MM, FIVE-RING PISTON
999
REPAIR KIT REPAIR SIZE II 98.000 MM, FIVE-RING PISTON
999
NUT , Replaced By: N999901010000
999
CLAMP , Replaced By: A0019972590
999
FLANGE , Replaced By: A3440107276
999
CYLINDER LINER , Replaced By: A3620110310
999
CYLINDER HEAD GASKET
999
PISTON RING , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 016839, Replaced By: A3520300424
999
PISTON , Replaced By: A3520308419
999
PISTON , Replaced By: A3520308819
999
PISTON , Replaced By: A3520308919
999
PISTON , Replaced By: A3520309019
999
PISTON , Replaced By: A3520308519
999
PISTON , Replaced By: A3520308619
999
PISTON , Replaced By: A3520308719
999
VALVE TAPPET REPAIR SIZE I 28.18 MM-28.19 MM
999
VALVE TAPPET REPAIR SIZE II 28.48 MM-28.49 MM
999
VALVE TAPPET REPAIR SIZE III 28.73 MM - 28.74 MM
999
TURBOCHARGER , Replaced By: A3520962599
999
TURBOCHARGER , Replaced By: A3440967399
999
TURBOCHARGER , Replaced By: A3520964499
999
GASKET , Replaced By: A3520980980
999
ELBOW , Replaced By: A3520987015, +001N000961010002, +001N007603010110
999
ELBOW , Replaced By: A3520986915, +001N007603012106, +001N007604012102
999
OIL LINE , Replaced By: A3441807320
999
OIL LINE , Replaced By: A3441807220
999
PISTON RINGNO.1
999
PISTON RING , Replaced By: A3660372919
999
SCREW PLUG
999
LOOM TIE , Replaced By: A3449978490
999
LOOM TIE , Replaced By: A3449978690
999
NUT , Replaced By: A3449900851
999
WASHER PLUG SOCKET TO BRACKET
999
SCREW COVER TO HOUSING M8X45
999
SCREW CLAMP TO BRACKET
999
NUT , Replaced By: N304032006004
999
SEAL RING PREHEATER TO OIL PAN
999
LOCK WASHER RESISTOR
