Поз.
Артикул
Описание
3

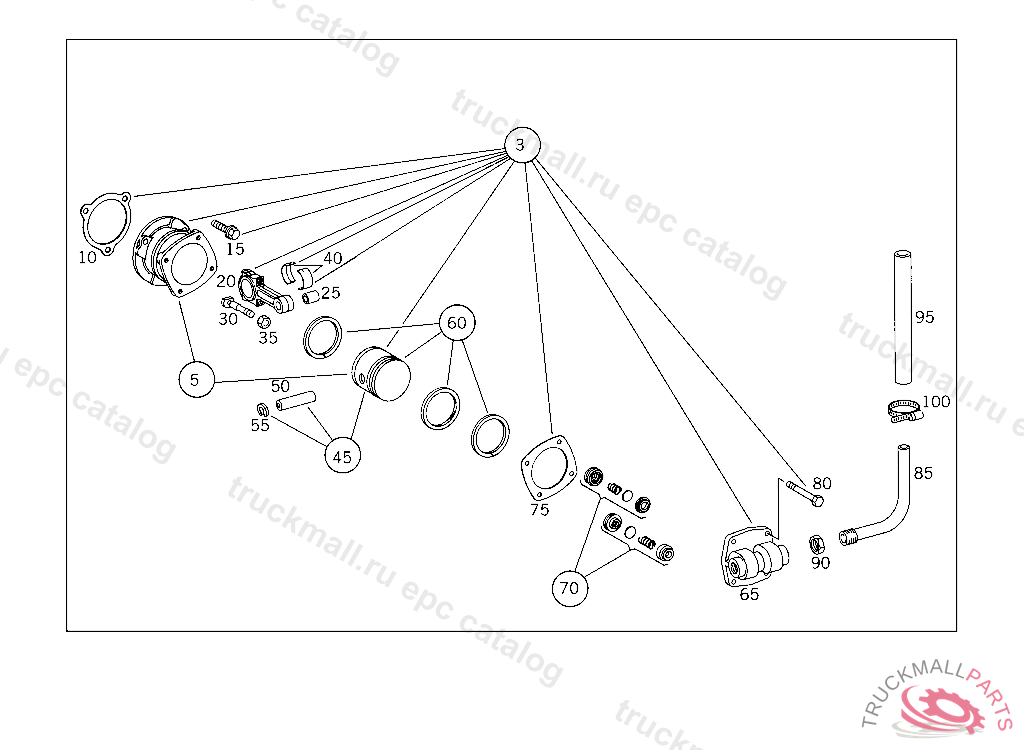

COMPRESSOR ASSEMBLY KIT
5
CYLINDER LINER WITH PISTON
5
CYLINDER LINER , Replaced By: A3401300008
10
GASKET , Replaced By: A3211310080
10
GASKET , Replaced By: A3211310180
10
GASKET AS REQUIRED 0.30 MM,085523
10
GASKET AS REQUIRED 0.50 MM,085523
15
SCREW , Replaced By: N910105008005
20
CONNECTING ROD
25
BUSHING ,082678
30
SCREW CONNECTING ROD COVER TO CONNECTING ROD, UP TO ENGINE 238225 YEAR OF MANUFACTURE 1992
35
NUT
40
BEARING SHELL STANDARD,082678
40
BEARING SHELL REPAIR SIZE III 31.25 MM
40
BEARING SHELL REPAIR SIZE II 31.50 MM
40
BEARING SHELL REPAIR SIZE I 31.75 MM
40
BEARING SHELL STANDARD SIZE I 31.90 MM
40
REPAIR KIT , Replaced By: A3525860213
40
REPAIR KIT , Replaced By: A3521312033
45
PISTON , 343 UP TO ENGINE 128148, 344 UP TO ENGINE 729030
50
PISTON PIN
55
LOCK RING
60
PISTON RING , Replaced By: A3401310011
60
PISTON RING STANDARD 77.000 MM, TO 344 130 14 17
65
CYLINDER HEAD
70
REPAIR KIT CYLINDER HEAD
75
GASKET , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 082678, Replaced By: A3521310480
75
GASKET CYLINDER HEAD
75
GASKET CYLINDER HEAD
80
SCREW LINES TO BRACKET
85
INTAKE PIPE FROM AIR COMPRESSOR TO CYLINDER HEAD COVER
90
NUT INTERMEDIATE SPEED STOP
95
HOSE FROM HEAT EXCHANGER TO WATER PUMP,073289
95
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
100
LOOM TIE HOSE TO HEATING PIPE
999
CONNECTING ROD , Replaced By: A3211300716
999
REPAIR KIT , Replaced By: A3525860313
999
REPAIR KIT , Replaced By: A3525860413
999
REPAIR KIT , Replaced By: A3525860513
999
REPAIR KIT , Replaced By: A3525860613
999
NUT , Replaced By: N080705022002
999
CYLINDER LINER , Replaced By: A3401300008
999
CYLINDER LINER STANDARD SIZE I 77.075 MM
999
CYLINDER LINER STANDARD SIZE II 71.125 MM
999
REPAIR KIT STANDARD SIZES I AND II, 343 UP TO ENGINE 128148, 344 UP TO ENGINE 729030
999
PISTON , 343 UP TO ENGINE 128148, 344 UP TO ENGINE 729030
999
PISTON , 343 UP TO ENGINE 128148, 344 UP TO ENGINE 729030
999
PISTON , 343 UP TO ENGINE 128148, 344 UP TO ENGINE 729030
999
PISTON , 343 UP TO ENGINE 128148, 344 UP TO ENGINE 729030
999
PISTON SEE FIG. NO.: 14
999
REPAIR KIT , Replaced By: A3521312133
999
REPAIR KIT , Replaced By: A3521312233
999
REPAIR KIT , Replaced By: A3521312333
999
REPAIR KIT , Replaced By: A3521312433
999
SCREW WATER PUMP COVER TO WATER PUMP HOUSING M 8X28
