Поз.
Артикул
Описание

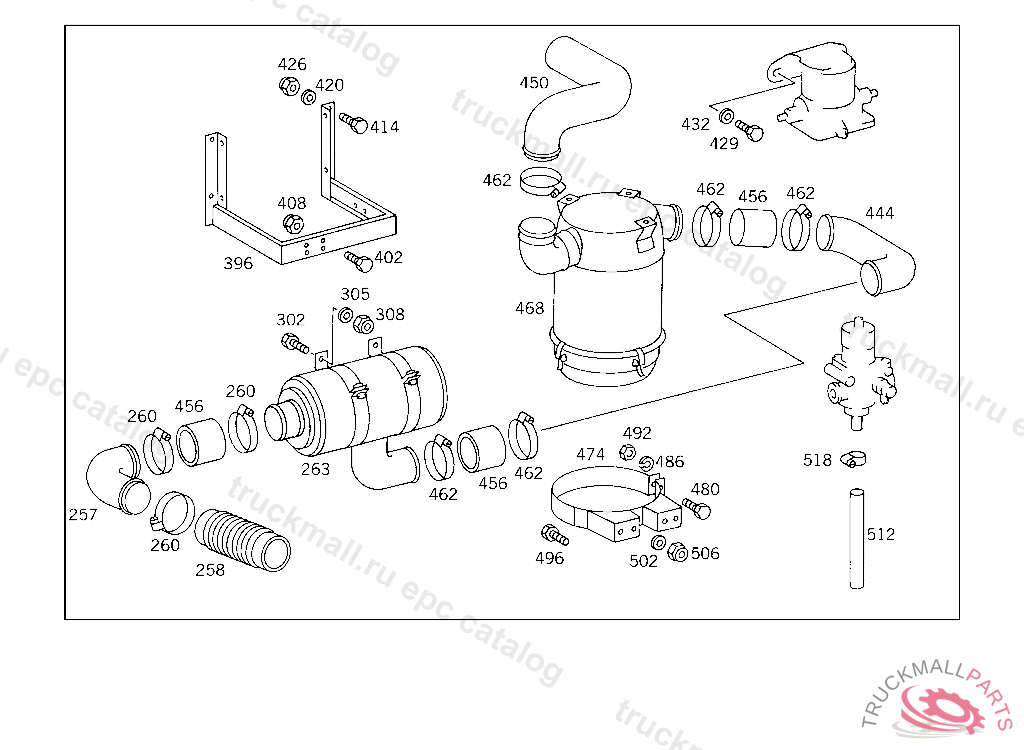

257
AIR INTAKE PIPE
258
HOSE
258
HOSE FROM PICO AIR CLEANER TO INTAKE MANIFOLD AT ENGINE
260
CLAMP. LOOM TIE90-110
260
CLAMP
263
AIR CLEANER
302
SCREW BRACKET TO SIDE MEMBER
305
WASHER GROUND CABLE
308
NUT BRACKET TO SIDE MEMBER,XB209706
396
SUPPORT AIR INTAKE CASE
402
SCREW BRACKET TO SIDE MEMBER
408
NUT BRACKET TO SIDE MEMBER,XB209706
414
SCREW BATTERY POS. CABLE TO BRACKET,PB004444
420
WASHER , Replaced By: N009021006208
426
NUT PUMP TO BRACKET
429
SCREW PLUG SOCKET TO FRAME
432
LOCK WASHER RAIL TO BATTERY SUPPORT
444
AIR INTAKE PIPE FROM OIL BATH AIR CLEANER TO PICO AIR CLEANER
450
AIR INTAKE PIPE FROM OIL BATH AIR CLEANER TO INTAKE SCOOP
456
HOSE
462
CLAMP100-120
462
CLAMP
468
AIR CLEANER OIL BATH
474
STRAP OIL BATH AIR CLEANER
480
SCREW LINES TO BRACKET
486
LOCK WASHER RAIL TO BATTERY SUPPORT
492
NUT , Replaced By: N304032008006
496
SCREW , Replaced By: N304017010040
496
SCREW BRACKET TO SIDE MEMBER
502
WASHER GROUND CABLE
506
NUT BRACKET TO SIDE MEMBER,XB209706
512
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
518
LOOM TIE HOSE TO HEATING PIPE
999
SWITCH
999
HOSE
999
COOLING WATER PIPE FROM BUBBLE SEPARATOR TO WATER PUMP
999
BRACKET , Replaced By: A3464296040
999
BRACKET FUEL LINE
999
BRACKET ,604174
999
BRACKET AIR INTAKE CASE,483437
999
BRACKET
999
BRACKET AIR CLEANER,604174
999
PIPE ELBOW , 401,402,403,406,407,408,420,424 FROM CHASSIS 12245602 INAPPLICABLE TO SUPERCHARGING SYSTEM
999
BRACKET MOUNTING USED FOR COMPRESSED AIR LINES
999
BRACKET BATTERY CABLE
999
AIR CLEANER"MANN DO BRASIL", 030-041 FROM IDENT NO.: 679208
999
AIR CLEANER , Replaced By: A3450947802
999
AIR CLEANER , MANN DO BRASIL, Replaced By: A3450947902
999
HOSE FROM AIR CLEANER TO REAR EXHAUST PIPE T-FITTING
999
FILTER ELEMENT , Replaced By: A3440947104
999
AIR CLEANER , Replaced By: A3450948002
999
HOSE
999
LOOM TIE. CLAMP
999
CLAMP MAIN CABLE HARNESS TO FIRE WALL
999
AIR INTAKE PIPE
999
PIPE ELBOW , INAPPLICABLE TO SUPERCHARGING SYSTEM, Replaced By: A3445288708, +001A3529971382, +002A3449979890
999
AIR INTAKE PIPE
999
AIR CLEANER , 032,033,040,041,132,133,140,141 FROM CAB 1500001 INAPPLICABLE TO SUPERCHARGING SYSTEM 030-041 UP TO IDENT NO.: 679207
999
NUTTO 344 094 70 02
999
AIR CLEANERMANN
999
AIR CLEANER , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 632989, Replaced By: A3080947402
999
LOOM TIE , Replaced By: N916018090000
999
LOOM TIE , Replaced By: A0009979990
999
RUBBER BUFFER EXHAUST MUFFLER
999
HOSE
999
HOSE AIR CLEANER, 352.00/1,353,358 FROM CHASSIS 676465-4 153178 ALSO INSTALLED ON 500001-515186,TYP 360 FROM CHASSIS 676465-4 153178
999
INTAKE PIPE
