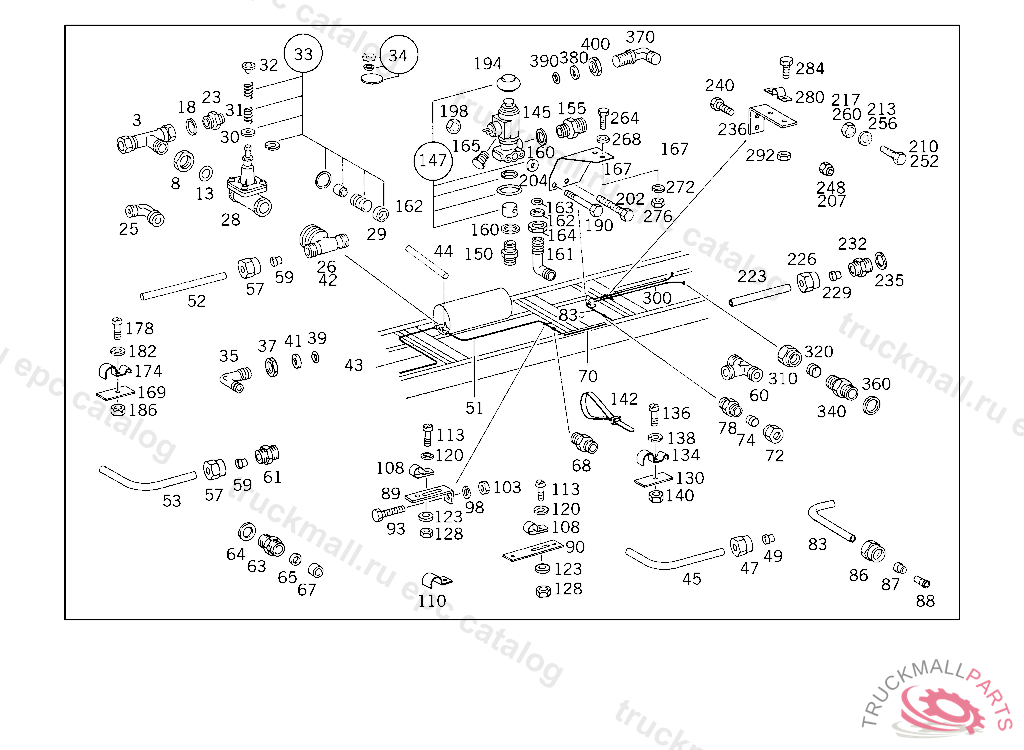

Поз.
Артикул
Описание
3
T-FITTING , Replaced By: N074317000100
3
T-FITTING , Replaced By: N074317000100
3
FITTING PRESSURE REGULATOR,CONNECTION "2.1",4 967998
3
FITTING PRESSURE REGULATOR,CONNECTION "2.1",4 967998
8
NUT CHECK VALVE TO AIR RESERVOIR
13
O-RING CHECK VALVE TO AIR RESERVOIR
18
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
18
THRUST RING CHECK VALVE TO AIR RESERVOIR
23
FITTING
25
ELBOW FITTING AT OVERFLOW VALVE
25
ELBOW FITTING AT OVERFLOW VALVE
26
T-FITTING AT DISTRIBUTOR,4 481288
28
VALVE , Replaced By: A0014295244
28
VALVE
29
VALVE SEAT RINGWABCO,5 433388
30
DIAPHRAGMTO 000 429 63 44
30
DIAPHRAGMTO 344 429 73 44
31
SPRINGTO 000 429 63 44,000 429 59 44
32
SPRING RETAINERTO 000 429 63 44,000 429 59 44
33
REPAIR KIT OVERFLOW VALVE TO 003 429 09 44,WABCO
33
REPAIR KITTO 000 429 63 44,000 429 59 44
34
REPAIR KITTO 003 429 02 44
35
ELBOW FITTING AT OVERFLOW VALVE
35
ELBOW FITTING AT OVERFLOW VALVE
35
ELBOW FITTING AT OVERFLOW VALVE
35
ELBOW FITTING AT OVERFLOW VALVE
37
NUT CHECK VALVE TO AIR RESERVOIR
37
NUT CHECK VALVE TO AIR RESERVOIR
39
O-RING CHECK VALVE TO AIR RESERVOIR
39
O-RING CHECK VALVE TO AIR RESERVOIR
41
THRUST RING CHECK VALVE TO AIR RESERVOIR
41
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
43
LINE FROM AIR RESERVOIR TO BRAKE BOOSTER
44
LINE FROM AIR RESERVOIR TO OVERFLOW VALVE
45
LINE FROM OVERFLOW VALVE TO THREE-WAY VALVE
47
UNION NUT
49
GLAND , Replaced By: A0019901667
51
LINE FROM OVERFLOW VALVE TO FITTING
52
LINE FROM OVERFLOW VALVE TO FITTING
53
LINE FROM AIR RESERVOIR TO DOUBLE FITTING
53
LINE FROM AIR RESERVOIR TO DOUBLE FITTING 6X0.7 MM
57
UNION NUT
59
GLAND , Replaced By: A0019901667
60
FITTING
60
T-FITTING CONTROL UNLOCKING MECHANISM HIGHPRESSURE HOSE TO OIL DELIVERY LINE, 415 5 014669 416 5 000516 417 4 9720245 144227, Replaced By: N000000006204
61
CONNECTION FITTING , Replaced By: A0039979172
63
FITTING AIR RESERVOIR,CONNECTION: "2"
63
FITTING AIR RESERVOIR,CONNECTION: "13"
64
SEAL RING LINE CONNECTION
65
SEAL RING , Replaced By: N007603012121
67
THRUST RING AT OVERFLOW VALVE
68
CONNECTION FITTING , Replaced By: A0039979172
70
LINE FROM DOUBLE FITTING I TO DOUBLE FITTING II
72
UNION NUT
74
GLAND , Replaced By: A0019901667
78
CONNECTION FITTING , Replaced By: A0039979172
83
LINE FROM DOUBLE FITTING TO THREE-WAY VALVE
83
LINE FROM DOUBLE FITTING TO THREE-WAY VALVE
86
UNION NUT
87
GLAND , Replaced By: A0019901667
88
BUSHING , Replaced By: N915062004000
88
SLEEVE LEAK LINE
89
BRACKET , Replaced By: A3184280240
89
BRACKET , Replaced By: A3184280240
90
BRACKET
93
SCREW BRACKET TO INTAKE MANIFOLD
98
LOCK WASHER RAIL TO BATTERY SUPPORT
103
NUT LEVER TO SHIFTING SHAFT
108
CLAMP LINE MOUNTING
108
CLAMP , Replaced By: N916016008200
108
CLAMP ,K 147121, Replaced By: N000000000319
108
CLAMP , Replaced By: A3604300143
110
CLAMP , Replaced By: A3129952420
110
CLAMP , Replaced By: A1109950401
113
SCREW CABLE TO ALTERNATOR
120
LOCK WASHER EXTENSIBLE BRAKE VALVE TO CAB
123
WASHER PLUG SOCKET TO BRACKET
128
NUT
130
CLAMPING PIECE LINE MOUNTING
134
CLAMP COMPRESSED AIR LINE MOUNTING
136
SCREW CONTROL UNIT
138
LOCK WASHER PLUG SOCKET
140
NUT TACHOGRAPH TO BRACKET
142
LOOM TIE ELECTRIC CABLE MOUNTING
142
LOOM TIE , Replaced By: A3459977390
145
VALVE , Replaced By: A0039971736
145
VALVE , Replaced By: A0029975836
145
VALVE , Replaced By: A0029975836
147
REPAIR KIT , Replaced By: A0024302260
150
CONNECTOR SOLENOID VALVE,CONNECTION: "2" TOA388 997 81 36 / 88 36
155
FITTING LINE CONNECTION, Replaced By: N000000006446
155
SCREW-IN FITTING LINE CONNECTION
160
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
161
ELBOW FITTING AT CYLINDER
161
ELBOW FITTING AT CYLINDER
162
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
162
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
162
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
163
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
163
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
164
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
164
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
165
SCREW PLUGROCKINGER TYP 59 G140,59 G150, Replaced By: N007604012105
167
BRACKET VALVE
167
BRACKET THREE-WAY VALVE
190
SCREW REAR AXLE REGULATING SOLENOID VALVE M 8X95
190
SCREW BRACKET TO EXHAUST PIPE,5 528482
198
NUT
202
SCREW PLUG SOCKET TO FRAME
202
SCREW LINES TO BRACKET
204
WASHER TRAILER PLUG SOCKET TO BRACKET
207
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
210
SCREW 3/2-WAY VALVE TO BRACKET M8X55
213
WASHER TRAILER PLUG SOCKET TO BRACKET
223
HOSE FROM THREE-WAY VALVE TO COMPRESSED AIR CYLINDER
223
HOSE
226
UNION NUT LINE CONNECTION
229
GLAND LINE CONNECTION
232
SCREW-IN FITTING LINE CONNECTION
232
FITTING LINE CONNECTION, Replaced By: N000000006446
235
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
236
BRACKET LINE MOUNTING
240
SCREW PLUG SOCKET TO FRAME
248
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
248
NUT BRACKET TO CROSS MEMBER
252
SCREW 3/2-WAY VALVE TO BRACKET M8X55
256
WASHER TRAILER PLUG SOCKET TO BRACKET
260
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
280
CLAMP LINE MOUNTING
284
SCREW , Replaced By: N304017006018
284
SCREW CLAMP TO BRACKET
292
NUT
300
HOSE FROM THREE-WAY VALVE TO COMPRESSED AIR CYLINDER
300
HOSE FROM THREE-WAY VALVE TO COMPRESSED AIR CYLINDER
310
UNION NUT LINE CONNECTION
320
GLAND LINE CONNECTION
340
FITTING LINE CONNECTION, Replaced By: N000000006446
340
SCREW-IN FITTING LINE CONNECTION
360
SEAL RING PRESSURE CONNECTION TO AIR COMPRESSOR
370
ELBOW FITTING AT BRAKE VALVE
380
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
380
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
390
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
400
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
999
LINE , Replaced By: A3453507480
999
CONNECTOR , Replaced By: A3454298136
999
CAP TO PLUG THE FREE BORES USED FOR SWITCHES IN INSTRUMENT PANEL,071184
999
ELECTRIC CABLE FROM PLUG CONNECTION TO REAR AXLE SWITCH, 655198
999
REPAIR KIT , Replaced By: A0005865842
999
TELL-TALE LAMP LESS LENS
999
HOSE FROM DOUBLE FITTING TO THREE-WAY VALVE
999
PROTECTIVE PLATE
999
PLUG TO PLUG THE FREE HOLES IN INSTRUMENT PANEL, 344.030-033,036-038.040,041,058 FROM CHASSIS 652015
999
EXPANSION PLUG
999
PLUG TELL-TALE LAMP
999
SWITCH , Replaced By: A3445457111
999
TELL-TALE LAMP , Replaced By: A0005451630, +001A0005452319
999
ELBOW FITTING ANTI-FREEZE DEVICE,CONNECTION: "10", BUTT CONNECTION
999
BUTTON , Replaced By: A0005451837
999
BUTTON SWITCH,928519
999
NUT , NOT USED
999
LAMP SOCKET ,642394
999
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
