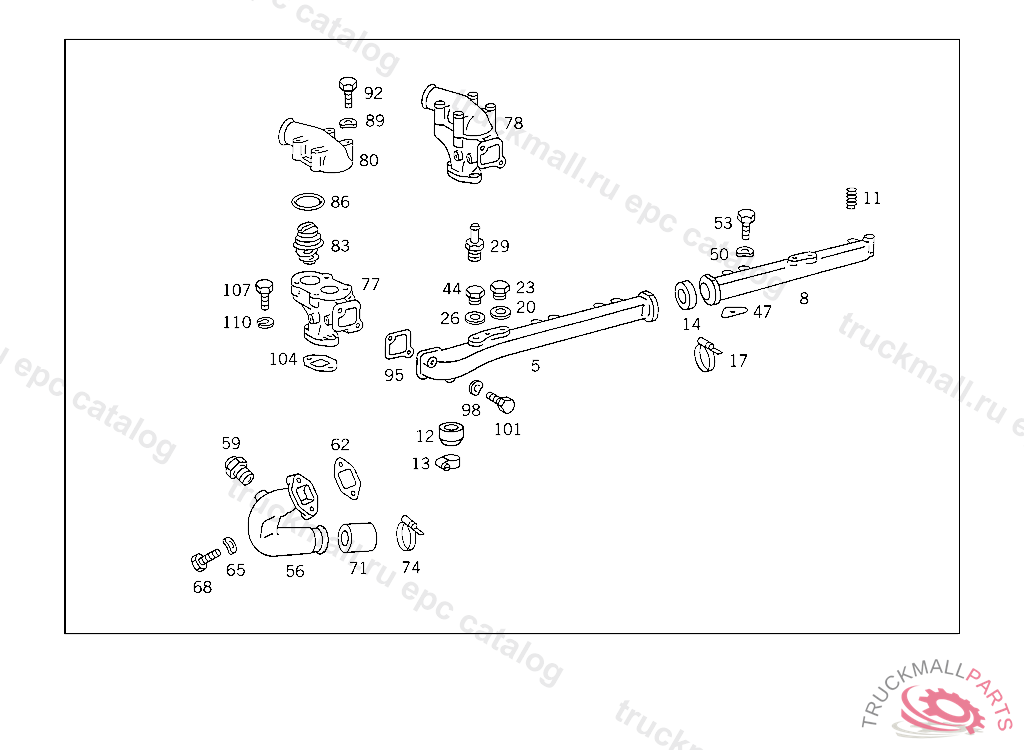

Поз.
Артикул
Описание
5
LINE FRONT, UP TO ENGINE 070121
5
LINE
8
LINE REAR COOLING WATER LINE
11
THREADED INSERT , Replaced By: A0009974115
11
THREADED INSERT , Replaced By: A6559970015
12
LOCKING CAP COOLING WATER LINE
13
LOOM TIE HOSE TO FILLER NECK
14
SEAL RING
17
CLAMP HOSE FASTENING 50-70X13 MM
17
CLAMP , Replaced By: N000000000672
20
SEAL RING
23
SCREW PLUG
26
SEAL RING ON OIL PUMP HOUSING
29
CONNECTOR PIPE SOCKET TO THERMOSTAT HOUSING
47
GASKET , Replaced By: A3559970049
50
SPRING WASHER CABLE TO ALTERNATOR
53
SCREW TRANSMISSION CASE COVER TO TRANSMISSION CASE, UP TO IDENT NO. 207851 FROM IDENT NO. 207852 SEE MICROFICHE MODEL 712.0
56
LINE FROM OIL COOLER TO WATER PUMP
59
ADAPTER FITTING FROM FUEL PUMP TO FILTER
62
GASKET THERMOSTAT HOUSING TO INTERMEDIATE PIECE
65
SPRING WASHERTO 000 268 46 01
68
SCREW BRACKET TO TRANSMISSION,D 203092
71
HOSE
74
CLAMP HOSE FASTENING 50-70X13 MM
74
CLAMP , Replaced By: N000000000672
77
THERMOSTAT , Replaced By: A3552000615
77
HOUSING THERMOSTAT HOUSING
80
COVER THERMOSTAT HOUSING
83
THERMOSTAT ELEMENT 71 DEGREES
83
THERMOSTAT ELEMENT 71 DEGREES, 314 259273 352 437543 353 437436
83
THERMOSTAT ELEMENT , Replaced By: A0052032875
83
THERMOSTAT ELEMENT , Replaced By: A0042038475
86
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
86
SEAL RING , Replaced By: A0249972848
86
SEAL RING AT WATER PUMP
89
SPRING WASHER CABLE TO ALTERNATOR
92
SCREW 3/2-WAY VALVE TO BRACKET M8X55
95
GASKET COOLING WATER LINE TO THERMOSTAT
98
SPRING WASHERTO 000 268 46 01
101
SCREW CROSS MEMBER TO FRAME
104
GASKET THERMOSTAT HOUSING TO INTERMEDIATE PIECE
107
SCREW , NUR GUELTIG BEI AUFLADUNG11007293
110
LOCK WASHER , Replaced By: N912004010102
999
LOOM TIE , Replaced By: N916017050000
999
THERMOSTAT ELEMENT , Replaced By: A0032037975
999
SEAL RING , Replaced By: A0039975748
999
THERMOSTAT , Replaced By: A3552030373
999
LINE , Replaced By: A3452030302
