Главная
›
Mercedes
›
ENGINE
›
OM 346
›
346.919
›

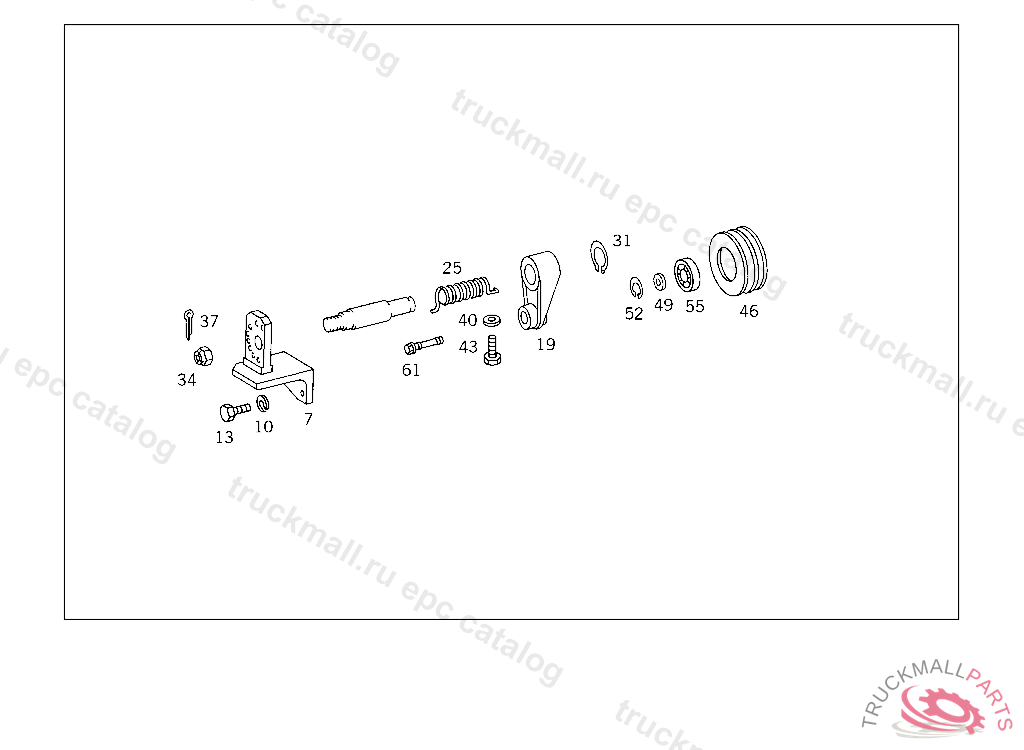

20 ENGINE COOLING SYSTEM
›
001 BELT TIGHTENER PULLEY,SPRING-LOADED
Mercedes A3272020071 - Болт
OM 346 346.919
20 ENGINE COOLING SYSTEM - 001 BELT TIGHTENER PULLEY,SPRING-LOADED
Поз.
Артикул
Описание
7
A3462000040
BRACKET TIGHTENER PULLEY
10
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
13
N000931008007
SCREW
19
A8462000573
LEVER
25
A8469930520
SPRING
31
N000471025002
LOCK RING BEARING BRACKET,4 972621
34
N000935020000
NUT TORSION BAR TO BEARING BRACKET M 20X1.5
37
N000094004065
COTTER PINROCKINGER TYP 260 G140
40
N000125008404
WASHER
43
N304017008016
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
43
N000933008212
SCREW , Replaced By: N304017008016
46
A3462060010
PULLEY
49
A3272020076
WASHER
52
N000472055000
LOCK RING TORSION BAR TO LINK,5 903513
55
N000625016006
GROOVED BALL BEARING ,5 086426
61
A3272020071
SCREW BELT TIGHTENER
999
A3272020020
PIVOT PIN
999
A3462000070
BELT TIGHTENER
999
A8462020076
WASHER
999
A8462021174
PIN
