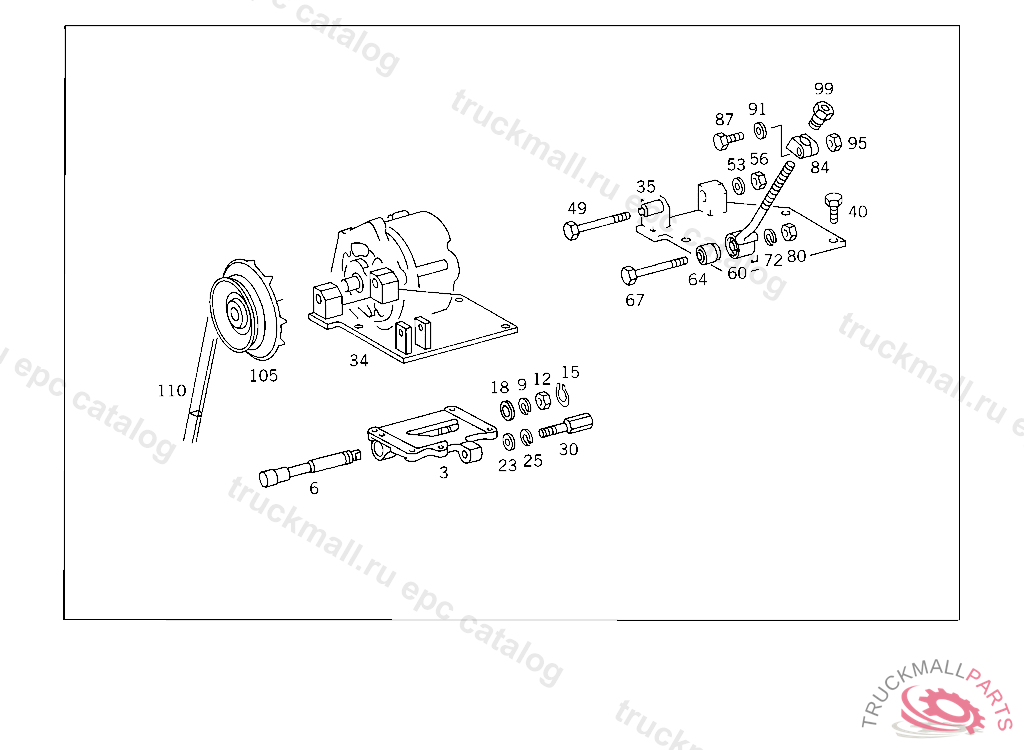

Поз.
Артикул
Описание
3
SUPPORT
3
SUPPORT
6
PIN AIR COMPRESSOR SUPPORT TO BEARING BODY
9
LOCK WASHER SPARE WHEEL TO BRACKET
12
NUT ARTICULATED ROD TO LEVER
15
LOCK RING ,825817, 301,303,304,305, 868276, 311,313,314825818, 301,303,304,305, 868277, 311,313,314 SEE SPARE PARTS LIST 740.3
18
SPACER WASHER
23
WASHER BATTERY CASE TO CONSOLE,600892
25
LOCK WASHER FITTING TO BRACKET
30
SCREW AIR COMPRESSOR SUPPORT TO BEARING HOUSING
34
SUPPORT ALTERNATOR
35
BUSHING
40
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
49
SCREW BRACKET TO ALTERNATOR
53
WASHER , 034 UP TO CHASSIS A 004589
56
NUT
60
CLAMPING BOLT (CLAMPING BOLT)
64
BUSHING
67
GROOVED BALL BEARING
72
SPRING WASHER STEERING COLUMN BRACKET TO CAB
80
NUT
80
NUT , Replaced By: N304032010002
84
CLAMPING PIECE TIGHTENER PULLEY
84
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
84
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
87
SCREW CLAMPING BOLT TO BRACKET
91
WASHER , 034 UP TO CHASSIS A 004589
95
NUT
95
NUT , Replaced By: N304032008006
99
NUT ALTERNATOR
105
FAN , Replaced By: A0001554218
110
NARROW V-BELT , Replaced By: A0039972992
110
V-BELT
999
SCREW PIPE CLAMP
999
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
999
WASHER , Replaced By: N007349013005
999
SCREW , Replaced By: N304017008021
999
NUT TIGHTENER PULLEY TO LEVER
