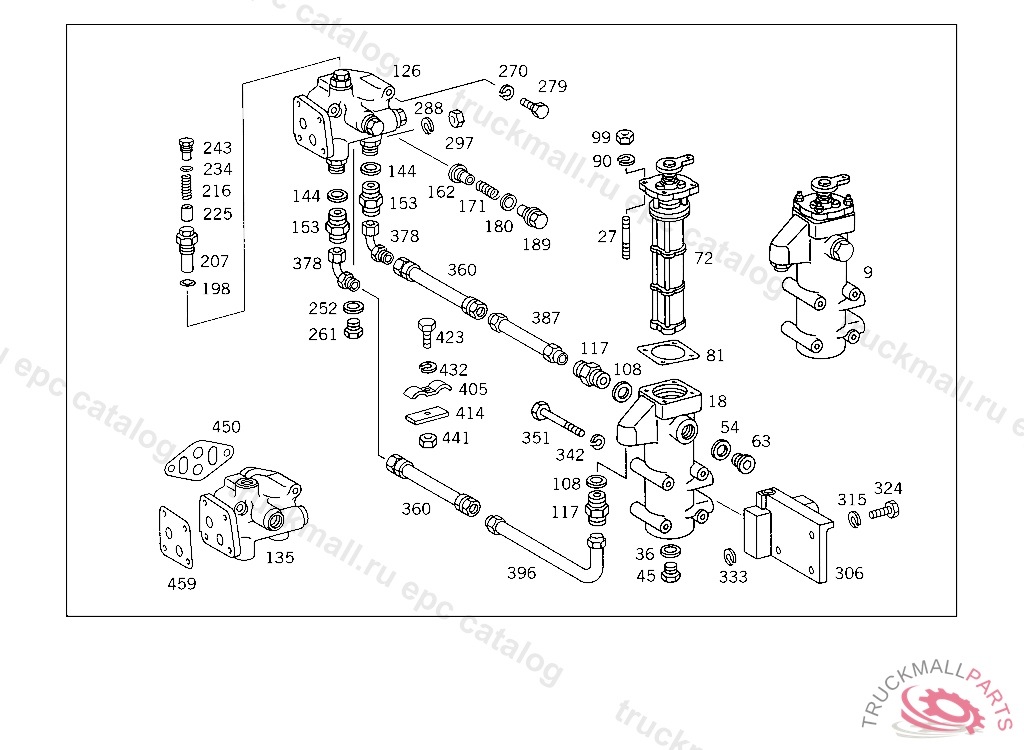

Поз.
Артикул
Описание
9
OIL FILTER , TO BE ADAPTED DURING ASSEMBLY
18
HOUSING
27
STUD BOLT BRACKET TO TRANSMISSION
36
SEAL RING VALVE TO VALVE,K 025179
45
SCREW PLUG
54
SEAL RING AT AIR COMPRESSOR
63
SCREW PLUG FUEL DISCHARGE
63
SCREW PLUG , Replaced By: A3219970630
72
FILTER ELEMENT , Replaced By: A0001846426
72
FILTER ELEMENT
81
GASKET
81
GASKET , Replaced By: A8611840680
90
SPRING WASHER , Replaced By: N000137008212
90
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
99
NUT
99
NUT , Replaced By: N304032008006
108
SEAL RING AT AIR COMPRESSOR
117
SCREW FITTING FUEL TANK BREATHING, UP TO CHASSIS 001001 EXCEPT FOR 000920,000940,000962,000965,000977,000978,000980,000981,000983,000987,000989,000991,000993,000995, 000997.
126
BRACKET OIL COOLER
135
BRACKET
144
SEAL RING AT AIR COMPRESSOR
153
SCREW FITTING FUEL TANK BREATHING, UP TO CHASSIS 001001 EXCEPT FOR 000920,000940,000962,000965,000977,000978,000980,000981,000983,000987,000989,000991,000993,000995, 000997.
162
VALVE
171
SPRING BY-PASS VALVE
180
SEALING RING. SEAL RING OIL DRAIN
189
SCREW PLUG , Replaced By: A3221840056
198
SEAL RING
207
VALVE
216
SPRING
225
PISTON , Replaced By: A3661810042
234
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
243
SCREW PLUG
252
SEAL RING FUEL LINE TO FEED PUMP
261
SCREW PLUG 4/2-WAY VALVE
270
LOCK WASHER FITTING TO BRACKET
279
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD 12X70
279
SCREW , Replaced By: N000931012186
288
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
297
NUT BRACKET TO EXHAUST PIPE BRACKET
306
BRACKET
315
LOCK WASHER FITTING TO BRACKET
324
SCREW BRACKET TO FRAME
333
LOCK WASHER FITTING TO BRACKET
342
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
351
SCREW 3/2-WAY VALVE TO BRACKET M 8X105
360
HOSE LINE
360
HOSE BETWEEN FILTER AND BRACKET
378
PIPE ELBOW BETWEEN FILTER AND BRACKET
387
OIL LINE AT OIL FILTER
396
OIL LINE AT OIL FILTER
405
CLAMP USED FOR PIPE LINES
414
BRACKET USED FOR PIPE LINES
423
SCREW SUPPORT TO FENDER
423
SCREW , Replaced By: N304017008018
432
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
441
NUT
441
NUT , Replaced By: N304032008006
450
GASKET , Replaced By: A3551840680
450
GASKET OIL FILTER TO CYLINDER CRANKCASE
459
GASKET OIL COOLER TO OIL FILTER
459
GASKET , Replaced By: A3551840580
999
HOLLOW SCREW
999
SEAL RING FUEL LINE TO FEED PUMP
999
FITTING
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
VALVE , Replaced By: A3551840032
999
SCREW PLUG
999
OIL FILTER , Replaced By: A3551801510
999
FILTER BOWL , Replaced By: A0461840002
999
VALVE FLANGE TO EXHAUST MANIFOLD
999
SPRING ,4 263013
999
ELBOW FITTING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3141800758
999
BANJO UNION FUEL LINES AND BREATHING
