Поз.
Артикул
Описание
1

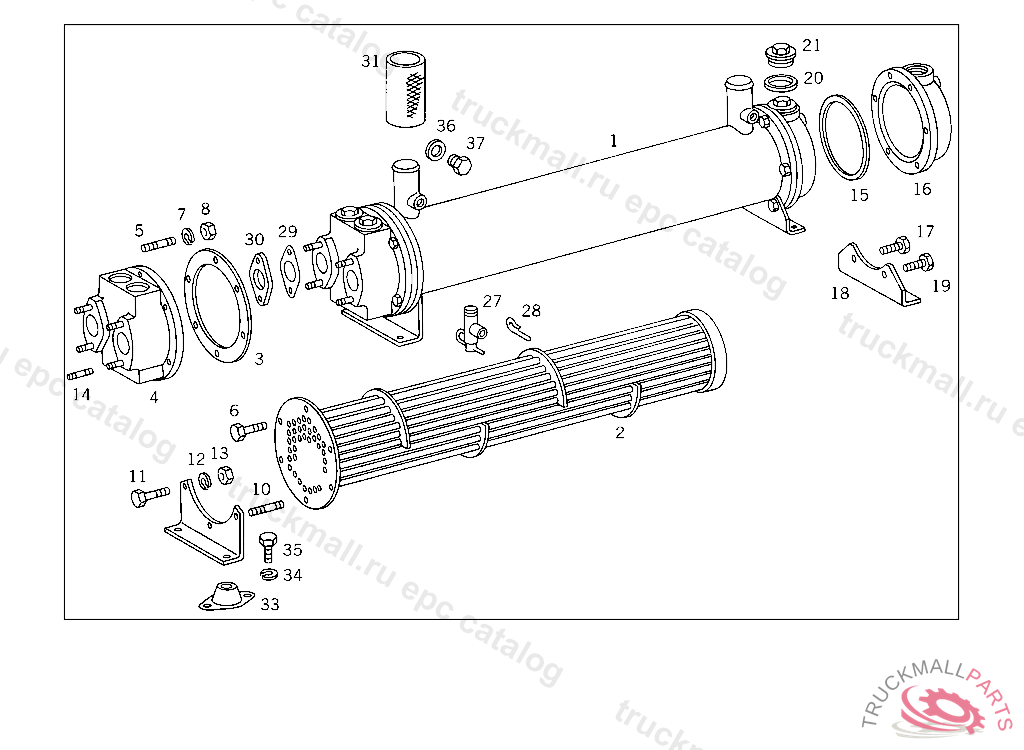

RADIATOR MADE TO SPECIFICATIONS OF: NORSKE VERITAS 33, ORDER NUMBER: 026 200 10 75/33
2
LINE
3
GASKET
4
END PIECE FRONT
5
STUD BOLT , Replaced By: N000939008078
5
STUD BOLT COVER TO CASE
6
SCREWM 8X40
7
LOCK WASHER
8
NUT
8
NUT , Replaced By: N304032008006
10
STUD BOLT BRACKET TO CROSS MEMBER
11
SCREW VALVE TO BRACKET
12
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
13
NUT
13
NUT , Replaced By: N304032008006
14
STUD BOLT , Replaced By: N000939008078
14
STUD BOLT COVER TO CASE
15
SEAL RING
16
END PIECE REAR
17
HEX, HEAD. SCREW
18
BRACKET
19
SCREW SUPPORT TO FENDER
19
SCREW , Replaced By: N304017008018
20
SEAL RING , Replaced By: N007603038101
20
SEAL RING OIL COOLER CONNECTION
21
SCREW PLUG
27
VALVE
28
SPRING ,4 263013
29
GASKET , Replaced By: N917003036000
29
GASKET
30
FLANGE
31
HOSE
33
RUBBER BUFFER
34
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
35
HEXAGON HEAD BOLT BRACKET TO TRANSMISSION
36
SEAL RING FUEL LINE TO FEED PUMP
37
SCREW PLUG , Replaced By: N007604014110
37
SCREW PLUG FUEL TANK
999
LOOM TIE , Replaced By: N916017040000
999
BRACKET
999
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
999
NUT , Replaced By: N304032008006
999
CLAMP , Replaced By: N000000000671
