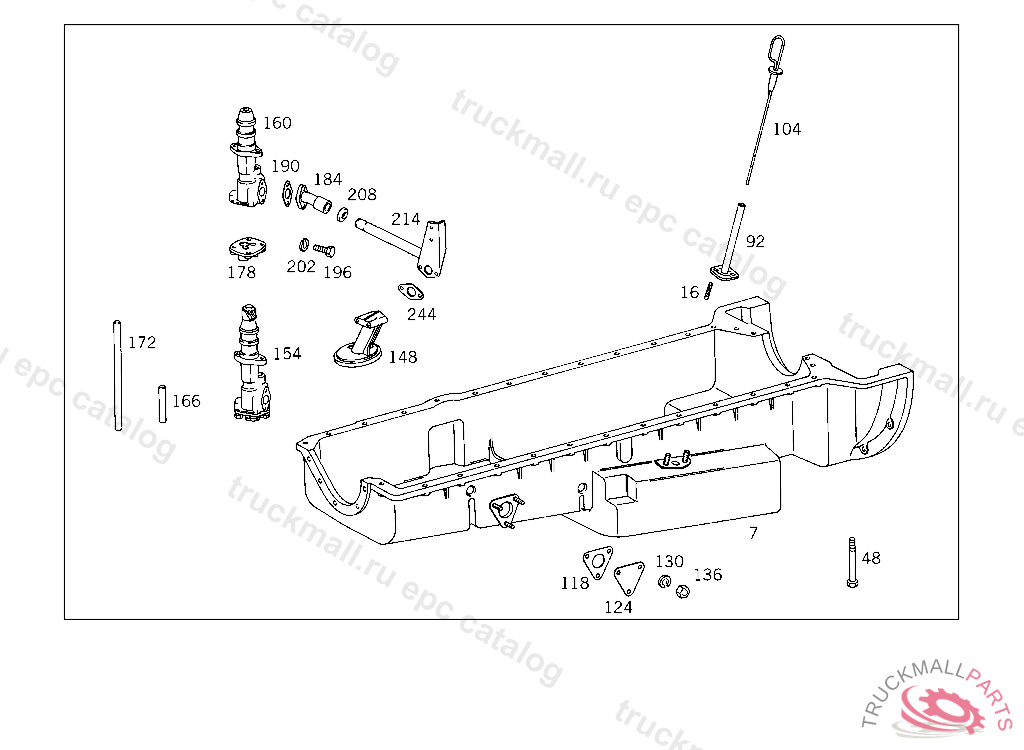

Поз.
Артикул
Описание
7
OIL PAN , Replaced By: A3550101113, +001N007603018101, +001N007604018101
16
STUD SHIFT CASE TO 352 260 12 14,352 260 17 14,4 473926 FROM IDENT NO. SEE MICROFICHE MODEL 714.0 FROM IDENT NO. SEE MICROFICHE MODEL 714.0
48
SCREW BRACKET TO SIDE MEMBER, 815770
92
GUIDE TUBE
104
OIL DIPSTICK
118
GASKET OIL FILLER NECK TO OIL PAN
118
GASKET , 045509
124
FLANGE TO LOCK OIL FILLER FLANGE,BOTTOM
130
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
136
NUT
136
NUT , Replaced By: N304032008006
148
SUCTION PIPE
154
OIL PUMP
160
HOUSING
166
OIL PUMP SHAFT
172
DRIVE SHAFT
178
COVER
184
FITTING
190
SEAL. GASKET , Replaced By: A3661880880
190
GASKET , Replaced By: N917003026003
196
SCREW , Replaced By: N304017008021
196
SCREW PIPE CLAMP
202
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
208
SEAL RING
214
SUCTION PIPE
244
SEAL. GASKET , Replaced By: A3661880880
244
GASKET , Replaced By: N917003026003
999
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
999
THREADED INSERT
999
SCREW BRACKET TO BEARING BRACKET
999
SCREW BRACKET TO CROSS CONNECTION STRUT
999
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
999
SCREW PLUG RELAY VALVE,CONNECTIONS: "23"
999
SCREW PLUG
999
SEAL RING AT AIR COMPRESSOR
999
SEAL RING LINE CONNECTION
999
SEAL RING VALVE TO VALVE,K 025179
999
NUT
999
NUT , Replaced By: N304032008006
999
SCREW , Replaced By: A0099900101
999
SCREW , Replaced By: N304017008045
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008027
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N000933008337
999
SCREW COMPRESSED AIR ELBOW
999
SCREW OIL FILTER TO SUPPORT M 8X150
999
SCREW BRACKET TO TRANSMISSION CASE
999
HEX. HEAD. SCREW ,A 057455, 341.023,027,032,034,036,038,041,042,043,044,045 FROM IDENT NO. A 057456 SEE SPARE PARTS LIST 713.0, MF 859A 077314, 341.116 FROM IDENT NO. A 077315 SEE SPARE PARTS LIST 713.0, MF 859
999
LOCK WASHER DELIVERY AND SUCTION LINES TO PIPE CLAMP,1401150112256208
999
WASHER EXHAUST MUFFLER TO STRAP
999
WASHER , Replaced By: N000125008443
999
WASHER , 034 UP TO CHASSIS A 004589
999
SCREW PLUG
999
SUCTION PIPE WITH RQV GOVERNOR
999
SUCTION PIPE , Replaced By: A3551800852
999
PIN , 035612
999
FLYWHEEL WITH RING GEAR
999
CRANKCASE
999
OIL PAN
999
OIL PAN
999
OIL PAN , 910,914,915,951 FROM ENGINE 043951 EXCEPT FOR 043994,043999 CONTINUED,SEE FOOTNOTE 61
999
OIL DIPSTICK
999
CAP , Replaced By: A0000180702
999
SCREW PLUG AT TANK
999
SCREW PLUG , Replaced By: A4039970230
999
SCREW ,058651
999
HOUSING
999
OIL PUMP
999
FLYWHEEL , Replaced By: A3550301005
999
BREATHER PIPE
999
COVER
999
PIN BRAKE CYLINDER AND ANGULAR LEVER TO OIL PAN
999
OIL PAN
999
DRIVE SHAFT
999
SUCTION PIPE
999
OIL DIPSTICK
999
OIL PAN
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
