Поз.
Артикул
Описание

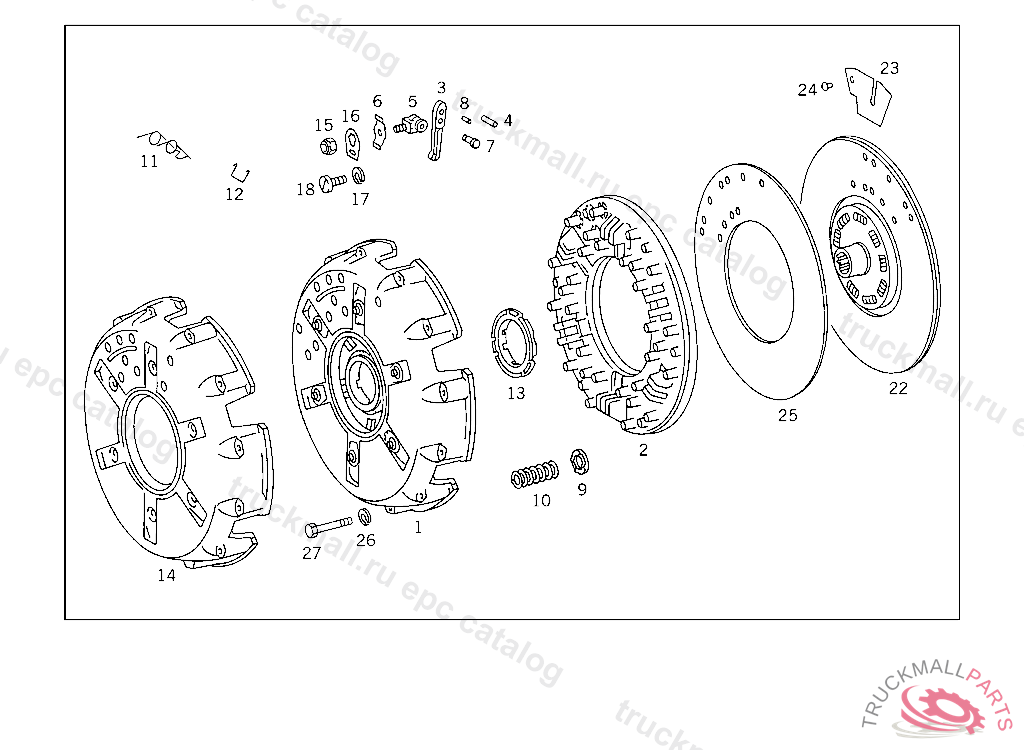

1
CLUTCH PRESSURE PLATE , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
1
CLUTCH PRESSURE PLATE , Replaced By: A0032502004
1
CLUTCH PRESSURE PLATE , Replaced By: A0032502204
2
PRESSURE PLATETO 001 250 07 04
2
PRESSURE PLATE
3
RELEASE LEVER CLUTCH ACTUATION
3
RELEASE LEVER , Replaced By: A0002524613
4
SPINDLE FOR BEDDING THE LEVERS IN CLUTCH PRESSURE PLATE
5
BRACKET RELEASE LEVER
5
BRACKET , Replaced By: A0002520614
6
LEAF SPRING THIGH SPRING SUSPENDED BELOW LEAF SPRING
6
LEAF SPRING THIGH SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
7
SPINDLE , Replaced By: A0002522816, +001N006799007003
7
SPINDLE , Replaced By: A0002522816, +001A1249945241
7
SPINDLE FOR BEDDING THE LEVERS IN BRACKETS
8
ROLLER FOR BEDDING THE LEVERS IN BRACKETS
9
INSULATING WASHER
10
PRESSURE SPRING SPRING STEEL WIRE DIA., 3.75 MM
11
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
11
SPRING , Replaced By: A0002523227
12
CLAMP , Replaced By: A0002523227
12
CLAMP RELEASE FLANGE TO RELEASE LEVER
13
FLANGE
13
FLANGETO 001 250 07 04,003 250 20 04
14
HOUSING
15
NUT , Replaced By: A0002523072
15
NUT FOR BRACKETS
16
LOCK FOR BRACKETS
16
LOCK , Replaced By: A0002521073
17
LOCK WASHER BRACKET TO STEERING COLUMN END
18
SCREW BATTERY CABLE MOUNTING AND MAIN CABLE HARNESS MOUNTING
22
CLUTCH DISC , Replaced By: A0032505103
22
CLUTCH DISC
23
LEAF SPRING , REBORE HOLE IN SUPPORTING PLATE FROM 5.2MM TO 6.2MM, Replaced By: A0002523819, +002A0002523975
24
RIVET LEAF SPRING TO CLUTCH DISC 5X6 MM
24
RIVET , Replaced By: A0002522075
25
CLUTCH LINING
26
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
27
SCREW , Replaced By: N304017010055
27
SCREW , Replaced By: N304017010050
999
HOHLNIET. RIVET , Replaced By: A0002521175
999
SLEEVE CLUTCH PRESSURE PLATE
999
SPRING SUSPENDED IN CLUTCH PRESSURE PLATE HOUSING
999
RIVET , Replaced By: A0002524075
999
RIVET LINING WITH INTERMEDIATE SPRING
999
RIVET LEAF SPRING TO CLUTCH DISC
999
HOUSING , FROM ENGINE 053186 ALSO INSTALLED ON 050162,050163
999
SPRING SUSPENDED BELOW LEAF SPRING
999
SPRING SUSPENDED BELOW LEAF SPRING
999
RIVET
999
PRESSURE SPRING SPRING STEEL WIRE DIA., 4.00 MM
999
CLUTCH PRESSURE PLATE
999
END COVER
999
CLUTCH SHAFT
999
TRANSMISSION CASE COVER
999
HOUSING WIDTH, 184.00 MM
999
COTTER PIN
999
BALL BEARING. GROOVED BALL BEARING FAN DRIVE,D 276362
999
GROOVED BALL BEARING CRANKSHAFT
999
SELF-ALGN. ROLLER BEARING
999
STUD
999
SCREW , Replaced By: N304017008043
999
NUT , Replaced By: N304032008006
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
LOCK PLATE RELEASE LEVER TO SHAFT
999
LOCK PLATE LEVER TO BRACKET
999
SCREW FRONT SHIFTING ROD TO REAR SHIFTING ROD
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW-IN FITTING RELEASE COLLAR LUBRICATION
999
HOSE
999
SCREW VALVE TO BRACKET M 8X55
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
