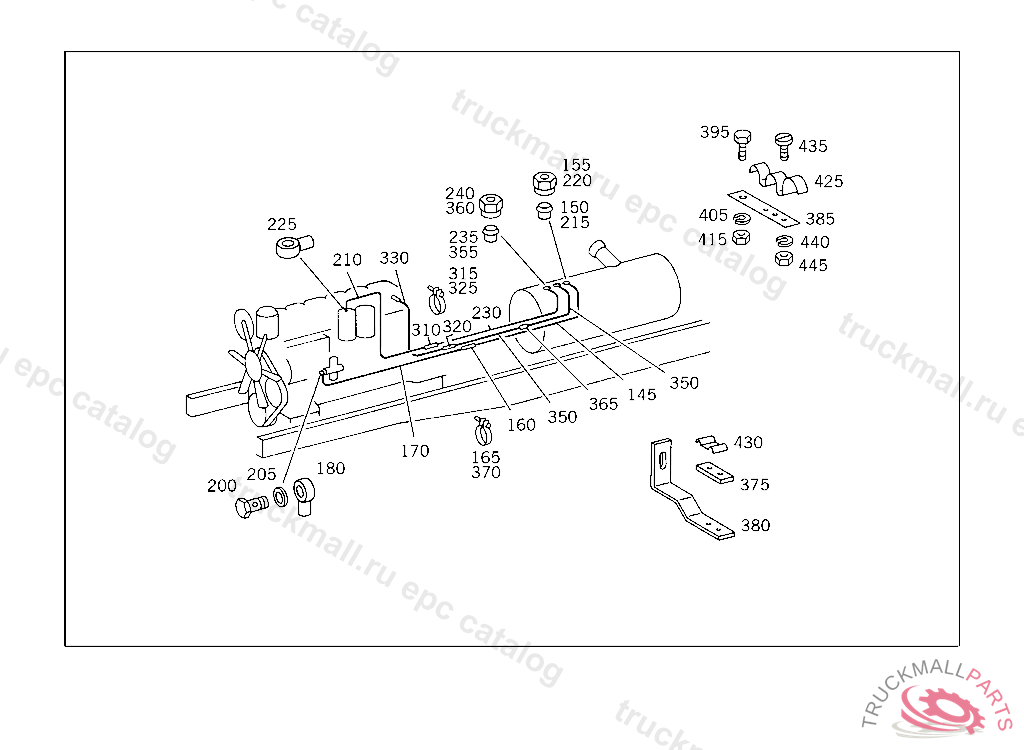

Поз.
Артикул
Описание
145
150
SEAL CONE
155
NUT. UNION NUT RETURN
160
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
165
CLAMP , Replaced By: A0059972790
170
180
BANJO UNION FUEL LINE TO FUEL TANK
200
HOLLOW SCREW
205
SEAL RING FUEL LINE TO FEED PUMP
210
215
SEAL CONE
220
NUT. UNION NUT RETURN
225
BANJO UNION FUEL LINE TO FUEL TANK
230
235
SEAL CONE
240
NUT. UNION NUT RETURN
310
GUMMISCHLAUCH 9. HOSE AT SENDER UNIT
315
CLAMP , Replaced By: A0059972790
320
HOSE RETURN
325
CLAMP LINE MOUNTING
350
355
SEAL CONE
360
NUT. UNION NUT RETURN
375
BRACKET FUEL LINES
380
BRACKET FUEL LINES
385
SHIM , Replaced By: A3184924841
385
BRACKET PULL ROD TO SUPPORT,5 352764 TO BE ADAPTED DURING ASSEMBLY
395
SCREW ENGINE CROSS MEMBER TO SIDE MEMBERS M 10X25
405
LOCK WASHER REINFORCEMENT ANGLE TO SIDE MEMBER, 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
415
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
425
CLAMP LINE MOUNTING
430
CLAMP
435
SCREW FUEL LINE TO BRACKET
440
LOCK WASHER CLAMP TO BRACKET
445
NUT , Replaced By: N304032006004
999
BALL-TYPE NIPPLE. SEAL CONE , Replaced By: A3449907067
999
NUT BALL PIVOT TO LEVER
999
STRAP , Replaced By: A3224700140
999
CLAMP FUEL LINE TO BRACKET
999
BRACKET FUEL LINE
999
SEAL RING OIL TANK TO PUMP, 010,10/20 FROM CHASSIS 047544,010,12/22 FROM CHASSIS 047523,012,10/20 FROM CHASSIS 103834,012,12/22 FROM CHASSIS 103937 NOT FOR USE WITH MERCEDES-BENZ HYDRAULIC-AUTOMATIC CLUTCH
