Поз.
Артикул
Описание

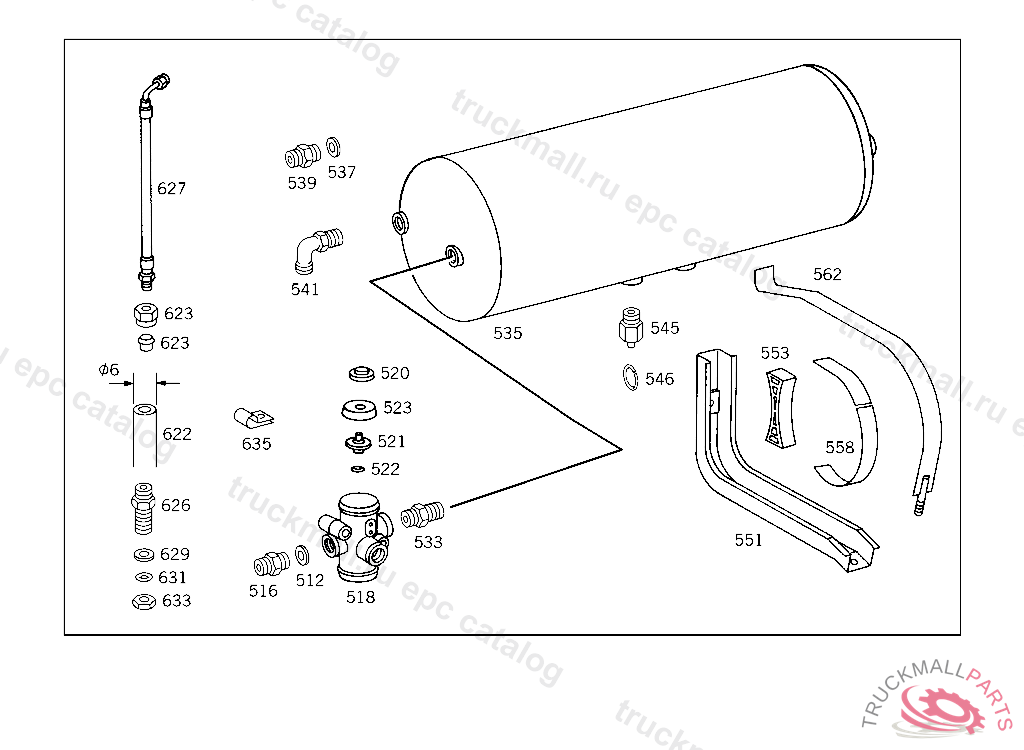

512
SEAL RING LINE CONNECTION
516
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
518
VALVE , FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
520
VALVE DISC024, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
521
VALVE DISC101
522
SEALBOSCH 024, FROM CHASSIS 674068 ALSO INSTALLED ON, 500001-599999,673550,673631,673890,673916-673918,673922,673927
523
CUP , INCLUDED IN RANGE OF DELIVERY OF 000 431 68 06
533
FITTING SHUTTLE VALVE,CONNECTION: "20"
533
FITTING , Replaced By: A0019972372
535
RESERVOIR ,5 936755, Replaced By: A0034322701, +002A0009970934
535
RESERVOIR COMPRESSED AIR 60 L.
537
SEAL RING LINE CONNECTION
539
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
541
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
545
VALVE DRAIN, Replaced By: A0004322107
545
VALVE DRAIN, Replaced By: A0004322407
545
VALVE. DRAIN VALVE DRAIN
546
RING DRAIN VALVE TO 000 432 08 07, NOT USED
546
RING , Replaced By: A0005830296
551
CONSOLE , 674067
551
CONSOLE AIR RESERVOIR TO SUPPORT
551
CONSOLE , Replaced By: A3224320215, +002N913004012000
553
BASE AIR RESERVOIR TO CONSOLE
558
RUBBER STRIP , Replaced By: A3604750020
562
STRAP AIR RESERVOIR TO CONSOLE
562
STRAP AIR RESERVOIR TO CONSOLE
622
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
622
LINE , Replaced By: A0004296201
623
UNION NUT
626
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
627
HOSE PRESSURE GAUGE
629
WASHER
631
TOOTHED WASHER ELECTRIC CABLE TO FUSE BOX
633
NUT FITTING TO FIRE WALL
635
CLAMP LINE MOUNTING
999
SCREW PLUG , Replaced By: A0004315433
999
RESERVOIR , Replaced By: A0004311602
999
BLEEDER VALVE , Replaced By: A0004310265
999
PROTECTIVE CAP , Replaced By: A0004217187
999
PROTECTIVE CAP , Replaced By: A0004210887
999
PROTECTIVE CAP ,5 962906
999
BRACKET. LOCK , Replaced By: A6525040038
999
CONNECTOR , Replaced By: A0004292736
999
BRAKE HOSE REAR
999
BRAKE HOSE
999
LINE , Replaced By: A0005516256
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
LINE , Replaced By: A0005516456
999
LINE FROM VALVE TO CONNECTION FITTING,K 172343 ORDER BY THE METER
999
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
ADAPTER FITTING , Replaced By: N074313008101
999
CONNECTOR OIL DELIVERY LINE
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
999
T-FITTING
999
HOSE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER 8 X 14 MM, ORDER BY THE METER4 940458
999
KAPPENVENTIL. VALVETO 002 430 31 01,344 430 80 01
999
REPAIR KITTO 002 431 15 06,WABCO, 975 300 750 0,5 161700
999
REPAIR KITTO 001 431 06 06,BOSCH 0 481 039 101,5 148812
999
REPAIR KIT DIAPHRAGM PART BOSCH,209
999
PISTONTO 002 430 84 01
999
VALVE , Replaced By: A0004305681
999
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
REPAIR KITTO 000 430 56 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
VALVE HAND BRAKE VALVE KNORR, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KIT SEAL RING BOSCH,209
999
REPAIR KITTO 000 431 89 14
999
STRAINERTO 002 430 31 01
999
SPRING RETAINER
999
VALVE , Replaced By: A3075530107
999
WASHER , Replaced By: A0004311176
999
SLIDETO 000 431 50 14,000 431 24 14
999
FILLER RING
999
FILTER BOTTOMTO 000 431 24 14
999
DICHTSCHEIBE. SEAL RING
999
CUP SECONDARY
999
THREADED UNION
999
FILLER CAP , Replaced By: A0004315133
999
BRAKE BOOSTER , Replaced By: A0004318914
999
WASHER
999
GASKETTO 000 431 77 14,KNORR
999
WASHER , Replaced By: A0004312176
999
GASKET34X2X6 MM,GRAU
999
WASHER
999
CUPTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 724
999
VALVE SEATGRAU
999
PISTONTO 002 430 21 01,002 430 36 01
999
FILLER CAP , Replaced By: A0004315133
999
BRAKE CYLINDER , Replaced By: A3644317014
999
FILLER CAPTO 000 431 16 02
999
SPRING
999
VALVE , Replaced By: A0004319106
999
VALVE , Replaced By: A0004319206
999
BRAKE CYLINDER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0014316514
999
VALVE104
999
PROTECTIVE CAP
999
CUP , Replaced By: A0004319186
999
PROTECTIVE CAP101
999
CUP , Replaced By: A0015864342
999
PISTONTO 000 431 21 14,BOSCH
999
PROTECTIVE CAPTO 000 431 24 14
999
CUPTO 000 431 50 14
999
SEAL RINGTO 002 430 72 01,SCHAEFER
999
CUPTO 000 431 76 14
999
CUPTO 000 431 77 14,KNORR
999
VALVE , Replaced By: A0004320807
999
VALVE , Replaced By: A0004320807
999
GASKETTO 000 429 16 30
999
REPAIR KITTO 002 430 61 01
999
SLEEVE , Replaced By: A0007630553
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
T-FITTING FITTING,5 461950
999
BUSHING , Replaced By: N915062009000
999
SPRING , Replaced By: A0009935205
999
CLAMP , Replaced By: N916016015200
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
FITTING RELAY VALVE,CONNECTION: "1,2"
999
BRAKE HOSE
999
BRAKE HOSE REAR AXLE
999
REPAIR KIT PRESSURE REGULATOR WABCO
999
BRAKE MASTER CYLINDER
999
CUP , Replaced By: A0004312786
999
SEAL RINGTO 000 431 77 14,KNORR,4 415092
999
SEAL RING28X2 MM,GRAU
999
SEAL RING86X2 MM,GRAU
999
CUPTO 001 431 65 14
999
GASKET , Replaced By: A0004311980
999
CUP , Replaced By: A0014312386
999
CUPTO BOSCH-NR.0481 027 104
999
PRESSURE REGULATOR"WABCO",486597
999
CUP101
999
PRESSURE REGULATORWABCO
999
PRESSURE REGULATOR , EXHAUST STOCK OF OLD PARTS FROM CHASSIS 4 208908-5 148812, Replaced By: A0024315906
999
PRESSURE REGULATOR , Replaced By: A0024316006
999
BRAKE CYLINDER SPRING LOAD ACCUMULATOR, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
REPAIR KIT , Replaced By: A0004303183
999
REPAIR KIT , Replaced By: A0034201724
999
REPAIR KIT , Replaced By: A0004301107
999
REPAIR KIT , Replaced By: A0004301407
999
REPAIR KIT
999
SEAL CONE LINE CONNECTION
999
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
999
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
FITTING
999
LOOM TIE LINE MOUNTING 280 MM
999
WHEEL BRAKE CYLINDER , Replaced By: A0034207918
999
WHEEL BRAKE CYLINDER , Replaced By: A0034207818
999
WHEEL BRAKE CYLINDER , Replaced By: A0034207818
999
REPAIR KIT VALVE KIT WABCO,5 148812
999
BRAKE MASTER CYLINDER FRONT/REAR BRAKE CIRCUIT "TEVES"
999
BRAKE MASTER CYLINDER , Replaced By: A0024302101
999
PRESSURE REGULATORBOSCH
999
PRESSURE REGULATOR"WESTINGHOUSE", TO 001 429 60 44
999
PRESSURE REGULATOR , Replaced By: A0024315906
999
REPAIR KIT , Replaced By: A0004309160
999
REPAIR KITTO 000 431 56 14,001 431 13 14,WABCO
999
REPAIR KITKNORR
999
REPAIR KIT , UP TO 625
999
REPAIR KITTO 000 431 91 06,BOSCH 0 481 039 011, UP TO BOSCH N 625
999
REPAIR KITGRAU,5 148812
999
REPAIR KIT , Replaced By: A0034303881
999
REPAIR KITTO 001 431 12 06, KNORR 3200
999
FITTING (PARTS KIT),LINE RUPTURE
999
SEAL RING
999
REPAIR KITTO 001 431 65 14,000 431 24 14
999
WHEEL BRAKE CYLINDER
999
BRAKE MASTER CYLINDER , INAPPLICABLE FOR CHASSIS 352.402-22-814329
999
REPAIR KITTO 000 430 66 81,000 430 67 81, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
999
BRAKE BOOSTERWESTINGHOUSE
999
WASHER COVER TO P.T.O. CASE
999
SEAL RING42X21.5 MM
999
SEAL RINGTO 000 431 24 14
999
FITTING , Replaced By: A0029906171
999
SEAL RING , Replaced By: A0179974148
999
SEAL RINGTO 000 431 77 14,KNORR
999
SEAL RING22.3X2.4 MM,GRAU
999
SEAL RINGTO 000 429 28 95,GRAU
999
WHEEL BRAKE CYLINDER LESS THRUST PIN 46.83 MM,TEVES
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
SEAL RINGTO 000 431 21 14,BOSCH, WITH BOSCH CHARACTERISTIC NUMBER 723
999
HOSE , Replaced By: A0009872827
999
SEAL RING101
999
THRUST SHACKLE , UP TO REAR AXLE029311, Replaced By: A3024201419, +001A3024230874, +001A3024940109, +001N000933008106, +001N912004008102
999
ADJUSTER , Replaced By: A3025860442
999
ADJUSTER , Replaced By: A3025860342
999
THRUST SHACKLE , Replaced By: A3834200389
999
BRAKE ANCHOR PLATE , Replaced By: A3024203917
999
BRAKE ANCHOR PLATE , Replaced By: A3024204017
999
ADJUSTER , Replaced By: A3025860342
999
REPAIR KIT BRAKE READJUSTMENT,1 239644
999
BRAKE ANCHOR PLATE LEFT
999
SHACKLE
999
SLIDE IN ITS PLACE,YOU MAY ALSO USE MERCEDES-BENZ PART NO.: 302 421 01 29
999
SHACKLE , Replaced By: A3385860242
999
SLIDE , Replaced By: A3024210229
999
SLIDE , Replaced By: A3024210329
999
SLIDE BRAKE READJUSTMENT
999
PIVOT PIN , Replaced By: A3024230518
999
ADJUSTING LEVER LEFT
