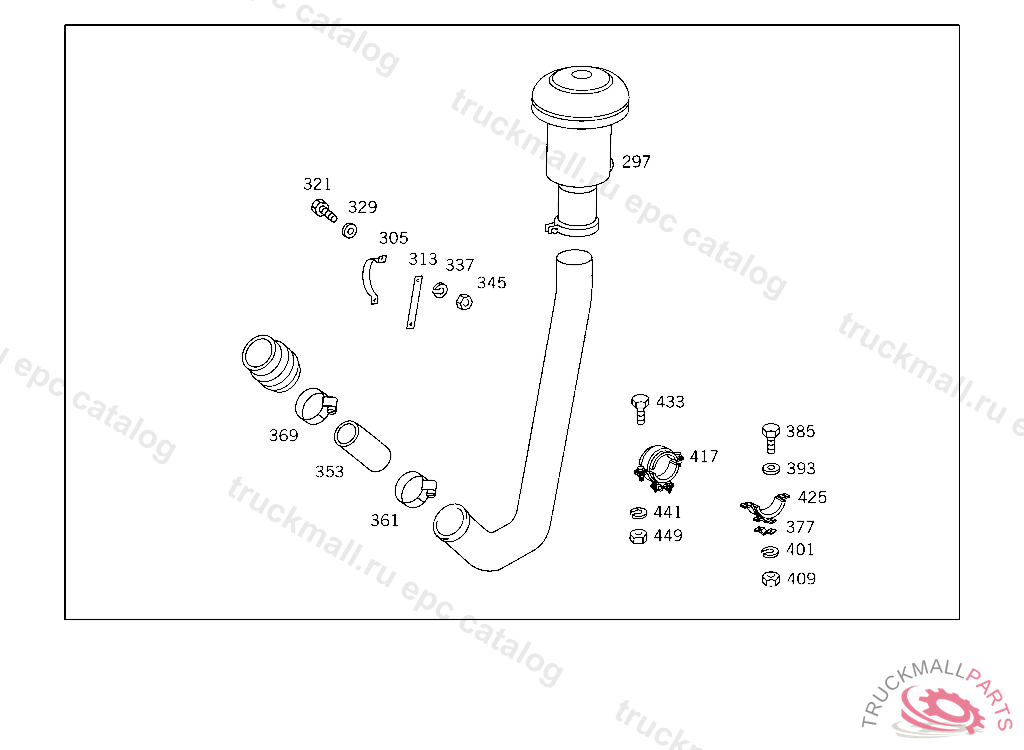

Поз.
Артикул
Описание
297
AIR CLEANER
305
CLAMP
313
BRACKET
321
SCREW CLAMP TO BRACKET AND TO PIPE
321
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
321
SCREW , Replaced By: N304017008016
329
WASHER EXHAUST MUFFLER TO STRAP
329
WASHER , Replaced By: N000125008443
337
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
345
NUT
353
HOSE 250 MM LONG FROM OIL BATH AIR CLEANER TO AIR INTAKE PIPE,CLEANER AIR
361
LOOM TIE , Replaced By: N916018110000
361
CLAMP , Replaced By: A0059971490
361
HOSE CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE, Replaced By: A0019951910
361
LOOM TIE , Replaced By: A0009979990
369
CLAMP , Replaced By: A0059972990
369
LOOM TIE
369
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
369
CLAMP , Replaced By: N000000000675
369
LOOM TIE , Replaced By: N916018080000
377
CLAMP
385
SCREW COVER PLATE TO BRACKET
385
SCREW CAB FLOOR COVERING M 6X25
393
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
401
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
409
NUT BALL PIVOT TO LEVER
417
BRACKET
425
BRACKET
433
SCREW COVER PLATE TO BRACKET
441
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
449
NUT BALL PIVOT TO LEVER
999
HOSE
999
LINE , Replaced By: A0004296201
999
LINE FEED AND RETURN LINES TO FUEL TANK 10X0.7 MM, LENGTH AVAILABLE 25.000 MM
999
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
999
AIR CLEANERMANN & HUMMEL
999
AIR CLEANER
999
AIR CLEANER , Replaced By: A0060946502
999
CLAMP
999
INTAKE PIPE
999
CLAMP
999
AIR INTAKE PIPE
999
BRACKET
999
AIR INTAKE PIPE
999
STRUT BRACKET TO SIDE MEMBER, UP TO IDENT NO. 676464 EXCEPT FOR 500001-599999
999
BEARING BRACKET , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999,673430,673630,673576
999
PIN , UP TO IDENT NO. 674067 EXCEPT FOR 500001-599999,673430,673630,673576
999
BRAKE LEVER , FROM CHASSIS 674068 ALSO INSTALLED ON 673430,673432,673497,673550,673576,673628,673629,673630,673631,673890,673916,673917,6739 18,673921,673922,673927
999
LINE FROM OIL TANK TO SUCTION LINE HOSE
999
BRACKET OIL TANK,5 236371
999
BRACKET OIL TANK
999
LINE FROM HOSE TO STEERING
999
LINE , Replaced By: A3604666465
999
LINE , Replaced By: A3604606424
999
LOCK WASHER , Replaced By: N912004010102
999
SCREW , Replaced By: N304017008021
999
WASHER , Replaced By: N009021008213
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
SCREW PIPE CLAMP
