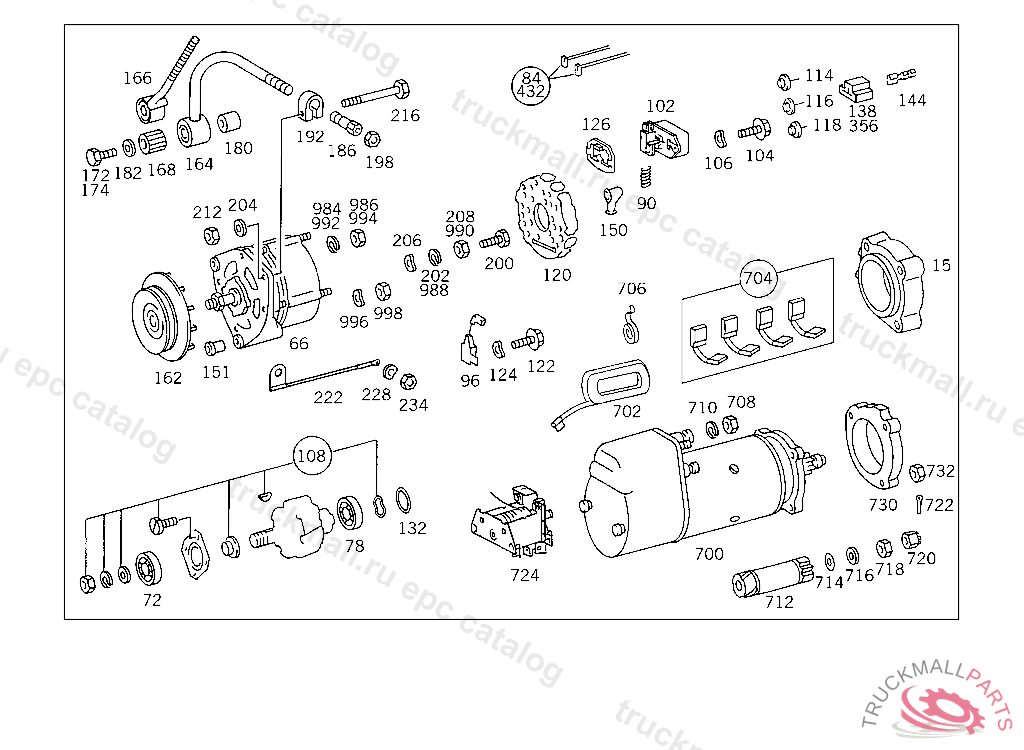

Поз.
Артикул
Описание
15
INTERMEDIATE PIECE
66
ALTERNATOR14V/65A, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
72
GROOVED BALL BEARING
72
GROOVED BALL BEARING
72
BALL BEARINGTO 007 154 27 02, 009 154 07 02
72
BALL BEARING , Replaced By: A0079816625
72
GROOVED BALL BEARING , Replaced By: N000625436303
72
BALL BEARINGTO 005 154 32 02
78
GROOVED BALL BEARING
78
GROOVED BALL BEARING SLIP RING SIDE TO 005 154 11 02
78
BALL BEARING , Replaced By: A0089811225
78
BALL BEARINGTO 005 154 34 02
78
BALL BEARINGTO 007 154 27 02, 009 154 07 02
84
CARBON BRUSH SET , Replaced By: A0001548114
84
CARBON BRUSH SETTO 007 154 27 02
84
CARBON BRUSH SETTO 005 154 34 02
84
CARBON BRUSH SETTO 009 154 07 02
84
CARBON BRUSH SET
90
SPRING
90
SPRING
96
CONDENSER
96
CONDENSER
102
REGULATORTO 007 154 26 02
102
REGULATOR AND CUT-OUTTO 005 154 34 02
102
REGULATOR AND CUT-OUT ,4 477130
102
REGULATOR AND CUT-OUT , Replaced By: A0001541805
102
REGULATOR AND CUT-OUT , Replaced By: A0001541705
102
REGULATORTO 007 154 27 02
104
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
104
SCREW , Replaced By: N007985004130
104
SCREW REGULATOR MOUNTING TO 009 154 07 02
106
SPRING WASHER ALTERNATOR CONNECTION D+
108
REPAIR KIT ROTOR TO 005 154 52 02
108
REPAIR KIT (PARTS KT),ROTOR TO 007 154 27 02,009 154 07 02
108
REPAIR KIT , Replaced By: A0001500472
108
REPAIR KIT
108
REPAIR KIT
114
DIODE NEG.
114
DIODE
116
DIODE POS.
118
DIODE
120
RECTIFIERTO 005 154 29 02
120
RECTIFIERTO 005 154 83 02,006 154 67 02
120
RECTIFIER
120
RECTIFIERTO 005 154 34 02
120
RECTIFIER
120
RECTIFIER , Replaced By: A0001544716
120
RECTIFIER , Replaced By: A0011541516
120
RECTIFIER , Replaced By: A0011541116
120
RECTIFIER , Replaced By: A0011541616
120
RECTIFIER , Replaced By: A0011542116
120
RECTIFIER , Replaced By: A0011542716
120
RECTIFIER , Replaced By: A0011542116
122
SCREW T-FITTING TO BRACKET M4X25
124
SPRING WASHER ALTERNATOR CONNECTION D+
126
GASKET
132
SEAL RINGTO 005 154 34 02
132
RINGTO 007 154 27 02
138
PIN BUSHING HOUSING 3-POLE,4 483482
144
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
150
BOOT HEATER PLUGS
150
BOOTTO 003 154 39 02
151
BUSHING ALTERNATOR MOUNTING FOOT TO 005 154 33 02
162
FAN ALTERNATOR
164
CLAMPING BOLT (CLAMPING BOLT)
164
CLAMPING BOLT (CLAMPING BOLT)
164
CLAMPING BOLT COMPLETE
166
CLAMPING BOLT , Replaced By: A3551500372
166
SCREW , Replaced By: A3761500072
166
CLAMPING BOLT , Replaced By: A4211500072
166
CLAMPING BOLT , Replaced By: A3551500372
166
CLAMPING BOLT COMPLETE
166
CLAMPING BOLT (CLAMPING BOLT)
166
CLAMPING BOLT (CLAMPING BOLT)
168
BUSHING
168
BUSHING
168
BUSHINGTO 355 150 03 72,366 150 13 72
172
SCREW , Replaced By: N304017010047
172
SCREW CONNECTOR TO REAR SHIFTING ROD
174
SCREW STEERING SUPPORT TO FRAME M 10X75
174
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
174
SCREW , Replaced By: N304017010035
180
SPACER TUBE CLAMPING BOLT TO CYLINDER CRANKCASE
182
WASHER CLAMPING BOLT TO CYLINDER CRANKCASE
182
SPACER WASHER ENGINE REAR SUPPORT TO RUBBER MOUNTING
186
NUT TIGHTENER PULLEY TO LEVER
192
CLAMPING PIECE TIGHTENER PULLEY
192
CLAMPING PIECE TIGHTENER PULLEY TO LEVER
192
CLAMPING PIECE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3141550228
198
NUT , 058 USED WITH HYDRAULIC BRAKE, UP TO CHASSIS 589554
198
NUT
198
NUT
200
SCREW TO PLUG THE FREE CONNECTIONS
202
WASHER , Replaced By: N000125013008
202
WASHER RADIATOR TO RUBBER MOUNTING
202
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
204
WASHER
204
WASHER SUPPORT TO ALTERNATOR TO 352 150 09 73
204
WASHER EXHAUST MUFFLER TO STRAP
204
WASHER , Replaced By: N000125008443
206
SPRING WASHER , Replaced By: N000137008204
206
SPRING WASHER , Replaced By: N000137008212
206
SPRING WASHER ALTERNATOR CONNECTION W
206
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
206
SPRING WASHER HEATER PLUG CABLE HARNESS
208
NUT SPRING-LOADED PUSH ROD
208
NUT ANGLE TO FRAME
208
NUT IN CASE OF SUBSEQUENT INSTALLATION
208
NUT , Replaced By: N304032008006
208
NUT , Replaced By: N304032005005
208
NUT
212
NUT
216
SCREW TORSION BAR TO SHACKLE,5 903514
216
SCREW ,5 903514, Replaced By: N000960012353
216
SCREW CLAMPING BOLT TO BRACKET
216
SCREW POWER STEERING PUMP BRACKET
216
SCREW CLAMPING BOLT TO ALTERNATOR
222
GROUND CABLE GENERATOR TO ENGINE SUPPORT
228
SPRING WASHER ALTERNATOR CONNECTION D+
234
NUT TACHOGRAPH TO BRACKET
356
PIN BUSHING HOUSING 3-POLE,4 483482
432
CARBON BRUSH SET SET4 PIECES, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
700
STARTING MOTOR12V,3KW, MB PART NO.001 154 36 01BOSCH PART NO. 0 001 401 066 MB PART NO.002 151 84 01BOSCH PART NO. 0 001 413 001
702
EXCITER COIL
704
CARBON BRUSH SET SET4 PIECES
706
SPRING
708
NUT BRACKET TO SUPPORT AND TO END PIECE
710
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
712
PINION
714
FITTED WASHER GEAR CLUSTER SHIFT
714
SPACER WASHERTO 001 151 36 01,001 151 38 01,
716
SPACER WASHERTO 000 151 33 01,001 151 41 01,
718
NUTTO 000 151 33 01,001 151 41 01,
720
NUT
722
LOCKTO 000 151 33 01,001 151 41 01,
724
SOLENOID SWITCHTO 000 151 33 01
730
INTERMEDIATE PIECE
732
NUT , Replaced By: N304032010002
732
NUT
984
WASHER RADIATOR TO RUBBER MOUNTING
986
NUT
988
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
990
NUT SPRING-LOADED PUSH ROD
992
WASHER , Replaced By: N000125013008
994
NUT ANGLE TO FRAME
996
WASHER RADIATOR TO RUBBER MOUNTING
998
NUT
999
FILTER ELEMENT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0000922705
999
FILTER ELEMENT , Replaced By: A3524700092
999
HOSE , Replaced By: A6235280082
999
FOLLOWER , Replaced By: A0001320710
999
TERMINAL TERMINALS: B+, B-, D+, W
999
SPACER WASHER , Replaced By: A0001511452
999
CARBON BRUSH SET , Replaced By: A0001511114
999
CLAMPING BRACKET
999
SPRINGTO 004 154 75 02
999
SPRING , Replaced By: A0001541193
999
RECTIFIER , Replaced By: A0001545716
999
FAN
999
FAN , Replaced By: A0001556318
999
FAN ALTERNATOR
999
FANTO 005 154 34 02,007 154 27 02/07 02,208848/91
999
FELT TUBE ELEMENT. FILTER ELEMENT , Replaced By: A0000922705
999
FILTER ELEMENT , Replaced By: A0000922705
999
FILTER ELEMENT , Replaced By: A0000922705
999
FILTER ELEMENT , Replaced By: A0000922705
999
NUT
999
NUT
999
NUT
999
SWITCH , Replaced By: A0005456314
999
SWITCH , Replaced By: A0015450214
999
GASKET
999
BOOT , Replaced By: A0005463335
999
DIODE , Replaced By: A0015480018
999
DIODE , Replaced By: A0005485018
999
DIODE , Replaced By: A0005489818
999
DIODE , Replaced By: A0015480018
999
DIODE , Replaced By: A0015481118
999
REPAIR KIT , Replaced By: A0001500372
999
BALL BEARING PULLEY
999
ELBOW FITTING , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3141800358
999
SCREW
999
SCREW SHOCK ABSORBER TO BOTTOM BRACKET
999
STUD THROTTLE HOUSING TO EXHAUST GAS TURBOCHARGER
999
LOCK
999
CLAMP , Replaced By: N916016032201
999
HOSE , Replaced By: A4969970082
999
LOOM TIE
999
LOOM TIE , Replaced By: N916017040000
999
LOOM TIE , Replaced By: N916017025000
999
V-BELT , Replaced By: A0029973392
999
STARTING MOTOR12 V
999
REGULATOR AND CUT-OUT , Replaced By: A3455477002
999
PULLEY , Replaced By: A0011551015
999
PULLEY TWO-GROOVE,208848/91, Replaced By: A0011555815
999
BELT PULLEY F POLY-V BELT TWO-GROOVE,208848/91
999
FUEL FILTER , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO CHASSIS 035153, Replaced By: A0010921801
999
FUEL FILTER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0014774801
999
FUEL FILTER , Replaced By: A0014775701
999
SWITCH , Replaced By: A0015454914
