Mercedes
ENGINE
OM 355
355.912
15 ELECTRICAL EQUIPMENT
001 1000-W GENERATOR

Mercedes A0001541993 - АВТОЗАПЧАСТЬ

OM 355 355.912

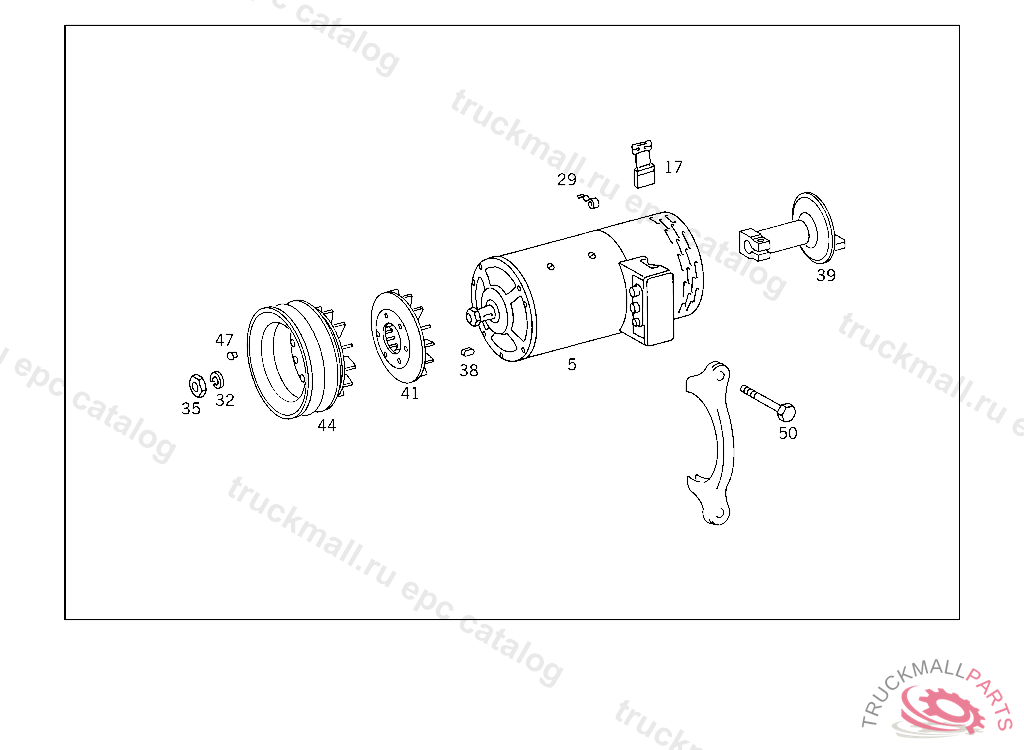

15 ELECTRICAL EQUIPMENT - 001 1000-W GENERATOR

Поз.
Артикул
Описание
5
A0021540102
ALTERNATOR , Replaced By: A0011544402
5
A0011544402
ALTERNATOR24 V 1000 W
17
A0001544214
CARBON BRUSH SET , Replaced By: A0001546614
17
A0001546614
CARBON BRUSH SET
29
A0001541993
SPRING
32
N912004018101
LOCK WASHER BELL HOUSING TO TRANSMISSION
35
N000936018000
NUT
38
N006888005006
WOODRUFF KEY FLANGE TO SHIFTING TUBE
39
A0001551709
COUPLING HALF
41
A0001551718
FAN
44
A3261500560
PULLEY (V-BELT PULLEY),FAN,TWO-GROOVE
47
N000660005005
RIVET
50
N000931012097
SCREW GUSSET PLATE TO SIDE MEMBER M 12X35
50
N000931012091
SCREW BEARING TUBE TO CLUTCH HOUSING, UP TO CHASSIS 679695
999
A3553000144
INTERMEDIATE SHAFT
999
A3551550018
FAN
999
A3551500060
PULLEY
999
A3462000152
LINE
999
A3461500460
PULLEY ALTERNATOR
999
A3269900419
SCREW
999
A3263000644
INTERMEDIATE SHAFT , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A3553000144
999
A3153010076
WASHER
999
A3151550901
BEARING BODY ALTERNATOR
999
A3151550137
CLAMP
999
A3151550108
COUPLING HALF
999
A3049930301
SPRING
999
A3043010250
BUSHING
999
A0021540002
ALTERNATOR12 V
999
A0001544514
CARBON BRUSH SET
999
A0001542114
CARBON BRUSH SET SET4 PIECES, 010,10/50 UP TO CHASSIS 066175,010,12/52 UP TO CHASSIS 067208 EXCEPT FOR 067205,010,20/60 UP TO CHASSIS 065672,010,22/62 UP TOCHASSIS 068683 012,10/50 UP TO CHASSIS 151591 EXCEPT FOR,SEE FOOTNOTE 074,012,12/52 UP TO CHASSIS 153776 EXCEPT FOR 153758,153760,153771 012,20/60 UP TO CHASSIS 148879 EXCEPT FOR 148827,148837,148844,148850,148852,012,22/62 UP TO CHASSIS 158113
