300 D TURBODIESEL JAPAN
124.133 FROM 09/89
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS

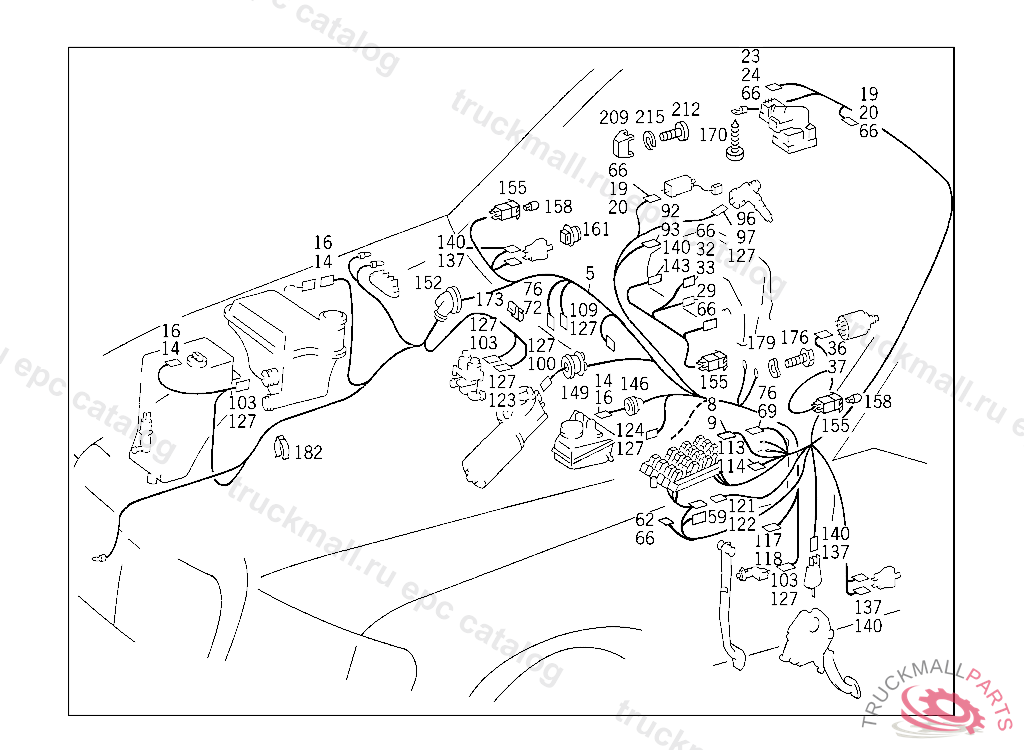

390 INBOARD CABLE HARNESS IL. 1

Mercedes N304017006016 - Винт M 6 X 16 8.8

300 D TURBODIESEL JAPAN 124.133 FROM 09/89

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 390 INBOARD CABLE HARNESS IL. 1

Поз.
Артикул
Описание
5
A1244407606
CABLE HARNESS INBOARD,WITH TEMPMATIK, FROM MODEL YEAR 94
5
A1245439333
CABLE HARNESS INBOARD,WITH TEMPMATIK, B 926099 J 008088
5
A1245438805
ELECTRIC CABLE INBOARD,WITH TEMPMATIK,F 194662
5
A1245438032
CABLE HARNESS INBOARD,WITH TEMPMATIK,F 194663
8
A0085452028
PIN BUSHING HOUSING UNIPOLAR, FROM CHASSIS:107.023 000429 107.043 006834 107.044 004104
9
A0095451428
COVERTO 011 545 10 28
14
A0125450428
PIN BUSHING HOUSING BIPOLAR
16
A0015454426
ROUND PIN BUSHING4 MM2
19
A0105451028
PIN BUSHING HOUSING BIPOLAR
20
A0105450928
COVERTO 010 545 10 28
23
A0105451128
PIN BUSHING HOUSING MIRROR ADJUSTMENT SWITCH, 6-POLE
24
A0105451228
COVERTO 010 545 11 28
29
A0125458828
PIN BUSHING HOUSING CONTROL UNIT
32
A0105450428
PIN BUSHING HOUSING INSTRUMENT CLUSTER,15-POLE
33
A0105450528
COVERTO 010 545 04 28
36
A0145456528
PIN BUSHING HOUSINGTO 014 545 64 28
37
A0145456428
COVER LIGHT SWITCH
59
A0155454828
PIN BUSHING HOUSING RELAY CLUSTER
62
A0135451528
PIN BUSHING HOUSING LAMP CONTROL
66
A0025459926
ROUND PIN BUSHING2.5 MM2
69
A0135452428
PIN BUSHING HOUSING FANFARE SWITCH
72
A0125458328
PIN BUSHING HOUSING SOLENOID VALVE,F 051968
72
A0175451928
PIN BUSHING HOUSING CONTROL UNIT OF COMFORT CONTROL
76
A0035450626
ROUND PIN BUSHING LIGHT SWITCH 2,5 MM
92
A0095452328
PIN BUSHING HOUSING STEERING COLUMN MOUNTED CABLE HARNESS, 14-POLE
93
A0095452228
COVERTO 009 545 23 28
96
A0095457328
PIN BUSHING HOUSING IGNITION/STARTING SWITCH,7-POLE
97
A0095457228
COVERTO 009 545 73 28,
100
A0115455028
PIN BUSHING HOUSING HEADLAMP,WIPER MOTOR,BLOWER SWITCH
103
A0115457128
PIN BUSHING HOUSING BIPOLAR
109
A0145458528
PIN BUSHING HOUSING 4-POLE, BLOWER MOTOR
109
A0155454928
PLUG TRIPLE
113
A0065458028
PIN BUSHING HOUSING 4-POLE
114
A0095453028
COVER
117
A0065458128
PIN BUSHING HOUSING SEAT HEATER RELAY, 8-POLE
118
A0095452028
COVERTO 006 545 81 28
121
A0095452628
PIN BUSHING HOUSING 12-POLE
122
A0095452528
COVERTO 009 545 26 28
124
A0125452428
PIN BUSHING HOUSING REFRIGERANT COMPRESSOR
127
A0035452626
ROUND PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
137
A0005464340
PIN BUSHING RADIO SET
140
A0005468340
CABLE SHOE. PIN BUSHING PRESSURE SWITCH
143
A0005460845
INSULATING SLEEVETO 000 546 43 40
146
A1169970781
GROMMET FRONT BLINKER LAMP
149
A1109971281
GROMMET ELECTRIC CABLE THRU FIRE WALL
152
A0079979781
GROMMET FIRE WALL,RIGHT
152
A0089971981
GROMMET
155
A0005453319
SOCKET
155
A0008250382
SOCKET
158
A0008250094
BULB , Replaced By: N000000001061
158
N000000001061
BULB LIGHTING OF LEFT AND RIGHT OPERATING UNITS AND BLOWER SWITCH
161
A0019881581
FASTENER BUTTON ELECTRIC CABLE TO FIRE WALL
170
N007981003203
SHEET METAL SCREW BRACKET TO CAB
173
A0019889878
CLIP WIRE CABLE TO AIR CLEANER
176
N304017006016
SCREW PUMP TO BRACKET
179
N000137006204
SPRING WASHER LICENSE PLATE TO BRACKET
182
A0005464043
BRACKET ELECTRIC CABLE TO HEATING WATER HOSE
209
A2015400769
SOCKET-TERMINAL STRIP BIPOLE, TERMINAL 58D
212
N007985004107
SCREW STEERING COLUMN MOUNTED SWITCH TO STEERING COLUMN BRACKET M4X10
215
N912004004102
LOCK WASHER T-FITTING TO BRACKET
