E 250 TURBODIESEL
124.188 200-320 FROM 10/92, 250D-300D FROM 7/93
54 ELECTRICAL EQUIPMENT AND INSTRUMENTS
001 ELECTR.PARTS TO AUTO.AIR CONDITIONER (FOR TYPES 124,129,140, SEE STANDARD VERSIO IL.5

Mercedes N912004008102 - Кольцо стопорное

E 250 TURBODIESEL 124.188 200-320 FROM 10/92, 250D-300D FROM 7/93

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 001 ELECTR.PARTS TO AUTO.AIR CONDITIONER (FOR TYPES 124,129,140, SEE STANDARD VERSIO IL.5

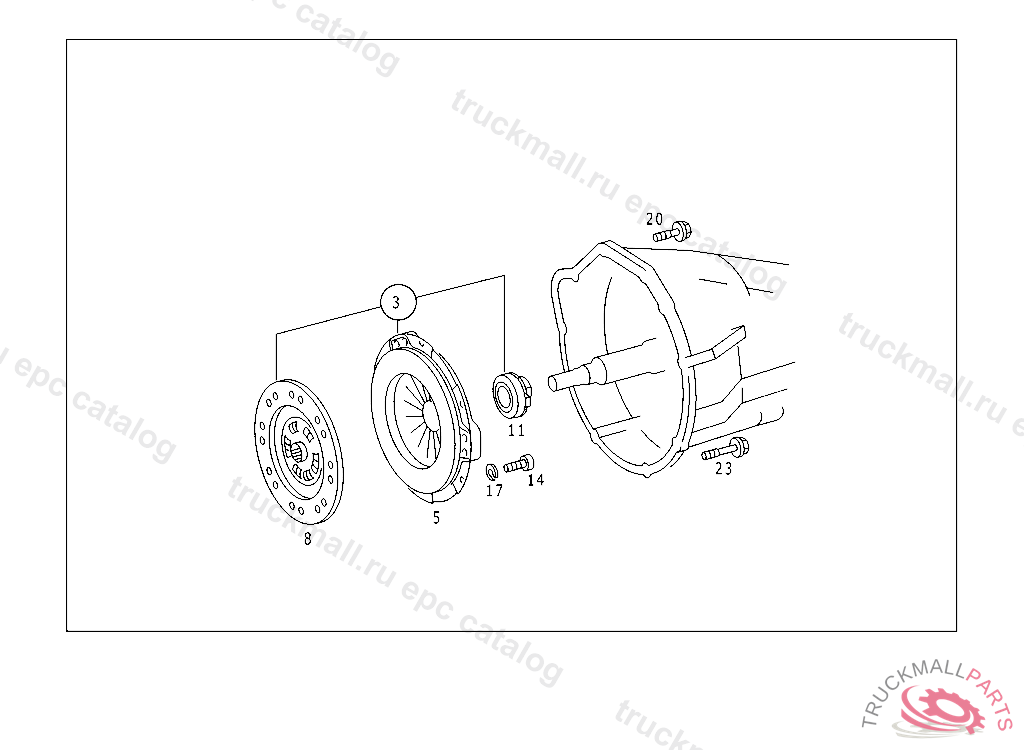

Поз.
Артикул
Описание
3
A1242500101
CLUTCH PARTS KIT, 111.960 10/50,20/60021744 111.961 10/50,20/60005796 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
A0042504904
CLUTCH PRESSURE PLATE ,126: F 655710 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
A0042506504
CLUTCH PRESSURE PLATE ,126: F 655710
8
A0082506603
CLUTCH DISC , Replaced By: A0132504803
8
A0132504803
CLUTCH DISC ,126: F 655710 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
11
A0022500515
RELEASE BEARING
11
A0012500115
RELEASE BEARING , Replaced By: A0022500515
11
A0012502515
RELEASE BEARING , A508036 F640695, Replaced By: A0012500115
14
N007984008003
SCREW BRACKET TO INTAKE MANIFOLD
17
N912004008102
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
20
N914007010071
COMBINATION BOLT , Replaced By: N914007010063
20
N914007010063
COMBINATION BOLT TRANSMISSION TO CRANKCASE
23
N304017010035
HEXAGON HEAD BOLT VIBRATION ABSORBER TO BRACKET
