Поз.
Артикул
Описание

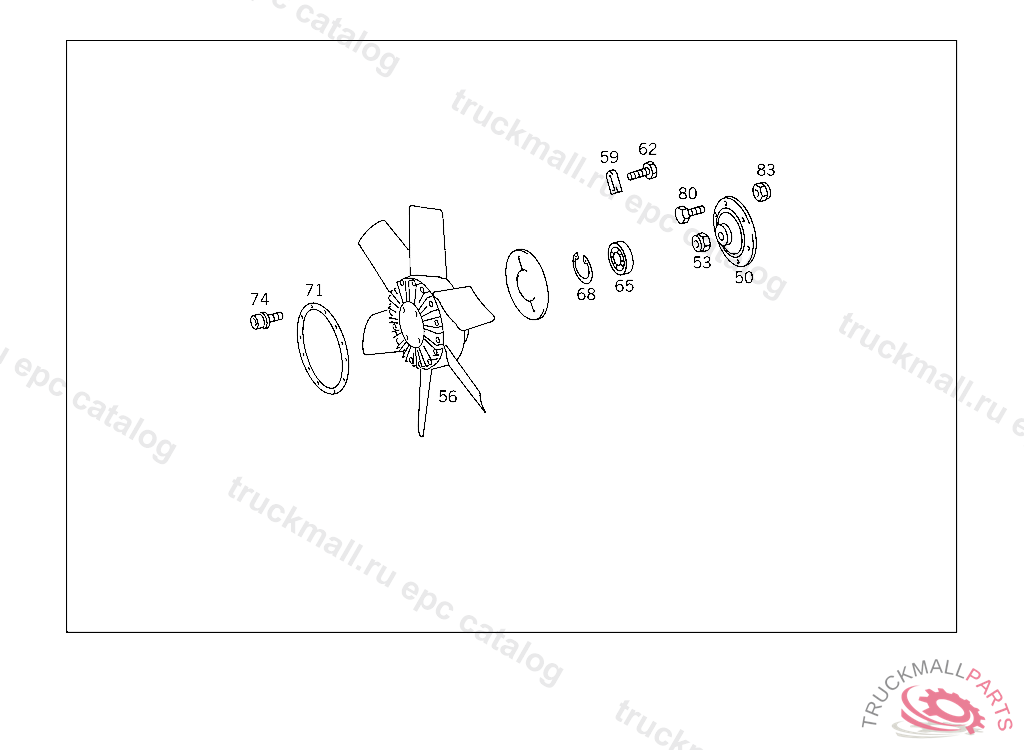

50
HUB POWER SAVER FAN
53
NUT HUB TO FAN SHAFT
56
FAN POWER SAVER FAN, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
59
GUIDE
62
SCREW
65
BALL BEARINGTO 002 205 19 06,63 06, TO BE ADAPTED DURING ASSEMBLY
68
LOCK AS REQUIRED 2.3 MM
68
LOCK AS REQUIRED 2.1 MM
68
LOCK AS REQUIRED 2.2 MM
68
LOCK AS REQUIRED 2.0 MM
71
GASKETTO 002 205 19 06,63 06
74
SCREW OIL PIPE TO SLEEVE VALVE
80
SCREW BRACKET TO EXHAUST PIPE BRACKET
80
SCREW , Replaced By: N304017008024
83
NUT , Replaced By: N913004008001
999
RECEPTACLE SILICONE GREASE
999
SWITCH ,086964
999
SEAL RING
999
V-BELT1432 MM,086964
999
FAN SHAFT
999
BEARING BODY FAN DRIVE
999
NUT TIGHTENER PULLEY
999
HUB
999
STUD SUPPORT TO BASE FRAME,076193 EXCEPT:075800, 075853, 075889
999
NUT WEAR INDICATOR
999
GROOVED BALL BEARING
999
SCREW BEARING BRACKET TO TRANSMISSION
999
SEAL RING LINE CONNECTION
999
SCREW PLUG 4/2-WAY VALVE
999
SCREW PLUG AIR DEHYDRATOR
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
SEAL RING BATTERY MASTER SWITCH
