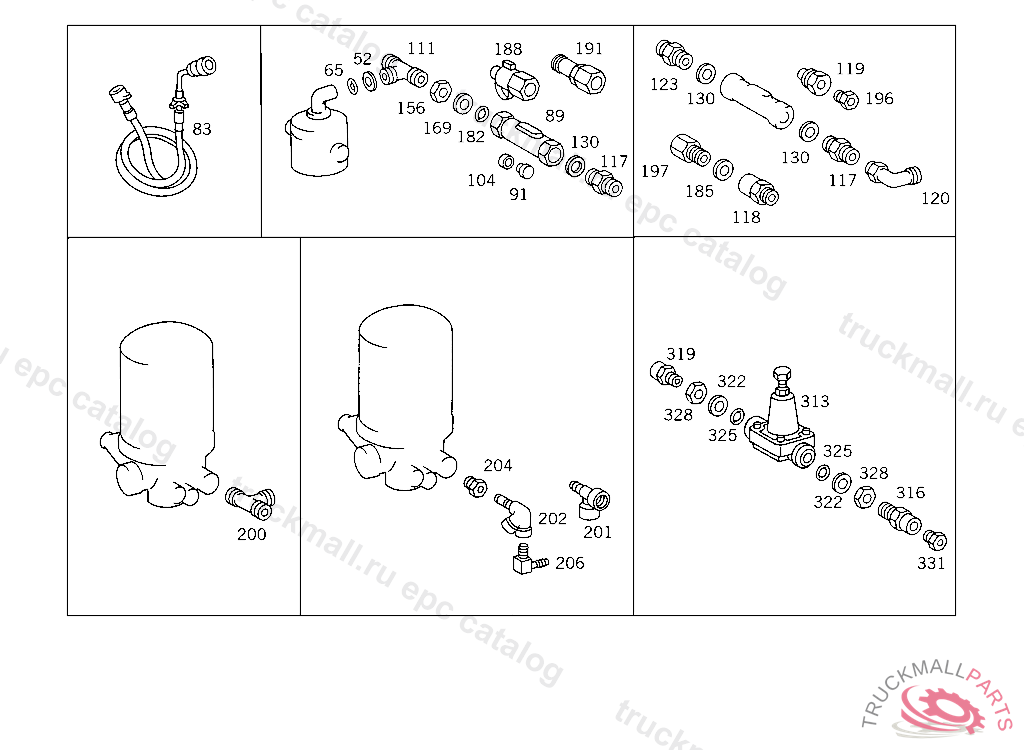

Поз.
Артикул
Описание
52
THRUST RING COMPRESSED AIR LINE TO AIR RESERVOIR AND TO T-FITTING
65
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
83
AIR PUMP HOSE12 M
89
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
91
VALVE SEAT RINGWABCO,5 433388
104
BUSHINGWABCO,5 433388
111
T-FITTING , Replaced By: N074317000100
111
T-FITTING LINE CONNECTION TO AIR COMPRESSOR
117
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
117
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236
117
FITTING SHUTTLE VALVE,CONNECTION: "20"
117
FITTING AIR RESERVOIR,CONNECTION: "52",K 093236, Replaced By: N000000006190
118
FITTING LINE CONNECTION
119
FITTING RELAY VALVE,CONNECTION "2"
120
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
123
FITTING AIR RESERVOIR,CONNECTION: "13"
130
SEAL RING LINE CONNECTION
156
NUT CHECK VALVE TO AIR RESERVOIR
169
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
182
O-RING CHECK VALVE TO AIR RESERVOIR
185
SEAL RING LINE CONNECTION
188
TEST CONNECTION
191
TEST CONNECTION
196
SCREW. UNION SCREW LINE CONNECTION
196
SCREW. UNION SCREW LINE CONNECTION
196
SCREW. UNION SCREW , Replaced By: A0009973734
197
FITTING DOOR I ENTRANCE
200
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
200
T-FITTING AIR DEHYDRATOR,CONNECTION: "21"
201
T-FITTING BRAKE POWER REGULATOR,CONNECTION: "10", Replaced By: A0049971689, +001A0009974834
202
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
204
SCREW. UNION SCREW LINE CONNECTION
206
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
313
VALVE (OVERFLOW VALVE),5 548795
316
FITTING LINE CONNECTION
319
FITTING LINE CONNECTION
322
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
325
O-RING CHECK VALVE TO AIR RESERVOIR
328
NUT CHECK VALVE TO AIR RESERVOIR
331
SCREW. UNION SCREW LINE CONNECTION
999
REPAIR KIT CHECK TO 003 429 07 44
999
BRACKET TEST CONNECTION,058948
999
BRACKET REFILLING CONNECTION
