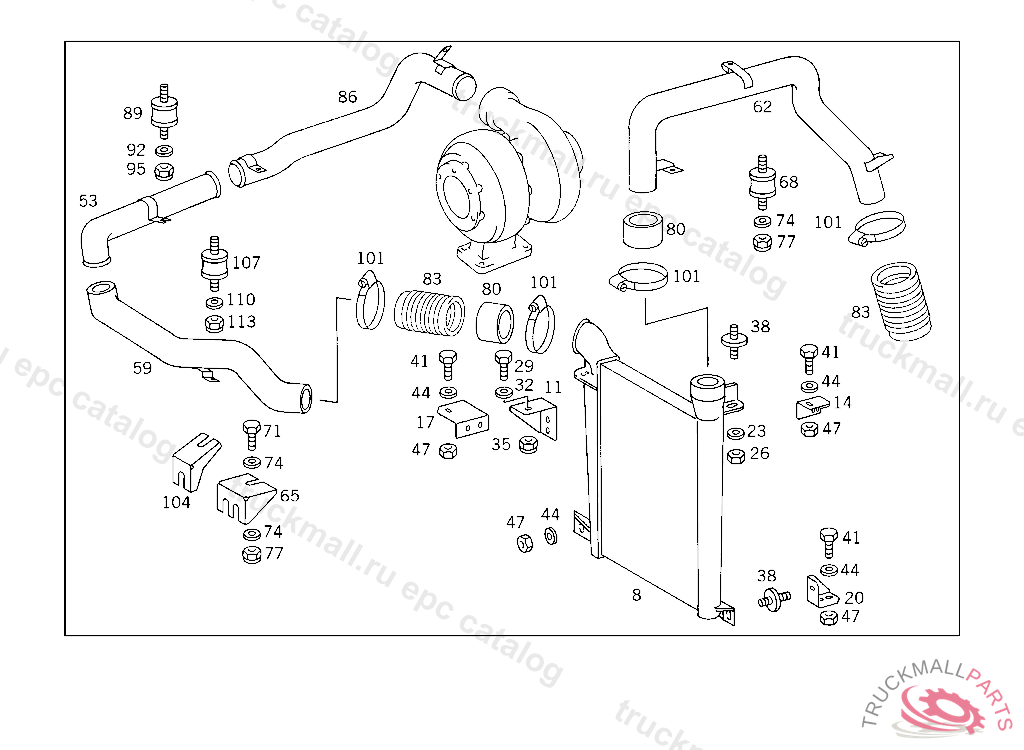

Поз.
Артикул
Описание
8
RADIATOR , Replaced By: A0005000303
8
RADIATOR CHARGE AIR INTERCOOLER
11
BRACKET ON SIDE PANEL,TOP
14
BRACKET AT LEFT SIDE MEMBER
17
BRACKET CHARGE AIR INTERCOOLER
20
BRACKET CHARGE AIR INTERCOOLER
23
WASHER BEARING BRACKET TO SIDE MEMBER
26
NUT BRACKET TO RETARDER
29
SCREW END PIECE TO EXHAUST PIPE M 10X25
32
WASHER RADIATOR TO RUBBER MOUNTING
32
WASHER , Replaced By: N000125010532
35
NUT , Replaced By: N910113010000
35
NUT STRAP TO BRACKET
38
BUFFER RADIATOR TO SUPPORT
44
WASHER BEARING BRACKET TO SIDE MEMBER
47
NUT BRACKET TO RETARDER
53
PIPE ELBOW FROM PIPE ELBOW TO CONNECTOR
53
PIPE ELBOW , Replaced By: A3575000678
53
PIPE ELBOW , Replaced By: A3575000478
59
PIPE ELBOW , Replaced By: A3575000578
59
PIPE ELBOW FROM HOSE CONNECTION TO CHARGE AIR INTERCOOLER
62
PIPE ELBOW FROM CHARGING AIR INTERCOOLER TO ENGINE
62
PIPE ELBOW , Replaced By: A3575000778
65
CONSOLE PIPE ELBOW TO SUBSTRUCTURE
68
RUBBER BUFFER COVERING TO FRAME
71
SCREW PIPE CLAMP
71
SCREW , Replaced By: N304017008021
74
WASHER , Replaced By: N000125008443
74
WASHER EXHAUST MUFFLER TO STRAP
77
NUT , Replaced By: N913004008001
80
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A0020946982
80
HOSE AIR INTAKE PIPE TO ENGINE
83
CHARGE AIR HOSE. HOSE (ACCORDION TUBE) FROM AIR INTAKE PIPE TO INTAKE FITTING
83
HOSE , Replaced By: A0020945482
86
PIPE ELBOW FROM MOLDED HOSE TO RUBBER HOSE
89
RUBBER BUFFER COVERING TO FRAME
92
WASHER , Replaced By: N000125008443
92
WASHER EXHAUST MUFFLER TO STRAP
95
NUT , Replaced By: N913004008001
101
CLAMP , Replaced By: A0059970690
101
CLAMP FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE 100-120X13 MM
101
CLAMP HOSE TO AIR CLEANER AND TO INTAKE PIPE 100-120X13 MM
104
CONSOLE PIPE ELBOW TO SUBSTRUCTURE
107
RUBBER BUFFER COVERING TO FRAME
110
WASHER , Replaced By: N000125008443
110
WASHER EXHAUST MUFFLER TO STRAP
113
NUT , Replaced By: N913004008001
