Поз.
Артикул
Описание

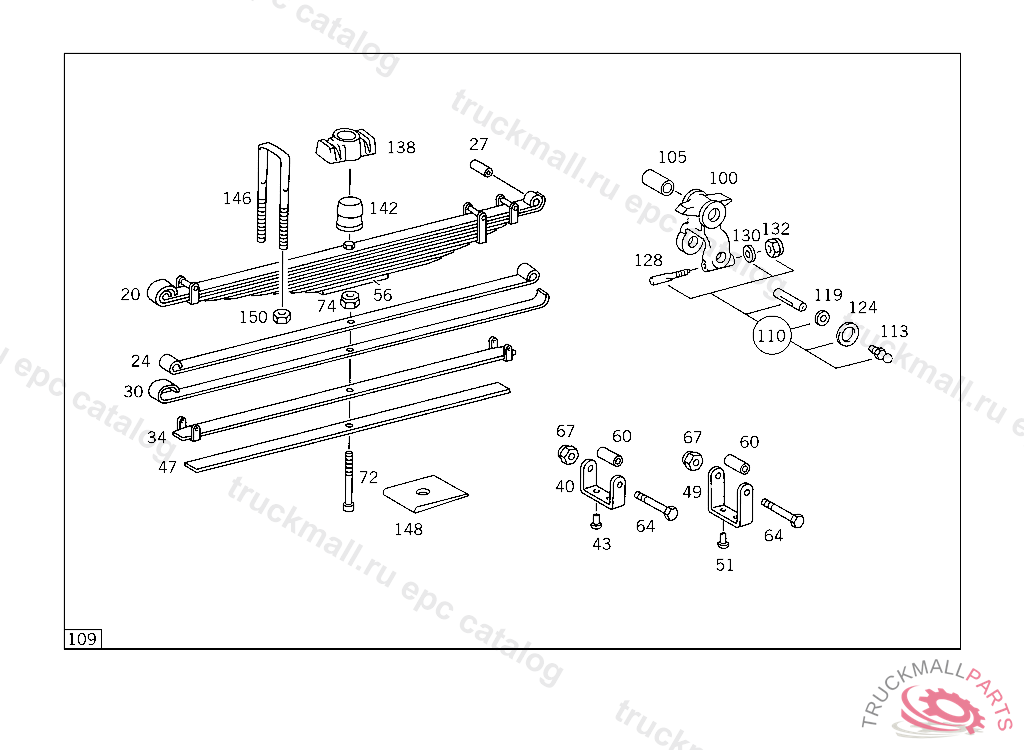

20
SPRING LEAF , Replaced By: A3523201594
20
FRONT SPRING 6-LEAF, 624668
20
FRONT SPRING , IN THE CASE OF INDIVIDUAL EXCHANGE,DELIVER ADDITIONALLY:1 358 322 02 84,1 X 004626 012240, Replaced By: A3583200902
20
FRONT SPRING , 624667 ONLY REPLACEABLE BY PAIRS, Replaced By: A3583200902
24
SPRING LEAFNO.1, 624668
24
SPRING LEAFNO.1, 624667
27
BUSHING
27
BUSHING
30
SPRING LEAFNO.2, 624668
30
SPRING LEAFNO.2, 624667
34
SPRING LEAF WITH SPRING CLAMP NO.3
34
SPRING LEAF , Replaced By: A3583202294
40
SPRING CLAMP , TO BE ADAPTED DURING ASSEMBLY
40
SPRING CLAMP ,4 811925, Replaced By: A3123240633
40
SPRING CLAMP AT LEAF N0.3
43
RIVET SPRING CLAMP TO SPRING LEAF
43
RIVET , 654576
47
SPRING LEAFNO. 4
49
SPRING CLAMP , TO BE ADAPTED DURING ASSEMBLY
49
SPRING CLAMP ,4 811925, Replaced By: A3123240633
49
SPRING CLAMP , Replaced By: A3123213333
49
SPRING CLAMP AT SPRING LEAF NO.6
51
RIVET SPRING CLAMP TO SPRING LEAF
51
RIVET , 654576
56
SHIMTO 352 320 21 02,10 MM, 624668
56
SHIMTO 358 320 09 02,42 MM, 624668
60
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
60
SPACER TUBE , Replaced By: A0003213253
64
SCREW 3/2-WAY VALVE TO BRACKET
64
SCREW , Replaced By: N304014008009
67
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
67
NUT , Replaced By: N913004008001
72
SPRING BOLTM 12X125
72
SPRING BOLTM 12X155
72
SPRING BOLTM12X160, TO 682 320 73 02, 74 02
74
NUT SPRING BOLT
74
NUT STRAP TO SUPPORT,5 149419
100
SHACKLE FRONT SPRING REAR BRACKET
100
SHACKLE FRONT SPRING SUSPENSION,REAR
105
BUSHING
105
BUSHING
109
SHACKLE PIN , Replaced By: A3855860332
109
SHACKLE PIN , Replaced By: A3855860332
110
SHACKLE PIN PARTS KIT
110
REPAIR KIT , Replaced By: A3853200165
110
REPAIR KIT , Replaced By: A3855860332
113
GREASE NIPPLE
113
GREASE NIPPLE
113
GREASE NIPPLE PROTECTIVE TUBE
119
WASHER AS REQUIRED 4.30 MM
119
WASHER AS REQUIRED 4.20 MM
119
WASHER , Replaced By: A3523230476
119
WASHER AS REQUIRED 4.00 MM
119
WASHER , Replaced By: A3523230376
119
WASHER , Replaced By: A3523230376
119
WASHER , Replaced By: A3523230376
124
SEAL RING SPRING SUSPENSION
128
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
130
WASHER RADIATOR TO RUBBER MOUNTING
130
WASHER , Replaced By: N000125010532
132
NUT STRAP TO BRACKET
132
NUT , Replaced By: N910113010000
138
PLATE FRONT SPRINGS TO FRONT AXLE
138
PLATE
142
HELPER SPRING ,6951998 0000014 168249, Replaced By: A3183240008, +001A3143310727, +001A3143310827
142
RUBBER BUFFER SPRING STOP TO FRAME BOTTOM SIDE, 624667
146
U-BOLT FRONT SPRINGS TO FRONT AXLE 220 MM
146
U-BOLT FRONT SPRINGS TO FRONT AXLE M18X1,5X210 MM
146
U-BOLT FRONT SPRINGS TO FRONT AXLE M18X1,5X230 MMTO 695 320 02 02
148
SHIM FRONT AXLE,RIGHT
148
SHIM FRONT AXLE,RIGHT
150
NUT , Replaced By: N000934018001
999
SEAL RING ,478039
999
WASHER ,478039
999
SEAL RING ,478039
999
BUSHING , Replaced By: A3443267250
999
RUBBER MOUNTING ,478039
999
JOINT BEARING
999
PIN ,478039
999
LOCK
999
SPRING LEAFNO.3, 624667
999
SPRING LEAFNO.4, 624667
999
SPRING LEAF
999
SPRING LEAFNO.5, UP TO IDENT NO.: 691430 EXCEPT FOR 691039,691051,691063,691081,691084,691093,691126,691129,691139,691146,691152,691275,691360, 691363,691370,691377,691400,691408,691411,691417,691420
999
SPRING LEAF
999
SPRING LEAFNO. 9
999
SPRING LEAFNO. 5
999
SPRING LEAFNO. 7
999
SPACER TUBE BEARING BRACKET TO STEERING COLUMN BRACKET
999
BRACKET STABILIZER TO FRONT AXLE
999
BRACKET LEFT SHOCK ABSORBER
999
SHIM BRACKET TO SPRING SADDLE
999
COTTER PIN SHOCK ABSORBER TO CROSS MEMBER, 691430
999
SCREW SUPPORT TO CROSS MEMBER M 10X28
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT DRAG LINK TO STEERING ARM AND PITMAN ARM
999
SCREW , Replaced By: N000961012208
999
SCREW BEARING TO TRANSFER CASE M 14X140
999
SCREW BRACKET TO CONSOLE
999
SCREW , Replaced By: N308676014020
999
SCREWM 16X16X24X42
999
GREASE NIPPLE , Replaced By: N071412008102
999
GREASE NIPPLE
999
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
999
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
999
NUT SUPPORT TO SIDE MEMBER
999
NUT BRACKET TO SIDE MEMBER
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
NUT , Replaced By: N910113014001
