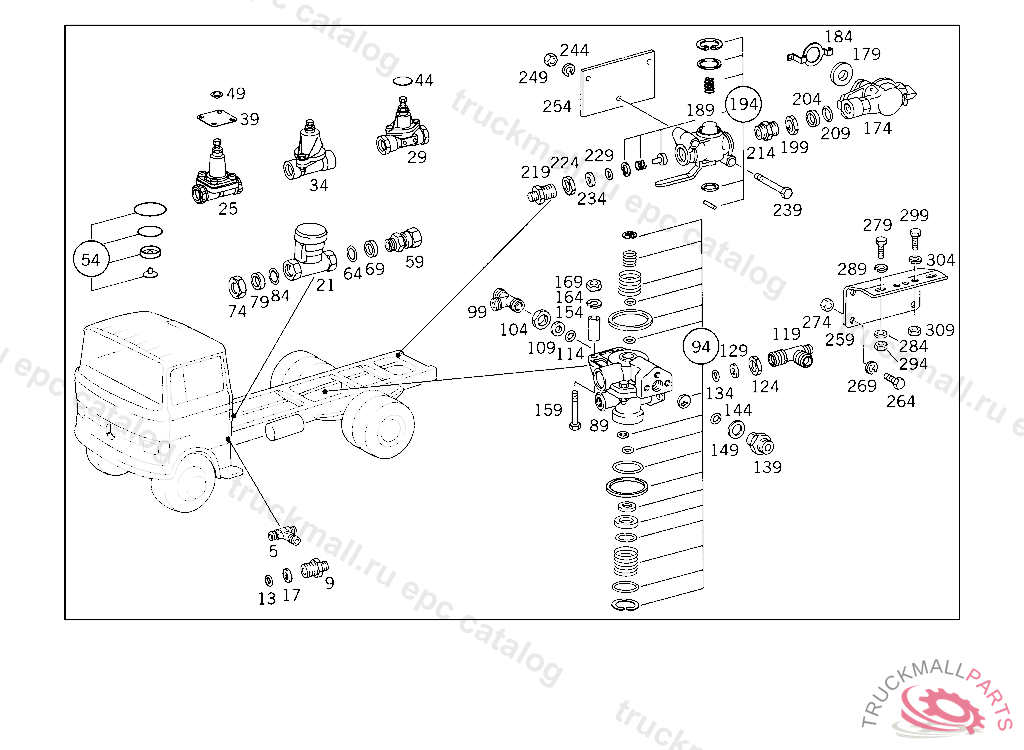

Поз.
Артикул
Описание
5
T-FITTING TWO-WAY VALVE,CONNECTION "1.2"
9
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
9
FITTING , Replaced By: A0009970171
9
FITTING , Replaced By: A0019970172
13
O-RING CHECK VALVE TO AIR RESERVOIR
17
THRUST RING CHECK VALVE TO AIR RESERVOIR
17
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
21
VALVE (OVERFLOW VALVE) BOSCH
25
VALVE TRAILER BRAKE
29
VALVE (OVERFLOW VALVE) GRAU
34
VALVE (OVERFLOW VALVE) KNORR
39
DIAPHRAGM
44
DIAPHRAGM
49
VALVE DISCTO 000 429 48 30
54
REPAIR KITBOSCH
59
FITTING SHUTTLE VALVE,CONNECTION: "20"
59
FITTING , Replaced By: A0019972372
64
O-RING CHECK VALVE TO AIR RESERVOIR
69
THRUST RING CHECK VALVE TO AIR RESERVOIR
69
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
74
NUT CHECK VALVE TO AIR RESERVOIR
79
THRUST RING CHECK VALVE TO AIR RESERVOIR
79
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
84
O-RING CHECK VALVE TO AIR RESERVOIR
89
BRAKE VALVE CONTROL VALVE,549429
94
REPAIR KITWABCO
94
REPAIR KITTO 001 431 56 05
99
T-FITTING COMPRESSED AIR VALVE CONNECTION
104
NUT CHECK VALVE TO AIR RESERVOIR
109
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
109
THRUST RING CHECK VALVE TO AIR RESERVOIR
114
O-RING CHECK VALVE TO AIR RESERVOIR
119
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
124
NUT CHECK VALVE TO AIR RESERVOIR
129
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
129
THRUST RING CHECK VALVE TO AIR RESERVOIR
134
O-RING CHECK VALVE TO AIR RESERVOIR
139
FITTING , Replaced By: A0019970172
144
O-RING CHECK VALVE TO AIR RESERVOIR
149
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
149
THRUST RING CHECK VALVE TO AIR RESERVOIR
154
SPACER TUBE BRACKET TO REAR AXLE HOUSING
154
SPACER TUBE BRACKET TO REAR AXLE HOUSING
159
SCREW SHIFTING ROD TO SHIFT LEVER
159
SCREW SHIFTING ROD TO SHIFT LEVER
159
SCREW , Replaced By: N000933010192
164
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
164
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
169
NUT BRACKET TO SUPPORT AND TO END PIECE
169
NUT BRACKET TO SUPPORT AND TO END PIECE
174
BRAKE LINE COUPLING
179
SEAL RING"WABCO"
184
COVERTO 0004292830
189
SHUT-OFF COCK
194
REPAIR KITTO 000 429 14 31,5 116581
199
NUT CHECK VALVE TO AIR RESERVOIR
204
THRUST RING CHECK VALVE TO AIR RESERVOIR
204
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
209
O-RING CHECK VALVE TO AIR RESERVOIR
214
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
219
FITTING SHUTTLE VALVE,CONNECTION: "20"
219
FITTING , Replaced By: A0019972372
224
NUT CHECK VALVE TO AIR RESERVOIR
229
O-RING CHECK VALVE TO AIR RESERVOIR
234
THRUST RING CHECK VALVE TO AIR RESERVOIR
234
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
239
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
239
SCREW , Replaced By: N304014008001
239
SCREW VALVE TO BRACKET
239
SCREW VALVE TO BRACKET, Replaced By: N304014008002
244
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
249
NUT
254
BRACKET , 674068-875476
259
BRACKET AT BRAKE LINE COUPLING
264
SCREW CLAMP TO BRACKET AND TO PIPE
264
SCREW PIPE CLAMP
264
SCREW , Replaced By: N304017008021
264
SCREW BRACKET TO BEARING BRACKET
264
SCREW , Replaced By: N304017008045
264
SCREW BRACKET TO FRAME SIDE MEMBER M 8X75
269
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
274
NUT
279
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
279
SCREW , Replaced By: N308676012012
279
SCREW CONSOLE TO SIDE MEMBER
284
WASHER
289
LOCK WASHER FITTING TO BRACKET
294
NUT STRAP TO SUPPORT
299
SCREW BRACKET TO SIDE MEMBER
304
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
309
NUT BRACKET TO SUPPORT AND TO END PIECE
999
DIAPHRAGMTO 001 429 48 44
999
SHUT-OFF COCK
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SEAL RINGTO 000 429 16 31,4 940458
999
HANDLETO 000 429 16 31,4 940458
999
REPAIR KIT , Replaced By: A0014306160
999
SEAL RINGTO 000 429 16 31,4 940458
