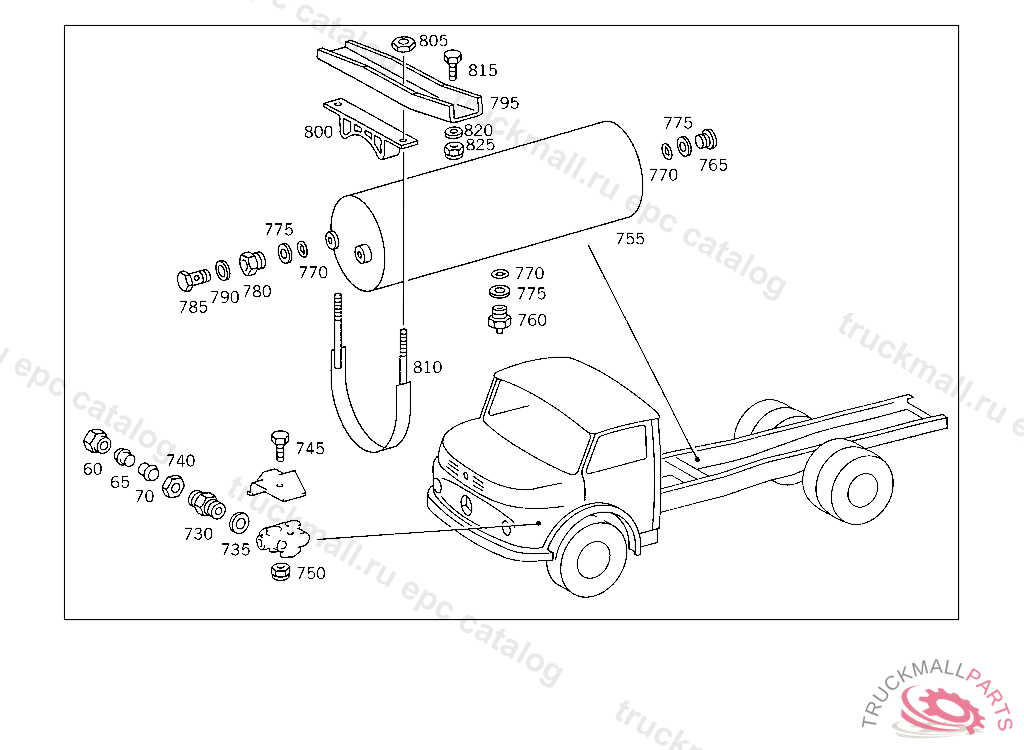

Поз.
Артикул
Описание
60
UNION NUT LINE CONNECTION
65
GLAND LINE CONNECTION
70
SLEEVE LINE CONNECTION
730
FITTING AT DISTRIBUTOR,4 481289
730
FITTING , Replaced By: A0029906071
730
TS DOUBLE FITTING SOLENOID VALVE
735
SEAL RING LINE CONNECTION
740
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
745
SCREW DISTRIBUTOR TO BRACKET,4 481288
750
NUT , Replaced By: N913004006001
750
NUT PUMP TO BRACKET
755
RESERVOIR , Replaced By: A0034321101
755
RESERVOIR COMPRESSED AIR 20 L., Replaced By: A0064329801
760
VALVE DRAIN, Replaced By: A0004322407
760
VALVE. DRAIN VALVE DRAIN
760
VALVE DRAIN, Replaced By: A0004322107
760
VALVE DRAIN, Replaced By: A0004322107
765
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
765
SCREW PLUG , Replaced By: N000908022011
770
O-RING CHECK VALVE TO AIR RESERVOIR
775
THRUST RING CHECK VALVE TO AIR RESERVOIR
775
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
780
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
785
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
790
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
795
BRACKET PNEUMATIC SUSPENSION RESERVOIR
800
BASE AIR RESERVOIR
805
NUT BRACKET TO SUPPORT AND TO END PIECE
810
STRAP AIR RESERVOIR,K 125986
810
STRAP , Replaced By: A3354300340
815
SCREW REAR EXHAUST PIPE TO MUFFLER
820
WASHER BRACKET TO SIDE MEMBER
825
NUT STRAP TO BRACKET
825
NUT , Replaced By: N910113010000
999
LINE , Replaced By: A0005516256
999
VALVE
999
LINE , Replaced By: A0005516456
999
ELBOW FITTING PRESSURE REGULATOR,CONNECTION "1"
999
VALVE
999
VALVE , Replaced By: A0014294144
999
VALVE , Replaced By: A0004320807
999
REPAIR KITTO 000 429 63 44,000 429 59 44
999
SLEEVE , Replaced By: A0007630553
999
PLASTIC PIPE RISING PIPE 4X6 MM
999
VALVE , Replaced By: A0014296144
999
VALVE , Replaced By: A0024297244
999
VALVE , Replaced By: A0024297244
999
SPRING
999
SEAL CONE
999
T-FITTING AIR RESERVOIR,CONNECTION: "13"
999
FITTING AIR RESERVOIR,CONNECTIONS: "10,20"
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING , Replaced By: A0029905971
999
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
999
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
999
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
999
BRACKET LINE MOUNTING
999
RESERVOIR , Replaced By: A3454308205
999
CONSOLE , Replaced By: A3224320215, +002N913004012000
999
RESERVOIR ,5 936755, Replaced By: A0034322701, +002A0009970934
999
PLATE CONSOLE TO SIDE MEMBER
999
BASE AIR RESERVOIR TO CONSOLE
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET AIR DEHYDRATOR
999
BRACKET AIR RESERVOIR
999
BASE STRAP
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP , Replaced By: A6739950001
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
SCREW PROTECTION PLATE TO BRACKET
999
WASHER
999
SCREW , Replaced By: N304017008021
999
SCREW STRAP TO SUPPORT,5 433389
999
NUT BALL PIVOT TO LEVER
999
GLAND , Replaced By: A0019901667
999
FITTING AT LEFT SIDE MEMBER,4 347260
999
FITTING , Replaced By: A0019909871
999
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
999
NUT CHECK VALVE TO AIR RESERVOIR
999
FITTING , Replaced By: A0019972372
999
SCREW PIPE CLAMP
999
RING , Replaced By: A0005830296
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
UNION NUT
999
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
SLEEVE LEAK LINE
