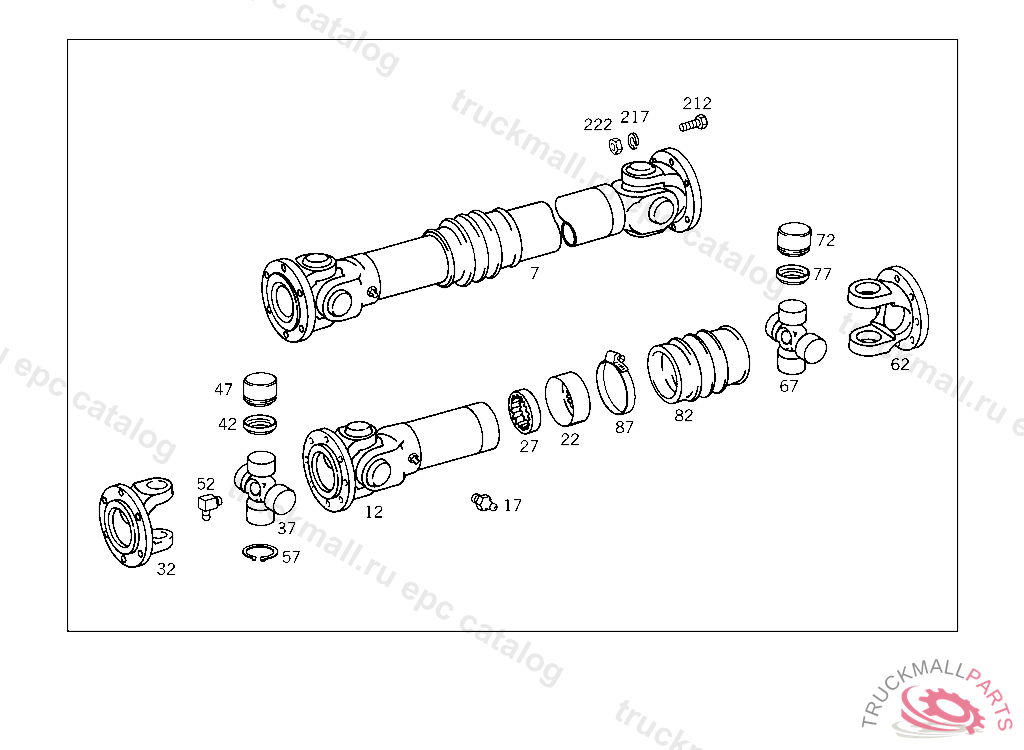

Поз.
Артикул
Описание
7
12
UNIVERSAL JOINT YOKE REAR PROPELLER SHAFT
17
GREASE NIPPLE , Replaced By: N071412008102
22
SEAL HOLDER , PROPELLER SHAFT WITH BOOT
27
SEAL RING , PROPELLER SHAFT WITH BOOT
32
DRIVE FLANGE
37
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
37
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
42
EXPANSION PLUG
47
BEARING BUSHING
52
GREASE NIPPLE
52
GREASE NIPPLE
57
SNAP RING2.500 MM
57
SNAP RING2.500 MM
62
DRIVE FLANGE
67
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
67
UNIVERSAL JOINT CROSS FROM TRANSMISSION TO INTERMEDIATE BEARING, IF REQUIRED,ORDER LOCK RINGS ADDITIONALLY
72
BEARING BUSHING
77
EXPANSION PLUG
82
BOOT
87
LOOM TIE. CLAMP
212
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
217
LOCK WASHER , Replaced By: N912004010102
222
NUT , Replaced By: N910113010003
999
SNAP RING2.600 MM
999
SNAP RING2.650 MM
999
SNAP RING2.700 MM
999
SNAP RING2.550 MM
999
SNAP RING2.750 MM
999
999
WIRE RING , WITH BOOT
999
999
SNAP RING2.525 MM
999
SNAP RING2.550 MM
999
SNAP RING2.575 MM
999
SNAP RING2.600 MM
999
SNAP RING2.625 MM
999
SNAP RING2.650 MM
999
SNAP RING2.675 MM
999
SNAP RING2.700 MM
999
SNAP RING2.725 MM
999
SNAP RING2.750 MM
