Поз.
Артикул
Описание

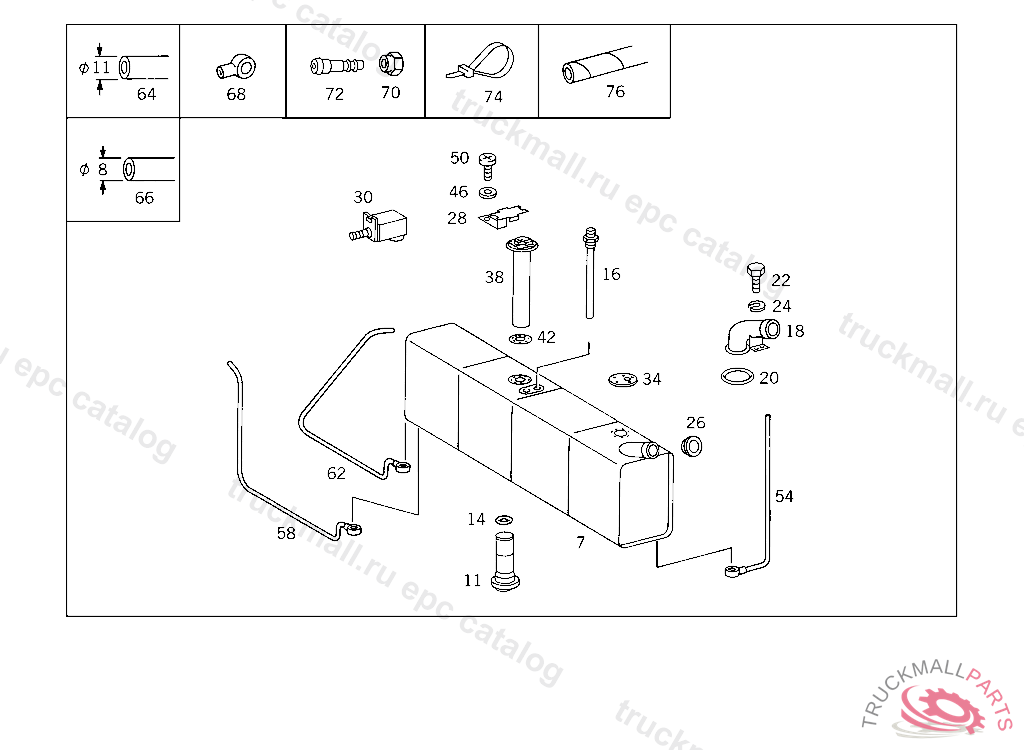

7
FUEL TANK , Replaced By: A3444708401
7
FUEL TANK LESS SENDER UNIT 175 L
7
FUEL TANK LESS SENDER UNIT 400 L
7
FUEL TANK LESS SENDER UNIT 300 L
7
FUEL TANK LESS SENDER UNIT 300 L
7
FUEL TANK LESS SENDER UNIT 300 L,081232
7
FUEL TANK LESS SENDER UNIT 600 L
7
FUEL TANK LESS SENDER UNIT 600 L
7
FUEL TANK LESS SENDER UNIT 600 L
7
FUEL TANK LESS SENDER UNIT 350 L
7
FUEL TANK LESS SENDER UNIT
11
FUEL STRAINER
14
SEAL RING FUEL STRAINER SCREEN TO FUEL TANK
14
SEAL RING FUEL STRAINER SCREEN
16
RISING PIPE
18
FILLER NECK
18
FILLER NECK
20
SEAL RING
22
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
24
LOCK WASHER RESISTOR
26
FILLER CAP
26
FILLER CAP"TAMPAS CLICK"
28
COVERING (VENT VALVE),C 072736
30
VALVE
30
VALVE (VENT VALVE)
34
FLANGE ,C 072736
38
SENDER UNIT FUEL GAUGE
38
SENDER UNIT FUEL GAUGE
38
SENDER UNIT FUEL GAUGE
38
SENDER UNIT FUEL GAUGE,074603
38
SENDER UNIT
38
SENDER UNIT FUEL GAUGE,074603
38
SENDER UNIT
42
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
42
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK
46
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
46
SEAL RING SENDER UNIT AND COVER TO FUEL TANK
50
SCREW SIDE MARKER LAMP
50
SCREW SIDE MARKER LAMP
54
LINE , Replaced By: A3444703164
54
LINE FROM FUEL TANK TO RUBBER HOSE
54
LINE FEED LINE,081232
58
LINE , Replaced By: A3444703464
58
LINE FROM RUBBER HOSE TO FUEL TANK
58
LINE RETURN LINE,081232
62
LINE , Replaced By: A3444703664
62
LINE FROM RUBBER HOSE TO FUEL TANK
64
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
66
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
66
PLASTIC PIPE8X6 MM, ORDER BY THE METER
68
BANJO UNION
70
NUT. UNION NUT RETURN
72
FITTING RETURN
74
LOOM TIE , Replaced By: A3459977390
74
LOOM TIE ELECTRIC CABLE MOUNTING
76
INSULATING HOSE , ORDER BY THE METER
76
INSULATING HOSE CHECK VALVE,CONNECTION "2"
999
999
FUEL TANK
999
RISING PIPE
999
999
RISING PIPETO 364 470 75 02,87 02
999
999
999
999
999
CLAMP LINE MOUNTING
