Поз.
Артикул
Описание
54

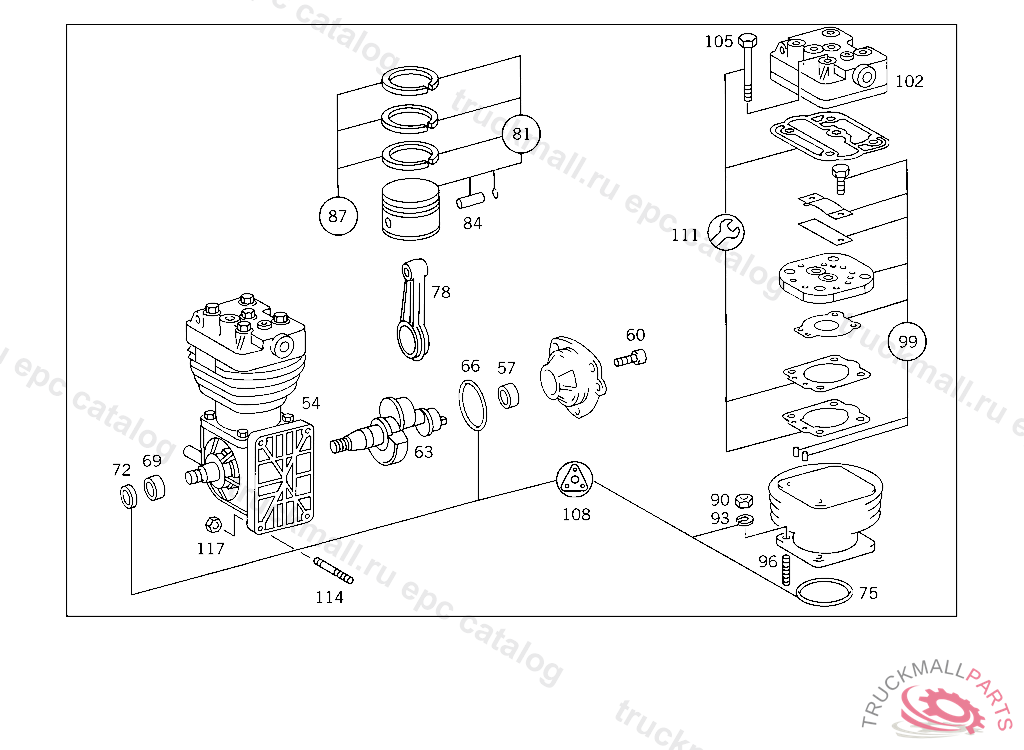

COMPRESSORKNORR 300CCM
57
BEARING CAPTO 376 131 74 01
57
BUSHING , Replaced By: A0001300632
60
SCREW STEERING SHAFT BEARING TO CAB
63
CRANKSHAFT
66
SEAL RING BEARING CAP TO HOUSING
69
BUSHING FRONT BEARING
72
SEAL RING
75
SEAL RING CRANKCASE,AIR COMPRESSOR
78
CONNECTING ROD LESS BEARING SHELLS TO 376 131 74 01
81
PISTONTO 376 131 74 01
84
PISTON PIN
87
PISTON RING PARTS KIT
90
NUT
93
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
96
STUD SHIFT CASE M 8X18,475057
99
VALVE PARTS KIT KNORR
102
CYLINDER HEADKNORR
105
SCREW STRAP TO BRACKET
108
GASKET KIT AIR COMPRESSOR
111
REPAIR KIT (GASKET KIT),AIR COMPRESSOR
114
STUD BOLT BRACKET TO CROSS MEMBER
117
HEXAGON NUT. NUT , Replaced By: N913023008002
117
NUT ENGINE MOUNTING M8
999
LINE COOLING WATER FEED TOWARD OIL COOLER, NOT USED
999
LINE COOLING WATER INLET
999
SCREENING PLATE
999
BRACKET AT CYLINDER SIDE COVER
999
SEAL RINGTO 376 466 78 01,001 460 33 80/34 80
999
NEEDLE BEARINGTO 376 466 78 01,001 460 33 80/34 80
999
SEAL RINGTO 460 466 01 01,210 466 09 01
999
SEAL RINGTO 376 466 78 01,001 460 33 80/34 80
999
SPRINGTO 601 466 01 01
999
SCREWTO 376 466 78 01,001 460 33 80/34 80
999
DOWEL PINTO 376 466 78 01,001 460 33 80/34 80
999
HYDRAULIC PUMP (GASKET KIT),POWER STEERING PUMP TO 001 460 33 80,34 80
999
SNAP RINGTO 376 466 78 01,001 466 33 80/34 80
999
KEY
999
BALL BEARINGTO 376 466 78 01,001 460 33 80/34 80
999
PISTONTO 001 460 36 80
999
ROTOR SETTO 376 466 78 01,001 460 33 80/34 80
999
DRIVE SHAFTTO 376 466 78 01,001 460 33 80/34 80
999
SEAL RINGTO 376 466 78 01,001 460 33 80/34 80
999
SPACER RINGTO 210 466 09 01,601 466 01 01
999
PLATETO 736 466 78 01,001 460 33 80/34 80
999
PLATETO 376 466 78 01,001 460 33 80/34 80
999
HOUSINGTO 376 466 78 01,001 460 33 80/34 80
