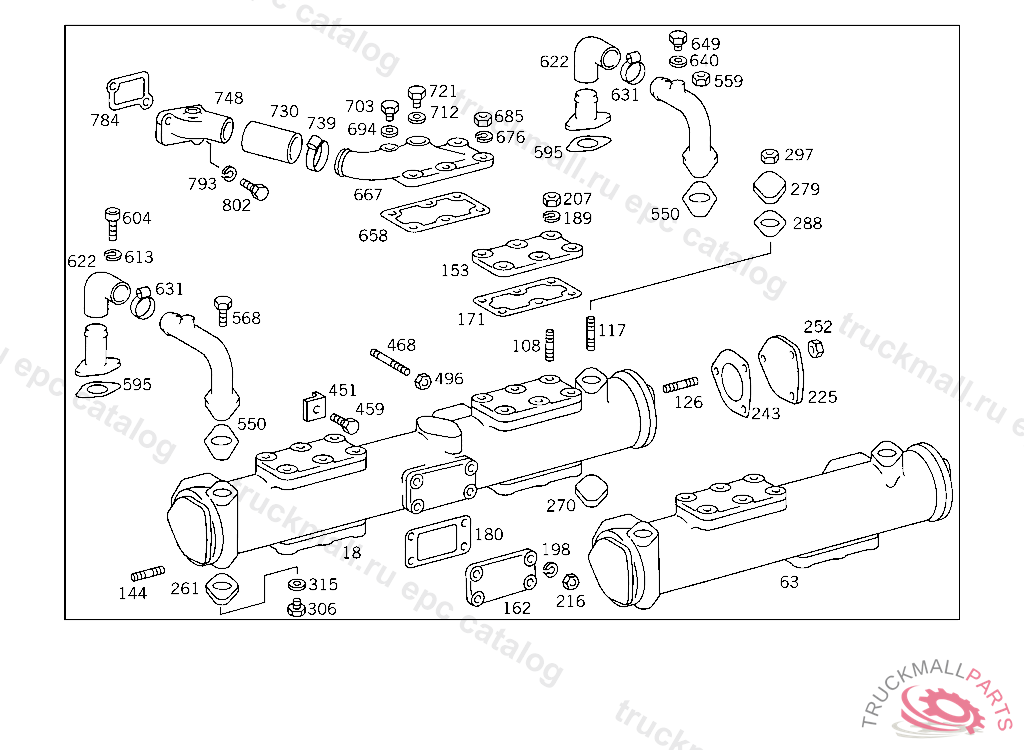

Поз.
Артикул
Описание
18
EXHAUST MANIFOLD
18
EXHAUST MANIFOLD
63
EXHAUST MANIFOLD
108
STUD BOLT
117
STUD BOLT OIL PAN TO CYLINDER CRANKCASE M 8X20
126
STUD BOLT P.T.O. TO TRANSMISSION
144
STUD BOLTM 10X30
153
COVER
162
COVER EXHAUST PIPE TO EXHAUST MANIFOLD
171
GASKET COVER TO EXHAUST MANIFOLD
180
GASKET COVER TO EXHAUST MANIFOLD
189
LOCK WASHER RAIL TO BATTERY SUPPORT
198
LOCK WASHER , Replaced By: N912004010102
207
NUT LEVER TO SHIFTING SHAFT
216
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
225
FLANGE EXHAUST OUTLET
243
GASKET FLANGE TO EXHAUST MANIFOLD
252
NUT TAIL PIPE TO BRACKET
261
FLANGE WATER DRAIN AND COOLING WATER OUTLET
270
FLANGE WATER DRAIN AND COOLING WATER OUTLET
279
FLANGE WATER DRAIN AND COOLING WATER OUTLET
288
GASKET FLANGE TO EXHAUST MANIFOLD
297
NUT LEVER TO SHIFTING SHAFT
306
SCREW PLUG WATER DRAIN
306
SCREW PLUG
315
SEAL RING , ONLY APPLICABLE TO IDENT NO. 662256,681960,681966,681969,681976,682036,682038,682051,682063,682066,682081.
315
SEAL RING VALVE TO VALVE,K 025179
451
CLAMPING PIECE
459
SCREW BRACKET TO TRANSMISSION,D 203092
459
SCREW PRESSURE LIMIT VALVE TO BRACKET M 10X115
459
SCREW , Replaced By: N304017010053
459
SCREW CROSS MEMBER TO FRAME
459
SCREW
459
SCREW BRACKET TO CROSS MEMBER
459
SCREW EXHAUST PIPE TO BRACKET,5 564360
459
SCREW FENDER TO BRACKET, NOT USED
459
SCREW VALVE TO BRACKET, USED WITH HYDRAULIC BRAKE,345.000-008,021,024,025,033 UP TO IDENT NO. FB588185
468
STUD BOLT EXHAUST MANIFOLD TO CYLINDER HEAD M 10X95, 343.919 UP TO ENGINE 080188
468
STUD EXHAUST MANIFOLD TO CYLINDER HEAD M 10X40
468
STUD BOLT BRAKE ANCHOR
468
STUD BOLTM 10X45
468
STUD BOLT P.T.O. TO TRANSMISSION
468
STUD BOLT , Replaced By: N000939010138
468
STUD BOLT BELL HOUSING, FROM IDENT NO. 760272 ALSO INSTALLED ON 500001-599999 10/20 UP TO IDENT NO. 922885 EXCEPT FOR 502153,502155,502162,502192-502195,502198-502204,502207-599999,918576,921744,921785,921797,922052, 922078,922195,922255,922267,922336,922675,922688,922719,922739,922763,922853. ALSO INSTALLED ON 934036,934433,934539,935068,935169,937098. 50/60 UP TO IDENT NO. 922468 ON 96 KW (130 PS/DIN) 50/60 UP TO IDENT NO. 923153 ON 124 KW (168 PS/DIN)
468
STUD BOLTTO 345 250 70 05
468
STUD BOLT EXHAUST MANIFOLD TO CYLINDER HEAD M 10X25
496
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
496
NUT TAIL PIPE TO BRACKET
550
GASKET FLANGE TO EXHAUST MANIFOLD
559
NUT LEVER TO SHIFTING SHAFT
568
SCREW BRACKET TO INTAKE MANIFOLD
595
GASKET PIPE SOCKET TO CYLINDER HEAD, UP TO IDENT NO.5 448662, FROM IDENT NO. 5 448663 SEE UNIT MICROFICHE
595
GASKET HEATING PIPE TO ENGINE
595
GASKET , Replaced By: A3662030380
604
SCREW CONNECTOR TO CYLINDER HEAD M 8X25
613
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
622
HOSE , Replaced By: A3028320223
631
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK
640
SEAL RINGTO 000 553 03 05,000 553 18 05,
649
SCREW PLUG WATER SEPARATOR
658
GASKET COVER TO EXHAUST MANIFOLD
667
OUTLET COOLING WATER OUTLET
676
LOCK WASHER RAIL TO BATTERY SUPPORT
685
NUT LEVER TO SHIFTING SHAFT
694
SEAL RING INJECTION PUMP
703
SCREW PLUG WATER SEPARATOR
712
SEAL RING , ONLY APPLICABLE TO IDENT NO. 662256,681960,681966,681969,681976,682036,682038,682051,682063,682066,682081.
721
SCREW PLUG
721
SCREW PLUG WATER DRAIN
730
HOSE HEAT EXCHANGER
739
LOOM TIE HOSE TO FILLER NECK
748
INTAKE PIPE SOCKET COOLING WATER INLET
784
GASKET , Replaced By: A3522032680
784
GASKET , Replaced By: A3522032480
793
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
802
SCREW PIPE SOCKET TO THERMOSTAT M 8X65
999
VALVE , NO LONGER REQUIRED,INSTAED, ORDER PART NOS. 007604 018101 + 007603 018101
999
FLANGE EXHAUST OUTLET
999
CLAMPING PIECE , 343.919 UP TO ENGINE 080188
999
CLAMPING PIECE
999
SUSPENSION EYE
999
EXHAUST MANIFOLD
999
PIPE SOCKET OUTLET AT CYLINDER HEAD
999
PIPE SOCKET FROM CYLINDER HEAD TO EXHAUST MANIFOLD
999
PIPE SOCKET OUTLET AT CYLINDER HEAD
999
PIPE SOCKET FROM CYLINDER HEAD TO EXHAUST MANIFOLD
999
GASKET , Replaced By: A3522032480
999
LINE ,000155, Replaced By: A3522032901, +002N000931008061, +002N000931008210
999
FLANGE , 352 849318 353 849318 360 109917, Replaced By: A3522034239, +002N000125008418, +002N000931008322
999
GASKET , Replaced By: A3662030380
999
SCREW , Replaced By: N000912008072
