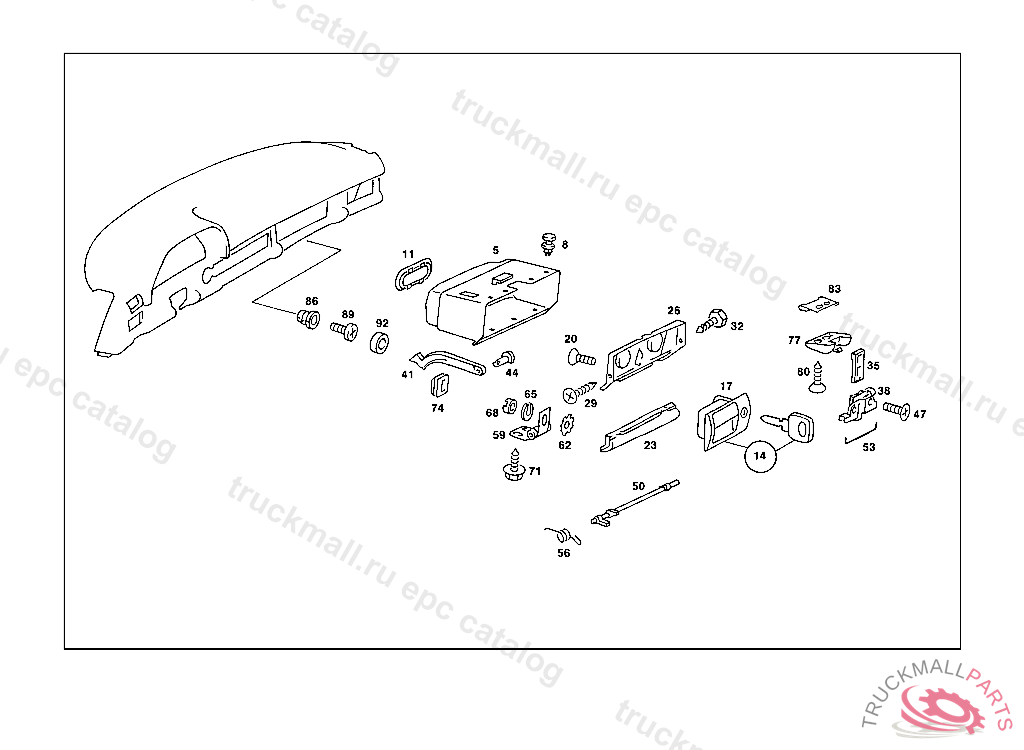

Поз.
Артикул
Описание
5
GLOVE COMPARTMENT
5
GLOVE COMPARTMENT , TO BE ADAPTED DURING ASSEMBLY
8
RIVET
11
COVERING GLOVE COMPARTMENT
14
FASTENER WITH KEY
14
FASTENER WITH KEY
17
FASTENER LESS KEY, STATE LOCK NUMBER WHEN ORDERING
17
FASTENER LESS KEY, STATE LOCK NUMBER WHEN ORDERING
20
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
23
GLOVE COMPARTMENT LID OUTSIDE PART,NO.9045I NO.5070I NO.8310I NO.8320I NO.8411I NO.6093 AI NO.3111I NO.7095I I NO.6121 BI IIIIIIII
23
GLOVE COMPARTMENT LID OUTSIDE PART,NO.9045I NO.5070I NO.8310I NO.8317I NO.8317I NO.6093 AI NO.9045I NO.7102I I NO.6121 BI IIIIIIII
26
COVER INSIDE PART
26
COVER INSIDE PART
29
SHEET METAL SCREW
32
TAPPING SCREW GLOVE COMPARTMENT LID INTERIOR PART B 3.5X16
35
CLAMP GLOVE COMPARTMENT LID INTERIOR PART
38
CLAMP GLOVE COMPARTMENT LID RETAINER GUIDE
38
CLAMP GLOVE COMPARTMENT LID RETAINER GUIDE
41
STOP GLOVE COMPARTMENT LID RETAINER GUIDE
44
PIN LOCK TO GLOVE COMPARTMENT LID
47
SCREW WASHER TO STEERING COLUMN BRACKET M 4X10,4 231945
50
ROD GLOVE COMPARTMENT LID LOCKING MECHANISM
50
ROD GLOVE COMPARTMENT LID LOCKING MECHANISM
53
SPRING GLOVE COMPARTMENT LID RETAINER GUIDE
56
SPRING GLOVE COMPARTMENT LID LOCKING MECHANISM
56
SPRING GLOVE COMPARTMENT LID LOCKING MECHANISM
59
HINGE GLOVE COMPARTMENT LID
62
LOCK HINGE TO GLOVE COMPARTMENT LID,F 078641
65
LOCK WASHER PLUG SOCKET TO REAR CROSS MEMBER
68
NUT
71
SHEET METAL SCREW BRACKET TO PROTECTIVE GRILL
74
GROMMET GLOVE COMPARTMENT LID TO INSTRUMENT PANEL
77
STRIKER GLOVE COMPARTMENT LID
77
STRIKER GLOVE COMPARTMENT LID
80
SHEET METAL SCREW
83
LOCK
86
TREENAIL
89
SCREW
92
LOCKING CAP
